Do
1
DO make sure that the heat sink used for the module is adequate for
the operating conditions, failure to observe this could result in lower
performance, reduced life of the module or permanent damage.
2 DO observe polarity when connecting the modules to the power
source.
3 DO use the cable strain relief on the rear of the unit where possible.
4 DO allow adequate airflow and ventilation when installing the
LED modules.
Don’t
1
DO NOT use outdoors, modules are for indoor use only.
2 DO NOT cover with any insulation material that could restrict any
airflow and cooling.
3 DO NOT use cable crimps or ferrules as this can damage the
cable-clamp connectors.
4 DO NOT allow the unit to be exposed to moisture.
1. The PWMR and PWMRD modules require an additional heat sink for full
power operation, the heat sink cooling should maintain a maximum case tem-
perature ‘Tc’ under the worst case conditions.
2. Thermal performance of third party heat sink designs should be confirmed by
a thermocouple temperature measurement as near to the ‘Tc’ point of the
module case.
3. Heat sink performance required depends upon operating current, maximum
ambient expected and lifetime trade offs, for 50,000 hours lifetime, minimum
heat sink performance, see table :-
Max Ambient °C 20 30 40 50 60
350mA 17.7 15.6 13.5 11.5 9.4
700mA 13.5 11.5 9.4 7.3 5.2
On-board Driver 10.0 8.0 6.0 4.0 2.0
Mounting and Cooling PWMR & PWMRD Units
Heat sink performance in °C/W
Mounting and Cooling MR16 & MR16-LV Units
1. The MR16 and MR16-LV modules are supplied complete with their own approved designed heat sink as a full assembly can be fitted into a
majority of MR16 compatible light fittings.
2. The ready-assembled units are suitable for operation in a 40°C ambient and at 700mA for the constant current unit.
3. Always keep the heat sink fins clear and provide the unit with adequate ventilation.
Inputs Connections
PWMR & MR16
Maximum Input Current 700mA
Maximum Cable Diameter 1.5²mm / 16 AWG
PWMRD & MR16-LV
Maximum Input Voltage 24V DC
Maximum Cable Diameter 1.5mm² / 16 AWG
Environmental PWMR & MR16
Operating Ambient Temp. -20°C to +40°C
Operating Case Temp. Max. -20°C to +85°C at 700mA
-20°C to +105°C at 350mA
Ambient Storage Temp. -40°C to +100°C
MTBF (@ 40°C) 50K Hours
Environmental PWMRD & MR16-LV
Operating Ambient Temp. -20°C to +40°C
Operating Case Temp. Max. -20°C to +75°C
Ambient Storage Temp. -40°C to +100°C
MTBF (@ 40°C) 50K Hours
Mechanical PWMR & PWMRD
Casing ADC10 Aluminium Alloy
Finish Anodised Satin Silver
Connection Cage Clamp Connectors

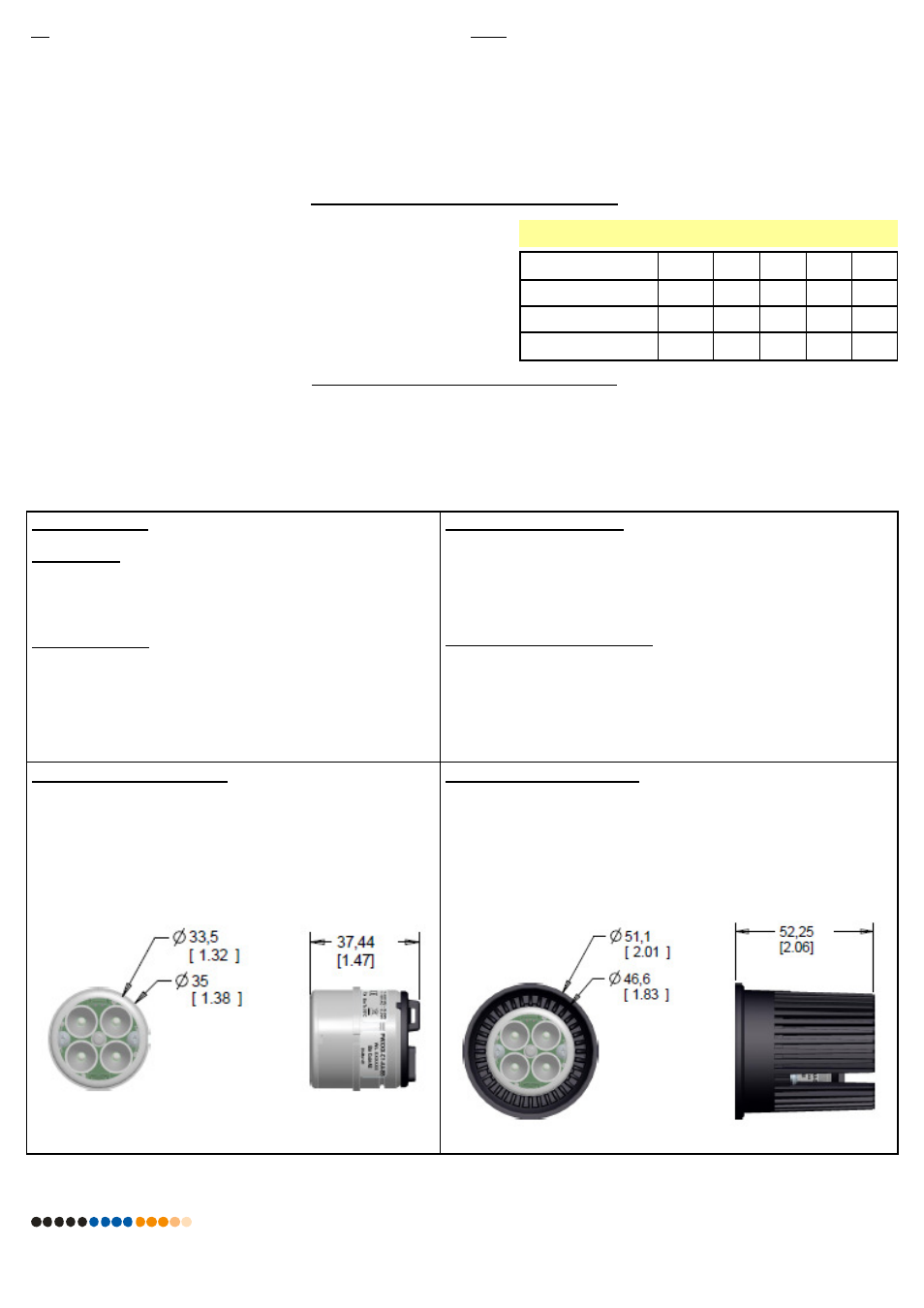

Dimensions mm [inches]
Mechanical MR16 & MR16-LV
Module as PWAR/PWARD.
Heat sink material ADC10 Aluminium Alloy
Heat sink finish Black Anodised
Connection Cage Clamp Connectors
Dimensions mm [inches]
Dialight Europe Ltd
Exning Road - Newmarket - Suffolk - CB8 0AX-UK
Tel: +44 (0) 1638 665161 - Fax: +44 (0)1638 660718 - www.dialight.com Dialight Corparation
1501 Route 34 South - Farmingdale - NJ 08087 - USA
Tele: 1-732-919-3119 - Fax: 1-732-751-5778 - www.dialight.com
A55-PWMR-INST-ISSUE01
