Dialight SafeSite LED Emergency Bulkhead - ATEX/IECEx User Manual
Page 3

Dialight – LED Solutions for Industrial and Hazardous Applications
Tel: +44 (0)1638 665161 – Fax: +44 (0)1638 660718 –
www.dialight.com

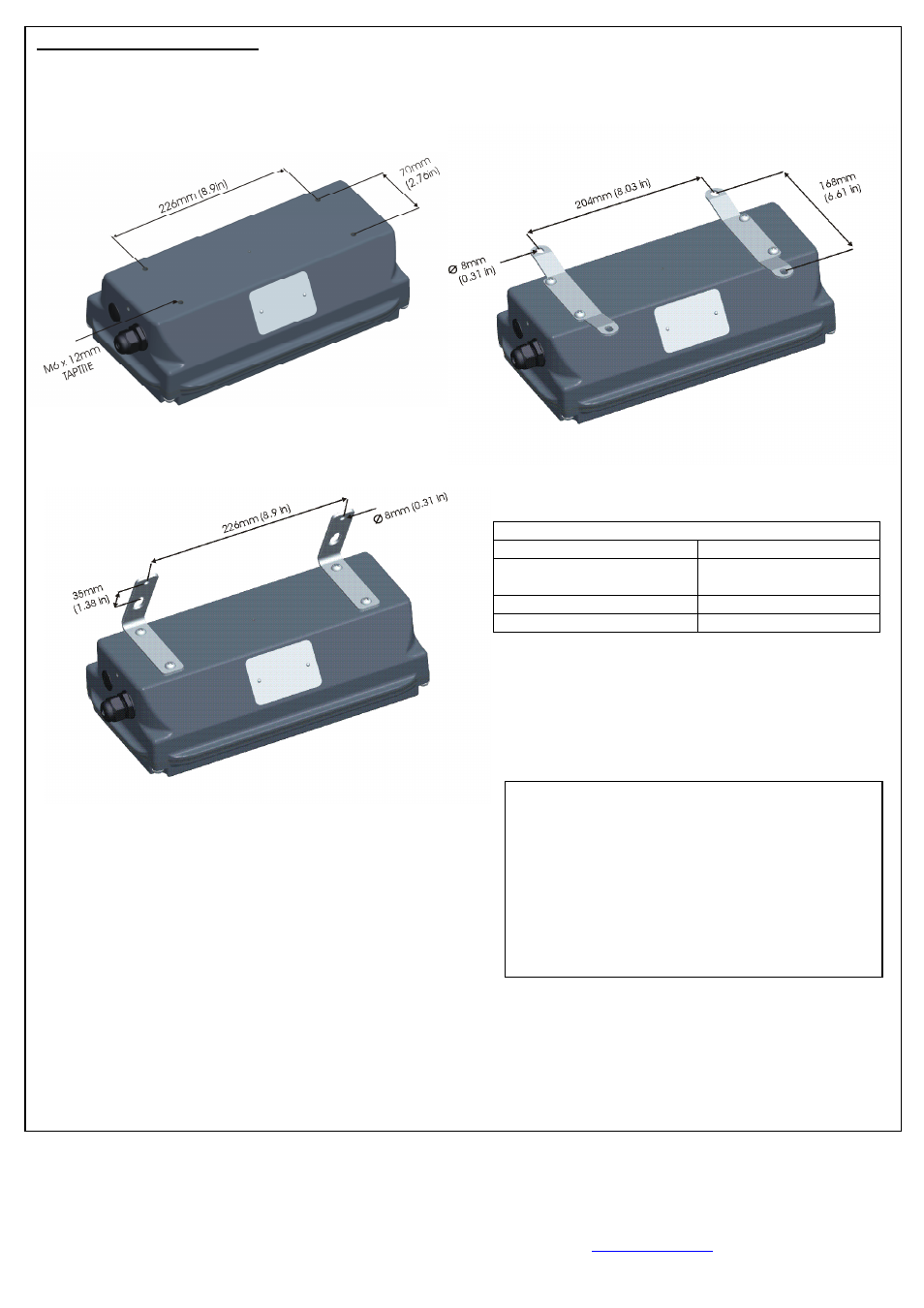

Luminiare Mounting Options:-
Option 2: Flush Bracket Mounting
Option 3: 30° Angle Bracket Mounting
Option 1: Direct Mounting
Tightening Torques
Front assembly to main
body
5.5Nm / 49.0 in lb
Body mounting
8.0Nm / 71.0 in lb
Certified Blanking Plug
2.0Nm / 18.0 in lb
Note:- All TORX fittings are T30
WARNING:- DO NOT OVERTIGHTEN AS THIS MAY
COMPROMISE THE IP RATING.
Contents Supplied with Luminaire:-
1 x WEA Luminiare
4 x TORX M6 x 12mm TAPTITE
1* x ATEX Certified Blanking Plug
1* x Dust Plug (used for shipping purpose only)
Mounting Brackets (optional)
(* Quantity may vary with options ordered)
Electrical Connection Data:-
Terminal capacity
-
0.5 – 4mm
2
(solid , stranded or fine stranded)
Optional ferrule or crimp pin maximum cable size
2.5mm
2
Cable strip length
-
10-11mm
