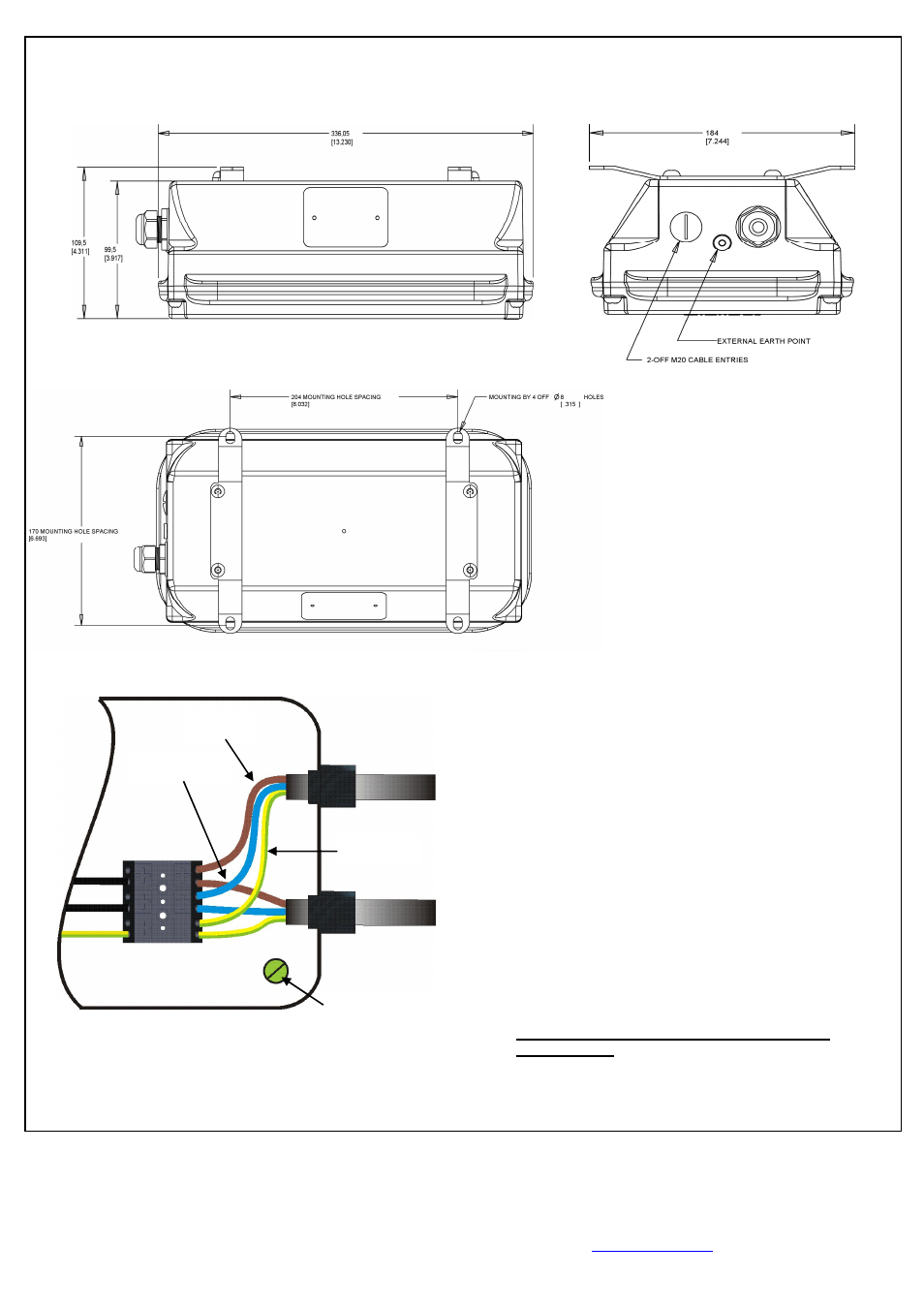

Figure 1. Dimensions in mm [inches] (shown with flush mount bracket)
Electrical Connection:-
The terminal block is suitable for multi-stranded and
single core cables up to a maximum of 4mm
2
, strip length
10mm
The LIVE, NEUTRAL and EARTH connections are
clearly marked on the terminal block.
Single Luminaire Electrical Connections:-
Push down at the ‘cross point’ insert correct cable and
release, ensuring the cable has been securely retained.
Loop Thru Electrical Connections:-
Connect incoming cable as above then connect the
outgoing cable to the associated adjoining connection to
pass to the next luminaire.
ONLY SINGLE CABLES TO BE USED ON EACH
CONNECTION.
L = LIVE / BROWN
N = NEUTRAL /BLUE
E = EARTH / GREEN & YELLOW
EXTERNAL BONDING EARTH ON BODY
LIVE
NEUTRAL
EARTH
OPTIONAL M6
EARTH BOND
POINT
Figure 2. Electrical Connection
