VORTEX
S I LV E R SE R I ES
3
4
1 2
5
6
USER MANUAL
VORTEX SILVER SERIES V8
P.16

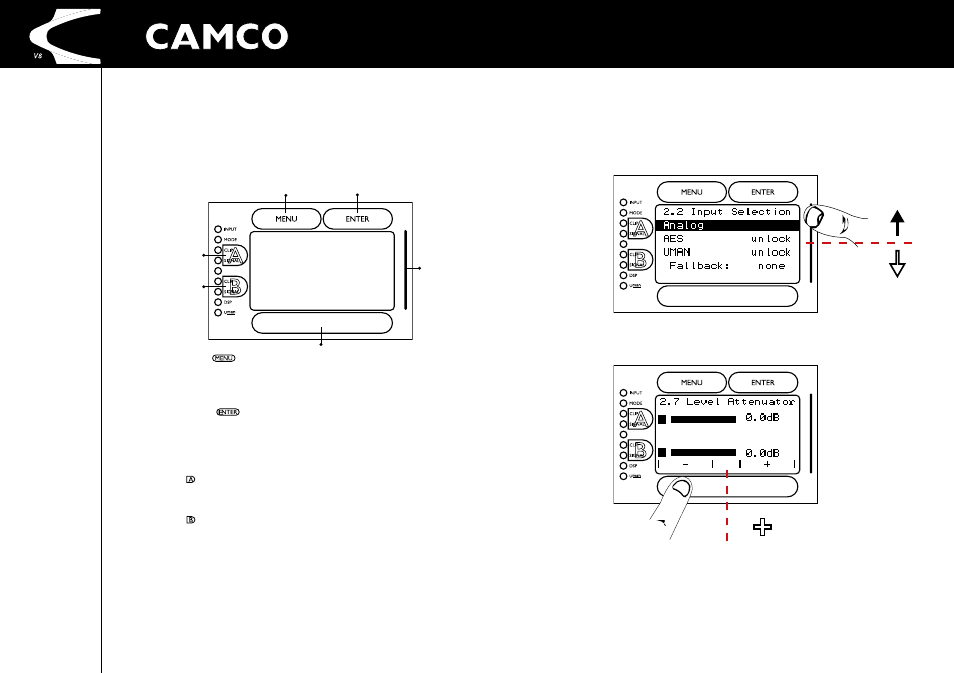

4.1 Screen User Interface
Due to the advanced approach with the absence of any control knobs or
switches, control of all parameters is done via the screen user interface.
4.1.1 Screen User Interface Elements
The screen user interface consists of four buttons and two selection bars.
1 MENU button ( )
– Touch shortly to leave the current sreen without changes
– Shortcut key: touch and hold (≈2 s) to access the Home Menu
2 ENTER button ( )
– Navigate to the selected menu item, activate selected items, confirm
changes
– Shortcut key: touch and hold (≈2 s) to access the Quick Access Menu
3 A button ( )
– Select channel A related parameters
4 B button ( )
– Select channel B related parameters
Note: The A and B buttons must always be touched a little longer than
others before the action takes effect
5 Horizontal Selection Bar (HSB)
– Decrease / increase values (left / right)
6 Vertical Selection Bar (VSB)
– Scrolls through menu items (up / down)
4.1.2 Handle the Selection Bars
– Tip the VSB at the upper half to scroll upwards.
– Tip the VSB at the lower half to scroll downwards.
– Tip the HSB at the left half to decrease values.
– Tip the HSB at the right half to increase values.
