VORTEX

S I LV E R SE R I ES

1

12

13

2

3–11

2

2

CAMCO PRODUKTIONS-

UND VERTRIEBS-GMBH
FISCHPICKE 5

D-57482 WENDEN

GERMANY

15

14

16

17

18

19

21 20

22

USER MANUAL
VORTEX SILVER SERIES V8

P.9

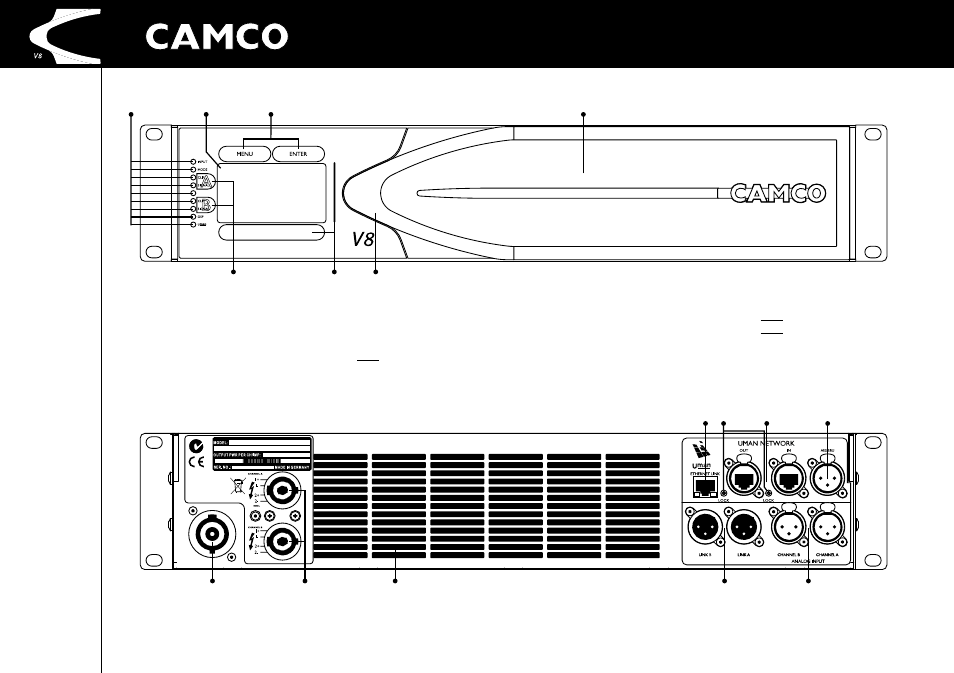

2.3 V8

–

The Front

1 Display

8 Clip LED Channel B

2 Touch Controls

9 Signal LED Channel B

3 Input Selection LED

10 DSP LED

4 Output Mode LED

11 Uman Network Status LED

5 Clip LED Channel A

12 Cooling Air Inlet Vents

6 Signal LED Channel A

13 Removable Air Filter System

7 Device Indicator LED

2.4 V8

–

The Rear

14 AC Power Connector

19 Uman Network Connectors

15 SPEAKON

®

Connectors

20 Uman Network Link LEDs

16 Cooling Air Outlet Vents

21 Ethernet Connector for re-

mote access

17 XLR – Line Inputs
18 XLR – Line Link Outputs

(passive loop-through)

22 Digital AES/EBU XLR Input

2 THE AMPLIFIER
