BRAND Hydraulics 20 SERIES SECTIONAL DIRECTIONAL CONTROL VALVES - Manual (Page 6)

Certificate #02.002.1
ISO 9001:2000 WITH DESIGN
12-09 6
REV. DATE DESCRIPTION
8
7
6
10
9
4
5
1
2 3
11
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 S002 S20 HANDLE ENDCAP
2 1 S007 S20 SEAL RETAINER
3 1 S008 S20 HANDLE ADAPTER
4 2 S024 10-32 1-3/4 S.H.C.S.
5 1 S026 1/8 X 3/4 GRV PIN TYPE C ZINC
6 1 S039S S20 HANDLE
7 1 S047 HANDLE LINK FOR 20HC HANDLE KIT
8 1 S048 5/16-24 x 1/2 B.H.C.S.
9 1 P1268 KNOB
10 1 P1305 5/16-24 NSF JAM NUT
11 1 P1939 BOOT FOR ENCLOSED HANDLE

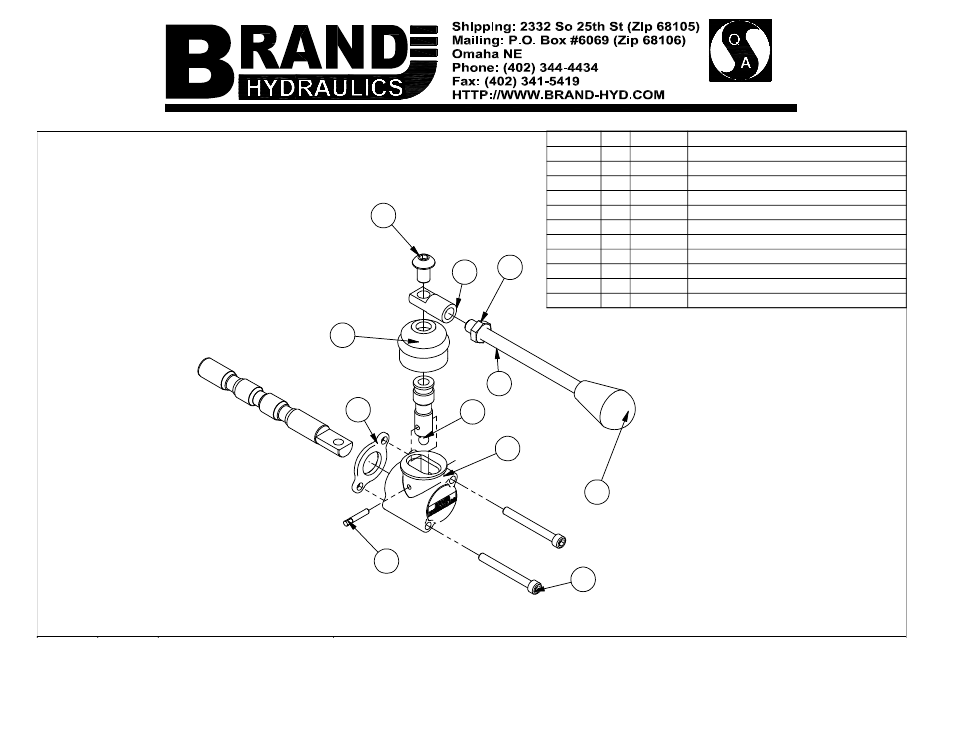

Figure 4: S20 "C" Style Handle Drawing
