BRAND Hydraulics 20 SERIES SECTIONAL DIRECTIONAL CONTROL VALVES - Manual (Page 4)

Certificate #02.002.1
ISO 9001:2000 WITH DESIGN
12-09 4
8
5
6
4
11
12
2
3
14
7
9
13
10
1
ITEM NO. QTY. PART NO. DESCRIPTION
1 2 LV9 STUDDED ROD END 1/4-28
2 1 LV11 3/8-16 HEX NUT
3 3 LV14 1/4-28 HEX NUT
4 1 LV66 ROD END RETAINING PLATE
5 1 LV69 JOYSTICK HANDLE LINK
6 1 LV21 HANDLE, JOYSTICK
7 1 S030 S20 BOOT RETAINING PLATE
8 1 S038 5/16 SPOOL PIVOT
9 1 LV27 JOYSTICK BOOT
10 1 LV40 KNOB, PLASTIC, 3/8-16
11 2 P1985 1/4-28 x 1/2 B.H.C.S.
12 1 S048 5/16-24 x 1/2 B.H.C.S.
13 1 LV68 SPHERICAL ROD END 5/16-24
14 2 S032 10-32 1/2 S.H.C.S.

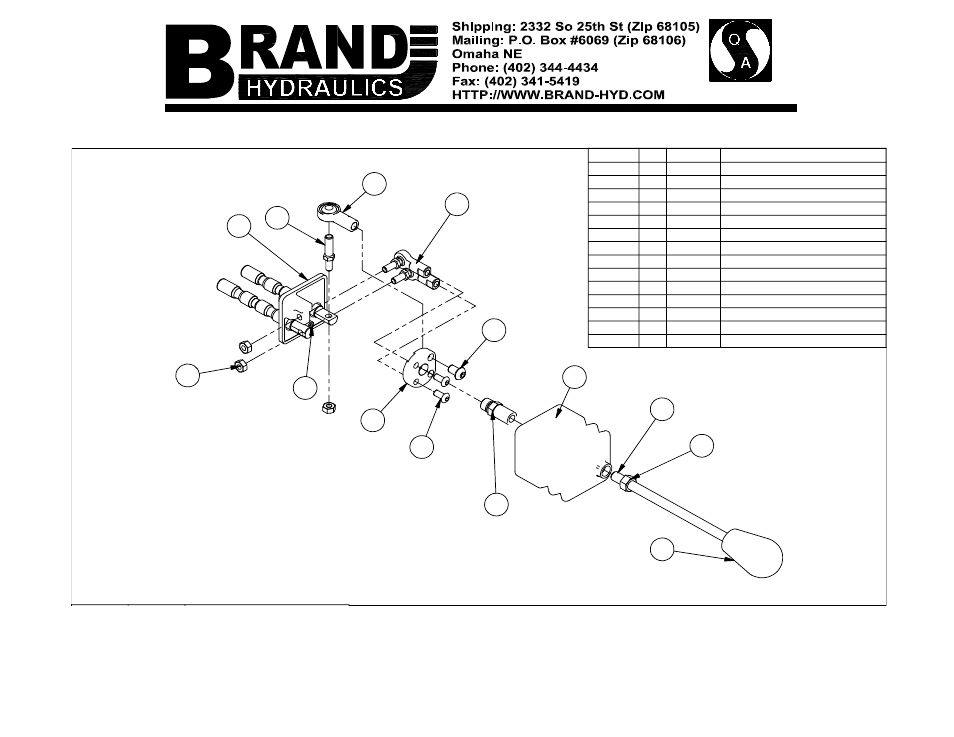

Figure 2: S20 Joystick Assembly Drawing
