Installation sheet for ms6 manual selector valve

B
Certificate #02.002.1
ISO 9001:2000 WITH DESIGN
INSTALLATION SHEET FOR
MS6 MANUAL SELECTOR VALVE
KEEP WITH PRODUCT UNTIL INSTALLED
ADDITIONAL SHEETS MAY BE PRINTED OUT FROM OUR WEBSITE
Mounting Surface – The valve must be mounted on a flat surface. It is important not to bend or twist the casting when
mounting because this may cause the spool to bind.
Can I paint my valve? – Painting valves is okay as long as all the ports are properly plugged and the spool is completely
masked off. Leakage as a result of a painted spool is not covered under warranty.
1.38" [35.0]
3.59" [91.1]
5.75" [146.0]
13.25"
15.43"
1.50" [38.1]
1.80" [45.6]
4.01" [101.7]
3.38
" [85
.8]
5.27" [133.8]
9.25" [23
5
.0]
4.00
" [1
01.6
]
3.49
" [88
.7]
PORT F
PORT E
PORT A
PORT D
4X Ш0.28" [Ш7.1]
PORT B
PORT C

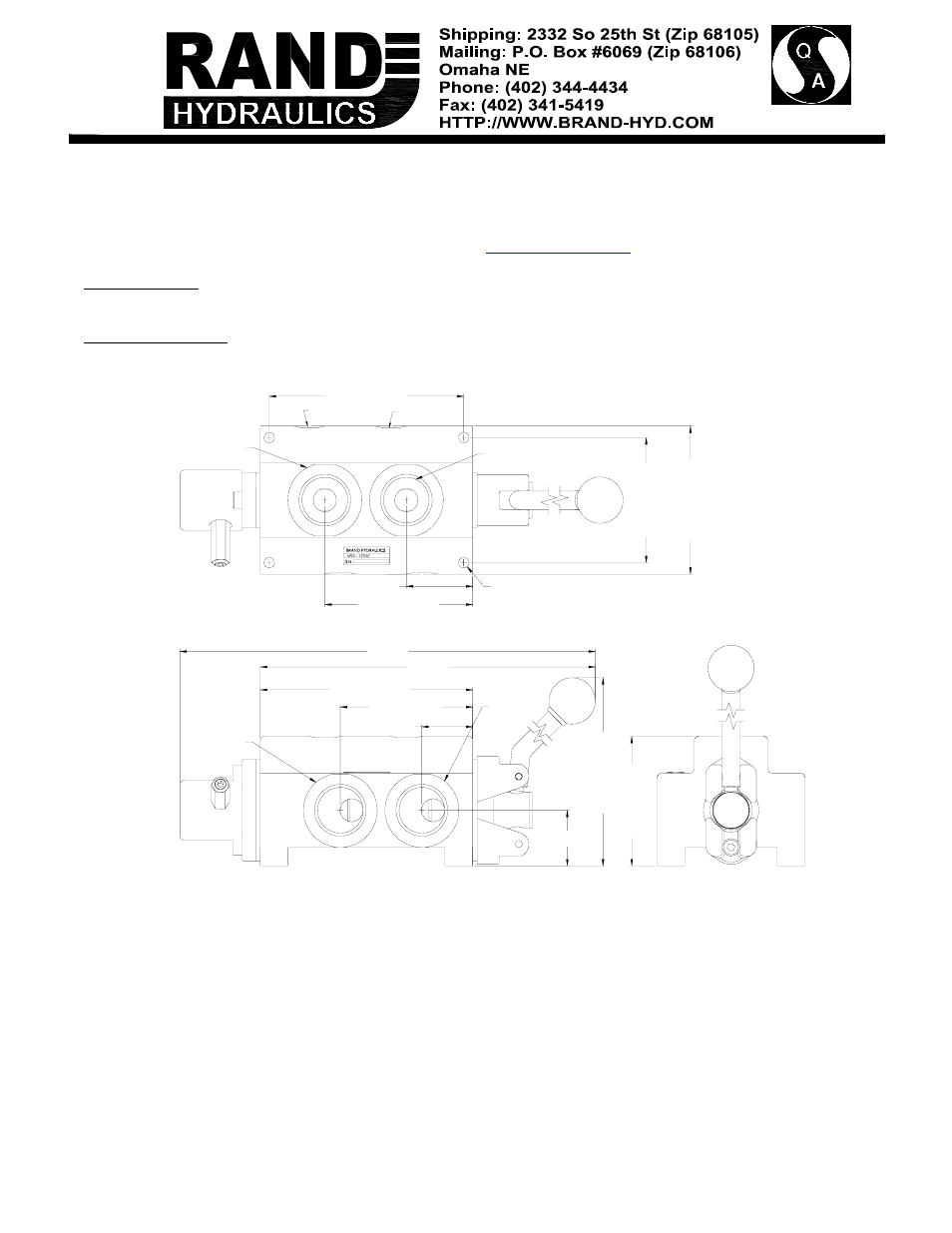

Figure 1: Dimensional Data for MS6 valve in inches & [millimeters].
Revision 02-07
