Carlon Snap-N-Stac Spacers User Manual
Page 2

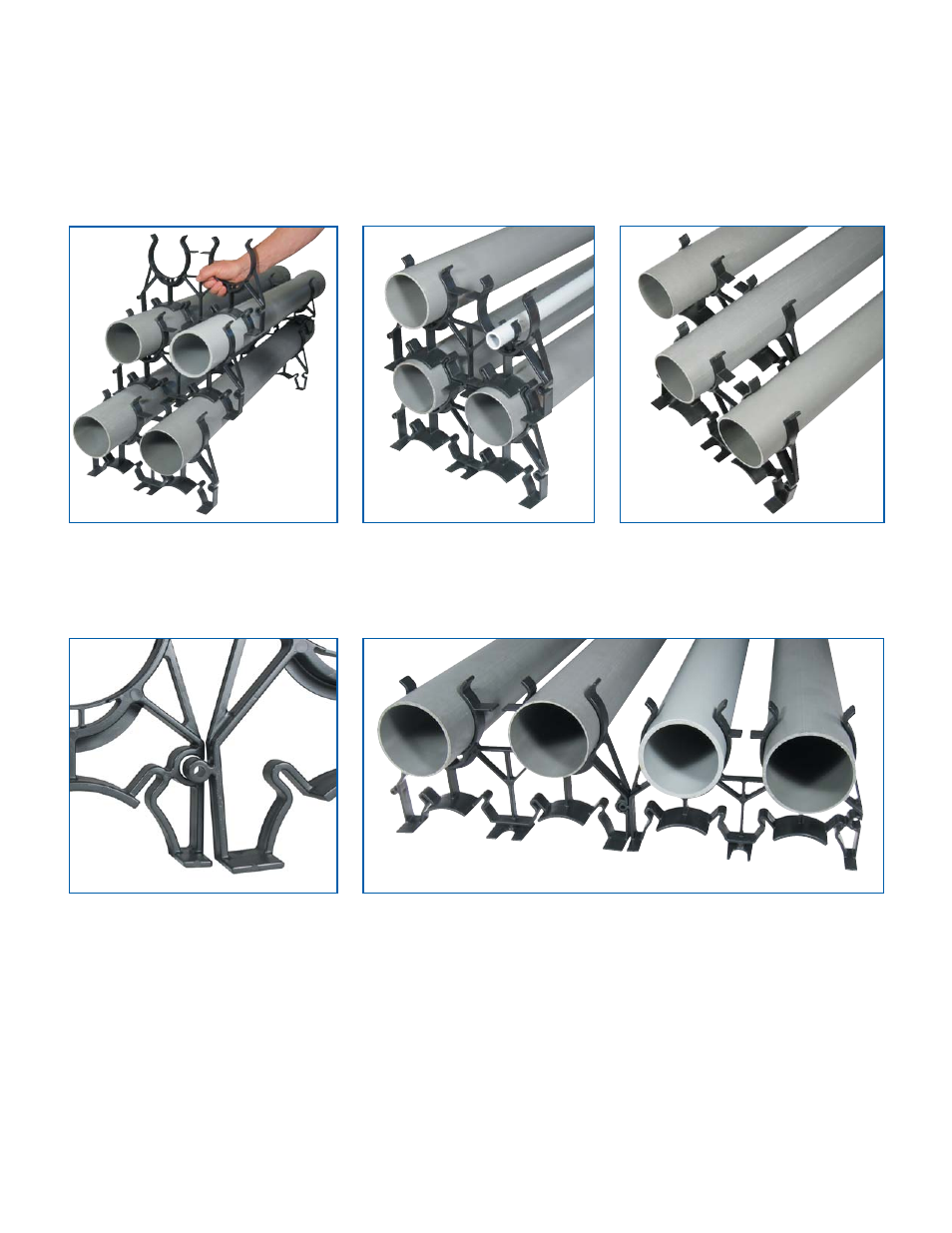

Transition To Various Duct Sizes
Install spacers side-by-side by inserting the male adapter into the female adapter.
Note: All Snap-N-Stac spacers are designed to interlock horizontally, regardless of size.
Vertical Free Standing
If spacers are installed using free standing
method, it is recommended to install the
spacer on the upper row mid-way between
the two spacers on the bottom row.
Reducer
1" & 2" Snap-Loc Reducers allow
fixturing of 1" and 2" conduit
inside of larger spacers.
Modifications
Odd numbers of ducts are
accommodated by staggering
two-way spacers.
ISSPC 5M SP 11/04
© Lamson & Sessions 2004
