Function Selection
Rotary Controller: To set parameter values
8 parameters can be selected and programmed. See instructions
below:
Press the rotary controller knob  to activate and move the cursor to any of the 8
parameters. Each press moves the cursor to the next parameter. The selected
parameter cursor begins to flash when activated. Rotate the rotary controller whilst
flashing to change a parameter value.
Parameter Setting Procedures
To Activate Parameters
Rotate the rotary controller knob clockwise to increase or counterclockwise to decrease
the parameter values.
To Change Parameters
The parameter changes will be saved manually if the rotary controller is pressed after
adjusting. The cursor stops flashing after the rotary controller is pressed to confirm the
change.
To Save Changed Parameters Manually
The parameter changes will be saved automatically if the rotary controller is not
pressed for approximately 5 seconds. The cursor also stops flashing after 5 seconds.
To Save Changed Parameters Automatically

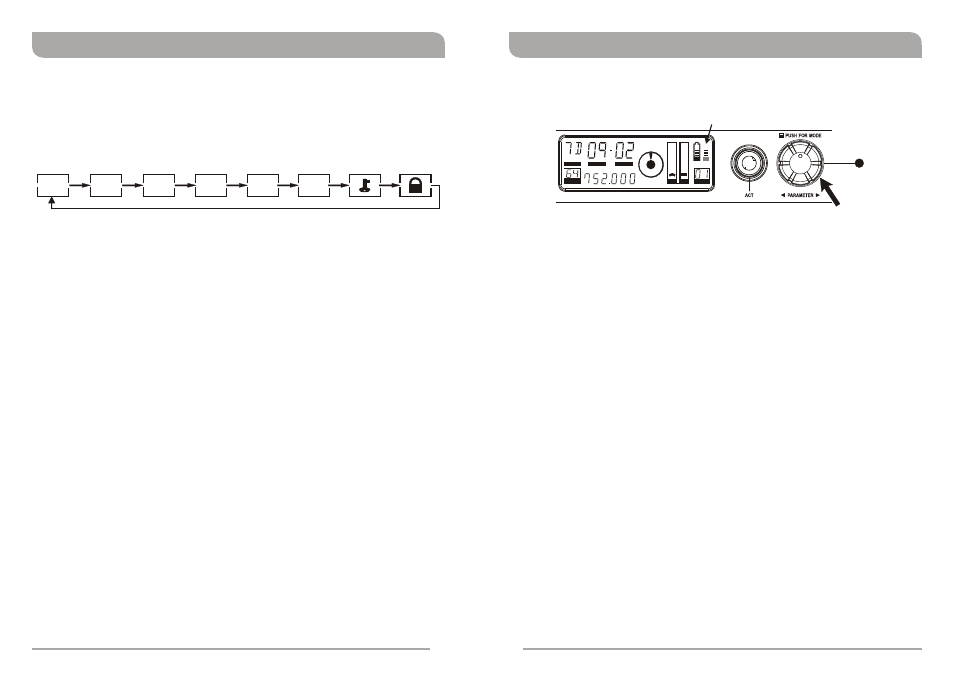

SQ GRP CH EQ ADD ANT
L
SQ: Squelch Setting
Operating Procedure:
1. Press the rotary controller  to activate and move the cursor to the SQ parameter.
When the SQ cursor starts to flash, the squelch level is ready to be set.
2. Rotate the rotary controller clockwise to increase the SQ level; counterclockwise to
decrease the level.
3. Press the rotary controller once to confirm and save the selected SQ level or wait 5
seconds (without touching anything) and the parameter will automatically be saved.
NOTE: The higher the level indicators, the lower the sensitivity - which shortens the
transmission range. The lower the level indicators, the higher the sensitivity
which increases the transmission range. However, when the SQ is set at full
level (5 bars), the "AutoScan" function will be disabled and users can freely
select any group or channel manually.
GRP CH BAND ANT
MHz ACT RF AF
BA
EQ
SQ
ADD
SQ cursor starts flashing
Rotate clockwise to increase the setting by one bar
Rotate counterclockwise to decrease by one bar
