11
④

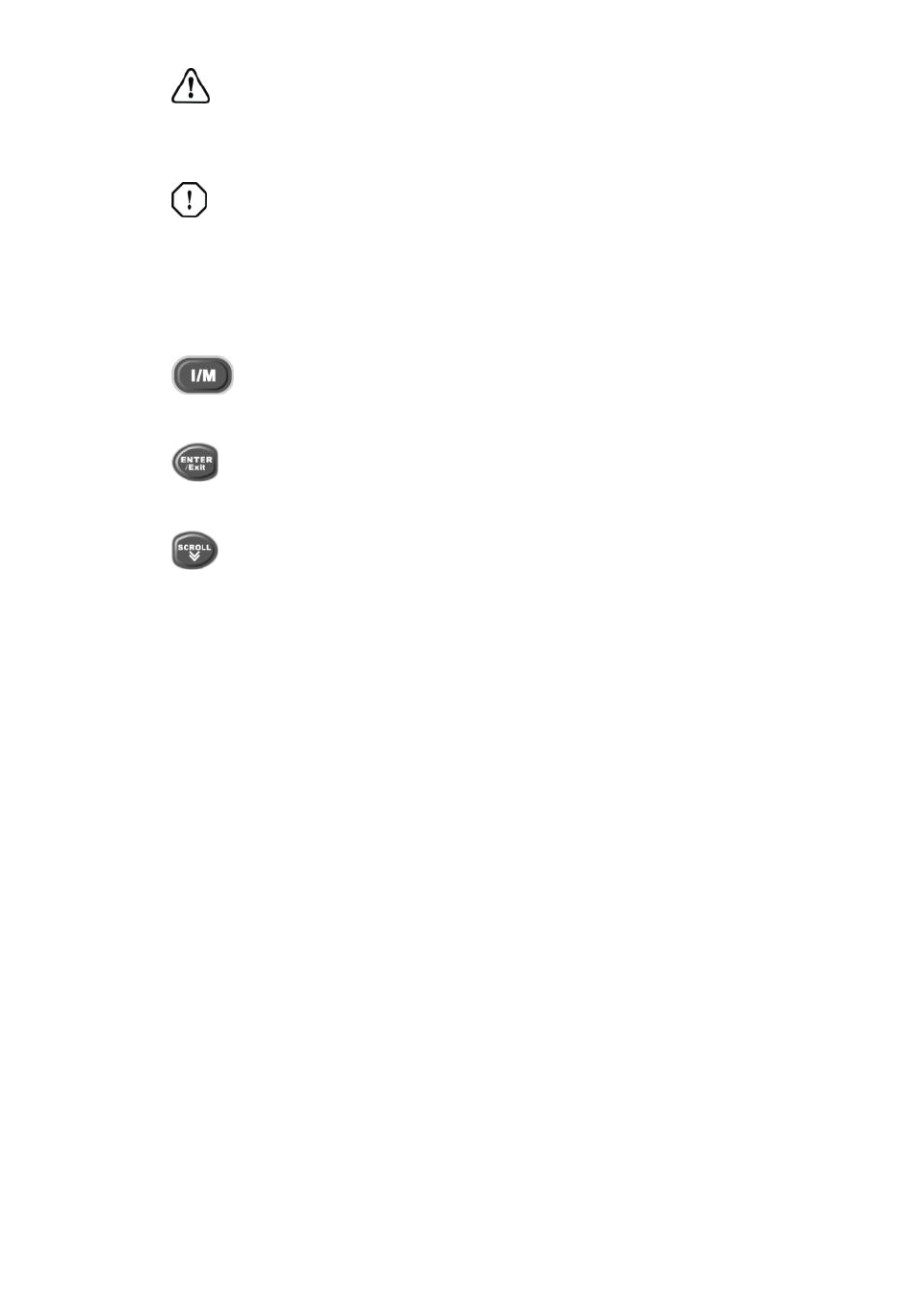

YELLOW LED – Indicates there is a possible problem. A
“Pending” DTC is present and/or some of the vehicle‟s emission
monitors have not run their diagnostic testing.
⑤
RED LED – Indicates there is a problem in one or more of
the vehicle‟s systems. The red LED is also used to show that
DTCs are present. DTCs are shown on the Scan Tool‟s display.
In this case, the MIL lamp on the vehicle‟s instrument panel
will light steady on.
⑥
One-Click I/M Readiness Key – Quick-checks State
Emissions readiness and drive cycle verification.
⑦
ENTER/Exit BUTTON – Confirms a selection (or action)
from a menu. Or returns to previous menu.
⑧
SCROLL BUTTON – Scrolls through menu items.
⑨ USB CONNECTOR – Connects the scan tool to the PC for
upgrading.
3.2 Specifications
1) Display: TFT color display (220 x 176 dpi)
2) Operating Temperature: 0 to 60°C (32 to 140 F°)
3) Storage Temperature: -20 to 70°C (-4 to 158 F°)
4) External Power: 8.0 to 18.0 V power provided via vehicle
battery
5) Dimensions:
Length Width Height
117 mm (4.61”) 72 mm (2.83”) 18 mm (0.71”)
6) NW: 0.18kg (0.39lb), GW: 0.21 kg(0.46lb)
3.3 Accessories Included
1) User’s Manual -- Instructions on tool operations.
