- 9 -
Leveler Power Connections

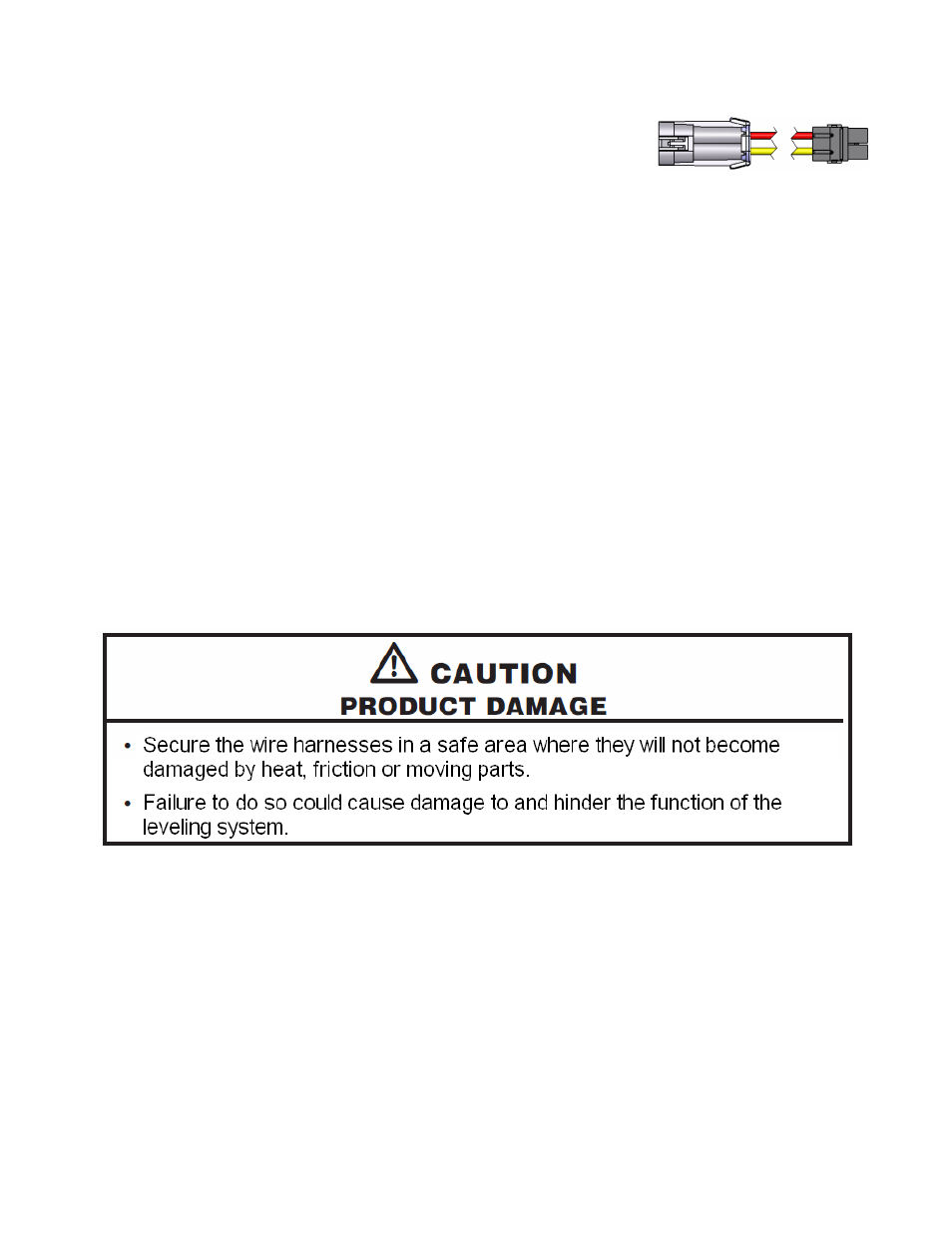

• Use the 10 AWG connectors (red and yellow wire) to connect
the leveler motors to the control Board.
NOTE: Wires cannot run no longer than 20’ to the front, and no
longer than 30’ to the rear.
1. Plug in the four harnesses into the power terminal on each of the corresponding leveler
motors.
2. Run the four harnesses from each of the levelers to the control board compartment.
3. Secure the harnesses underneath the RV.
4. Plug in the harnesses to the control board. Verify that the correct harness is plugged into
the corresponding terminal on the control board.
Power Connections
1. Connect the controller to the 12 VDC battery through the manual reset circuit breaker (see
opposite page). This connection must be made within 18” of the battery or power source.
2. Connect the controller to the battery through 2 AWG wire.
3. Terminate 2 AWG wire power wire to controller through a 2 AWG ¼” ID ring terminal.
4. Attach ring terminal to controller with following components as shown on the opposite page:
#10 conductive washer, #10 lock conductive washer, 10-32 conductive nut.
Note: Torque nut (See page 10) to 5-10 in/lbs. Excessive torque could damage the control
board.
