SYSTEM PROTECTION FEATURES
Nine Cycle Maximum
• The controls will shut off for about 15 minutes any time nine (9) RET ALL commands are
completed in less than 30 minutes.
• When this occurs, all vertical signal lights blink off and on.
• This sequence can be overruled by turning the activation switch OFF and disconnecting power
from the control board for one minute, then reconnect power and turn activation switch ON.
Low Voltage Protection
• The system will not allow any operation to begin unless battery voltage
is above 12.5 VDC. The low voltage LED will flash to indicate this.
• If the voltage falls below 10.0 VDC during any operation, leveler
operation will cease and the low voltage LED will flash.
• Controls will be inoperable until battery voltage climbs above 12.5 VDC,
at which time leveling functions will resume.

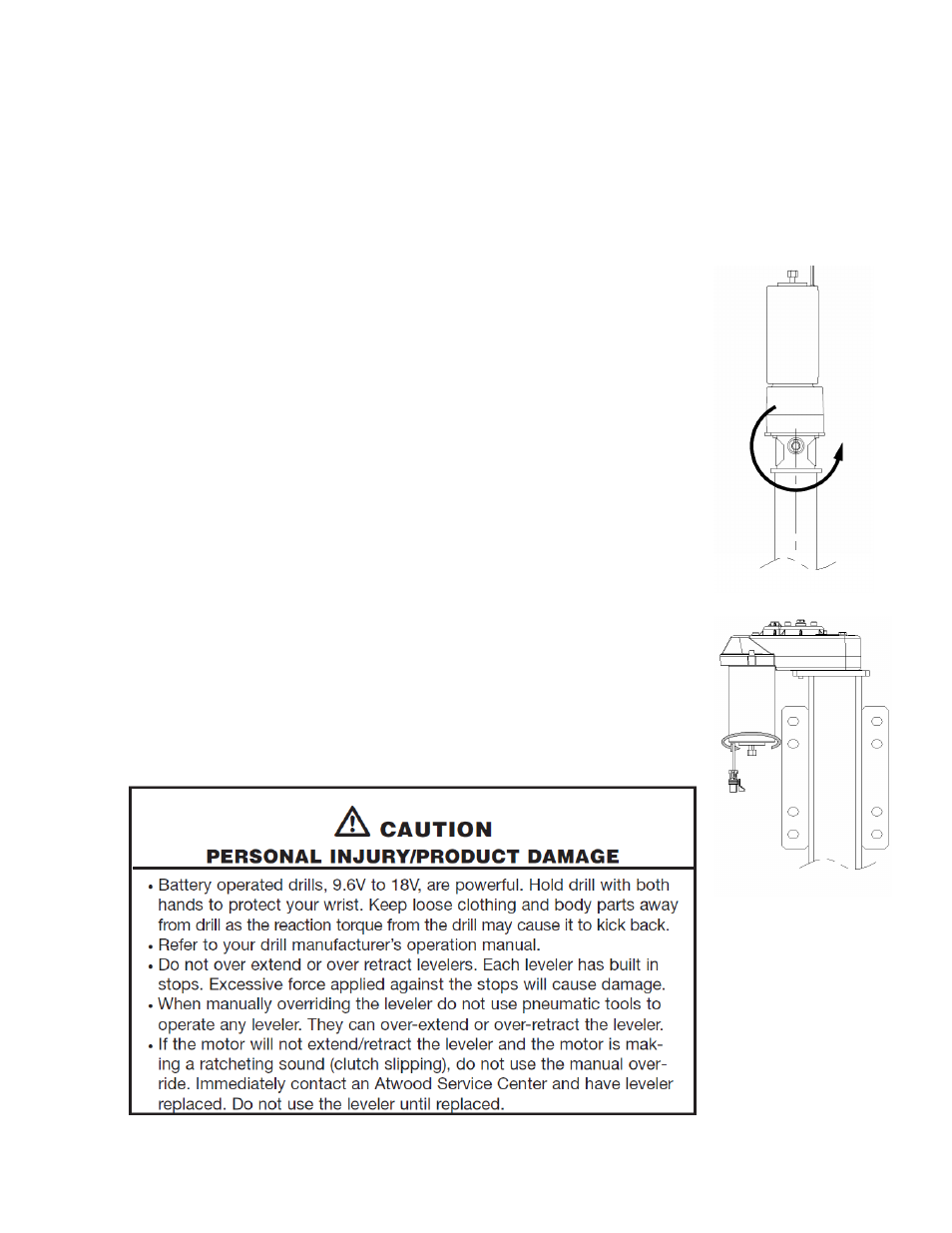

Manual Override Front Landing Gear
• To Manually Extend or Retract a front Leveler, use either the manual
crank handles assembly or the drill bit crank adapter.
• Rotate drive shaft counter clockwise to extend the 5K Direct Drive
leveler.
A. It takes approximately 7 revolutions of drive shaft to extend/retract
leveler 1”.
Manual Override Rear Levelers
• To Manually Extend or Retract a rear Leveler, use a ½” socket on Drive
Nut on the end of the motor.
• Rotate nut counter clockwise (looking from bottom end of nut) to extend
the 7.5K or 10K levelers.
A. It takes approximately 500 revolutions of nut to extend/retract
leveler 1”.
NOTE: If levelers are ever operated in this way, HOME position must be
reset. To do this, refer to the TROUBLESHOOTING section under “RET ALL
DOES NOT FULLY RETRACT LEVELERS”.
