atwood Adjustable Height Couplers User Manual
Adjustable height couplers, Operation, Installation

SAFETY ALERT SYMBOLS
Safety Symbols alerting you to potential personal safety hazards. Obey all safety
messages following these symbols.
ƽ
WARNING
ƽ
CAUTION
avoid possible
avoid possible
injury or death
injury and/or property damage
FOR YOUR SAFETY READ ALL INSTRUCTIONS
BEFORE INSTALLATION AND OPERATION
Installer:
Provide these instructions to the consumer.
Consumer: Read and keep documents available for future reference.
INSTALLATION
ƽ
CAUTION
HAZARDOUS FUMES
• Adequate ventilation must be provided when welding.
WELDING INSTRUCTIONS
•
M
.
I
.
G
.
OR STICK
- Class 4 coupler-Attach with 5/32˝ fillet weld minimum.
•
M
.
I
.
G
.
WELDING
- Use A.W.S. ER 70S-3 or 6 wire or equivalent with a
diameter of .035 - .045. The recommended shielding gas mixture is
75% - 95% Argon & 25% - 5% CO
2
.
•
STICK WELDING
- Use E6011 A.W.S. welding rod or equivalent with a diameter
are as follows: 5/32” electrode set power between 140-160 Amps DC.
ƽ
CAUTION
PRODUCT DAMAGE
• Coupler latching mechanism must operate freely after welding
installation see
FIG
2 & 3.
• Do not attach ground strap to latch during welding.
ADJUSTABLE COUPLERS -
Part No. 80281
WELD ON BRACKET
:
1.
POSITIONING BRACKET
- Center bracket side to side on trailer tongue
with bracket height adjusted to meet your towing needs
FIG
5. Allow
adequate ground clearance and provide position options for
coupler. Trailer must travel in a level, horizontal to ground position.
This will provide optimal coupler axle loading and range of motion.
Support mounting bracket sides with C-clamps or bolts before
welding to prevent distortion of brackets during welding process.
Inside dimension of bracket must be 3.00˝±.03˝ after welding
FIG
4-A.
2. Follow
WELDING INSTRUCTIONS
.
3. Weld along top, bottom and sides of bracket where it meets trailer
tongue. Add gussets (5/16˝ thick steel plate) equal in height to
bracket as shown in
FIG
1 to fully support bracket. Weld along all
joint edges of gusset using
WELDING INSTRUCTIONS
.
BOLT APPLICATION
1. Fasten coupler to bracket with two 5/8˝ diameter bolts S.A.E. grade
8 and lock nuts or nuts and lock washers.
2. Torque bolts to 200-230 ft. lbs. (dry).
3. Retorque bolts after first two hours of service, then continue to
follow maintenance schedule.
OPERATION
ƽ
CAUTION
PRODUCT DAMAGE
• Use caution when backing or towing vehicle for hook-up, damage to
coupler may result.
• Avoid sharp turns when towing or backing. Jack-knifing could bend
coupler or create extreme stress or fracture.
ƽ
WARNING
PERSONAL INJURY
• Safe towing practice requires the proper use of safety chains used in
accordance with instructions provided by the trailer manufacturer.
• Check that the ball has been completely inserted into the coupler ball
socket and the ball clamp (inside the coupler) is closed around the
underside of the tow ball and the handle is in the closed position.
• The loaded weight of the trailer must never exceed the least capacity
marked on the coupler, tow ball, hitch, trailer or vehicle.
• Check coupler, hitch and ball for damage or wear before each use. Assure
all parts operate freely. Replace any component if worn or damaged.
• Failure to follow warnings and instructions could result in separation
of tow vehicle and trailer which can result in death, personal injury
and property damage.
ƽ
WARNING
PERSONAL INJURY
• For proper tow vehicle and trailer hookup, towing performance and to
prevent damage to hitch and trailer coupling, the tow vehicle and trailer
are to be level with respect to flat ground after hitching up. If your trailer
is not level, equipment is available to raise or lower the hitch ball.
LATCHING INSTRUCTIONS
ƽ
WARNING
PERSONAL INJURY
• Always open latch handle before inserting ball.
1. Insert finger in latch hole. Pull out and up on latch
FIG
2. Rotate latch 90°
from original position.
FIG
3.
2. Place coupler on 2-5/16˝ ball of same or greater capacity than trailer GVW.
3. When ball is completely nested in ball socket, push forward on latch
FIG
3.
Be sure that the nib
FIG
2-A on the latch is secured in slot
FIG
2-B.
4. Extend jack to ground and lift car/trailer combination 2˝-4˝ to insure coupler
is securely attached to tow ball. Retract jack completely before towing.
5. Insert padlock or bolt through lock hole
FIG
3-A in latch for theft protection.
Note: These couplers are not adjustable for ball size.
MAINTENANCE
1. Lubricate ball socket and ball clamp with wheel bearing grease.
Clean and lubricate monthly.
2. Check towing hitch, ball and coupler for signs of wear before each
trip. Replace coupler if damaged or worn.
3. Lubricate moving or sliding parts monthly with S.A.E. 30 weight oil.
4. Should problems or questions arise, contact your dealer, the trailer
manufacturer or Atwood Service Department 574-264-2131. For
Warranty information contact Atwood before having any work done.
9
LITERATURE NUMBER
MPD 80282
ADJUSTABLE HEIGHT
COUPLERS
ENGLISH, FRANÇAIS
(et Canada)
•Installation •Operation •Maintenance
Effective 11/21/07

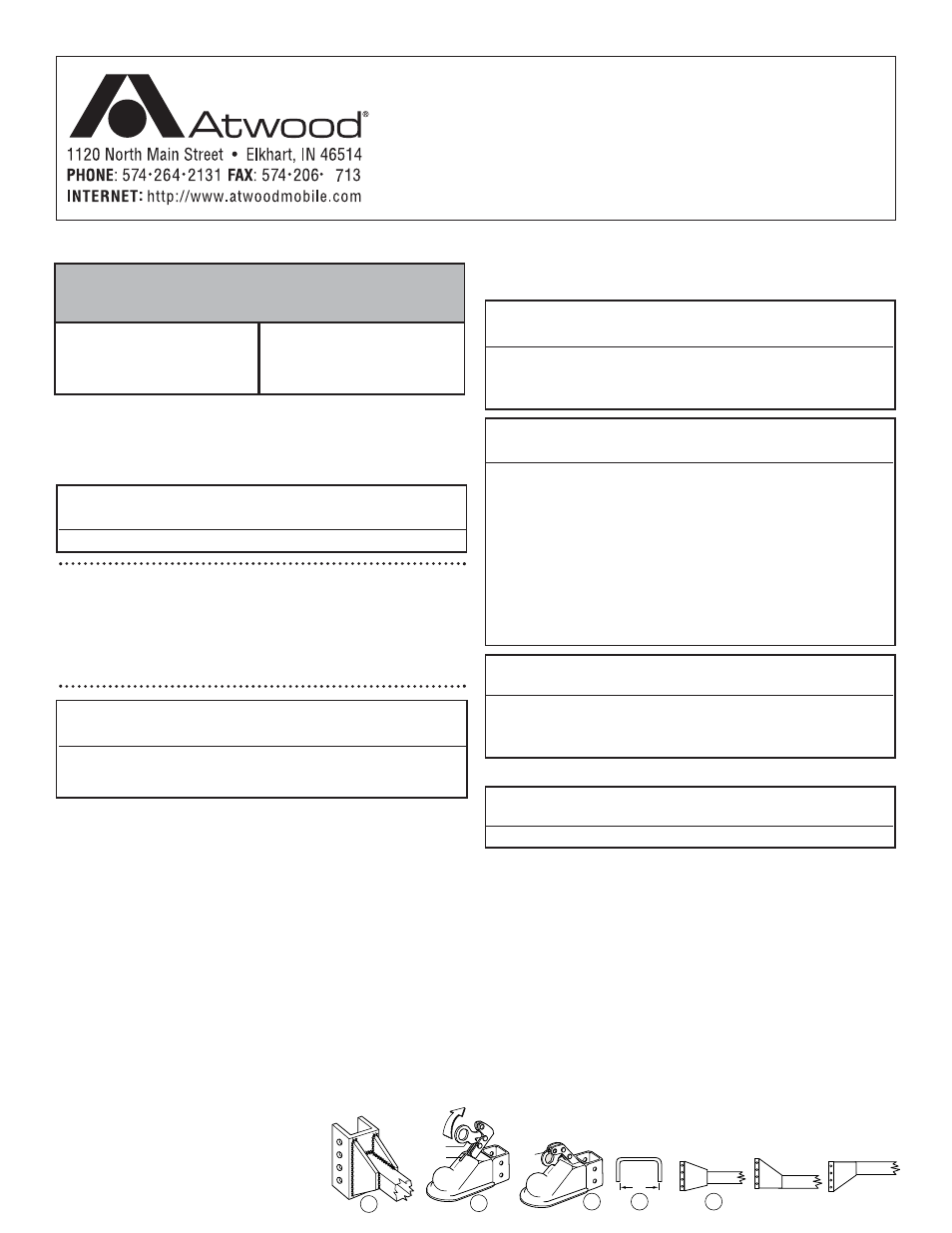

A
A
B
A
1
2
3
4
5
