- 11 -

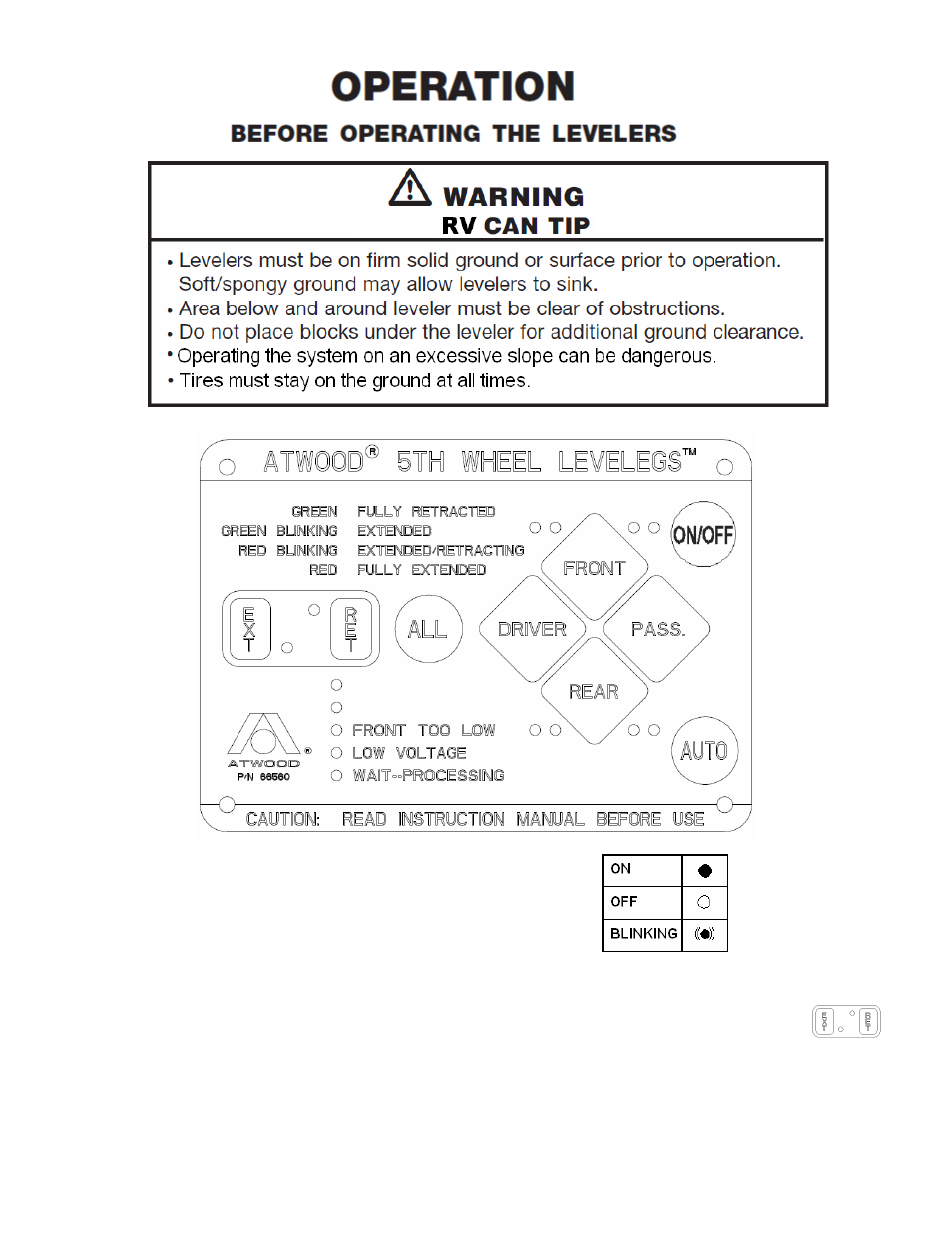

LEDs in all images will be represented in this format:
Before operating the levelers, you must do the following:
1. Park the RV on as level a site as possible. Check for rocks, holes, or other obstructions. Warn
all persons to stand clear of RV.
NOTE: The system will recognize excessive slope from front to rear only (greater than
4°). A slope of 4-6° will be identified by flashing the yellow EXT and RET LEDs on the
keypad slowly. A slope greater than 6° will be identified by flashing the EXT and RET LEDs quickly.
The AUTO feature will not function if the slope is greater than 6°.
2. It is recommended not to extend any slide outs until RV is level.
