- 14 -

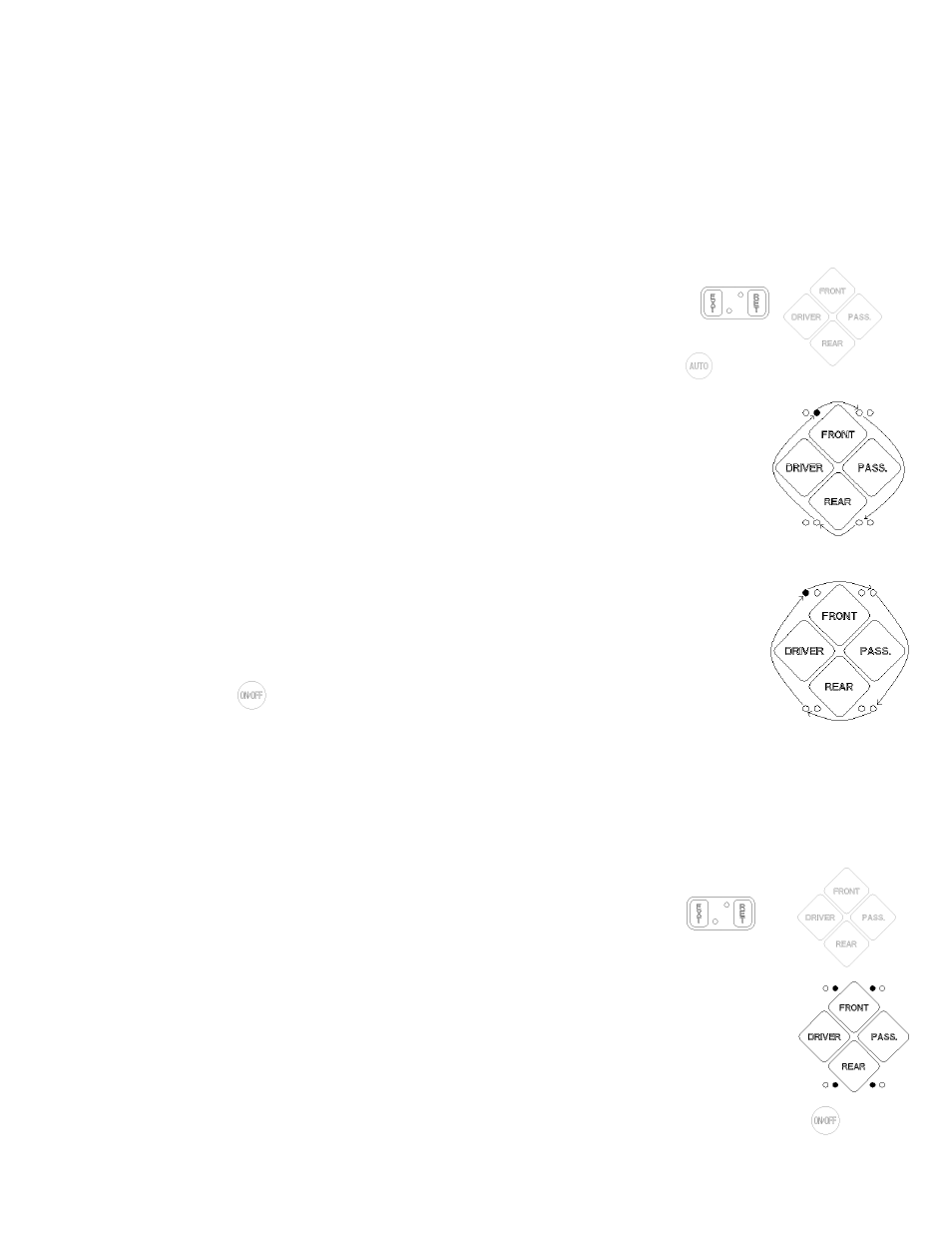

UNHOOKING FROM TOW VEHICLE AND LEVELING RV
NOTE: If any button is pressed during an auto sequence, the levelers will stop. The controller will
reenter most functions after an emergency stop. If not, retract all levelers and begin function from that
point.
If the Auto position is already set or programmed,
1. Switch Activation Switch to ON and Press the ON/OFF button to activate the system.
2. Simultaneous press EXT and ALL and FRONT buttons. This will extend the front landing gear
to be in contact with the ground. LEDs for front levelers will be blinking green to
indicate landing gear is down.
3. Manually set preferred hitch detachment position by pressing EXT
and FRONT or RET and FRONT as needed.
4. Detach trailer lights, harness and hitch using manufacturer’s suggested
procedure. Move tow vehicle to safe position clear of RV.
5. Press AUTO to extend rear levelers and auto-position RV.
6. Process will take 2-3 minutes and wait LED will be lit. All leveler LEDs will
blink green when process complete.
7. The system will check each Leveler to insure its foot is in contact with ground.
During this time, the control board “WAIT” LED will be on.
8. The system will signal a successful or unsuccessful “auto position” sequence
by:
Successful: The four green leveler position LEDs will illuminate in a
rotating circle for 5 seconds before the keypad shuts off completely.
Unsuccessful: The four red leveler position LEDs will illuminate in a
rotating circle for 5 minutes or until the ON/OFF button is pressed. If this
occurs, see troubleshooting section under “AUTO POSITION DOES NOT
LEVEL THE RV“.
9. Press the ON/OFF button to turn key pad off and switch the Activation
Switch OFF.
NOTE: Do not move around the inside of the RV while levelers are operating. This
will reduce system effectiveness.
HOOKING UP TO TOW VEHICLE/ RETRACTION OF LEVELERS
If the home position has been programmed and levelers are on the ground;
1. Switch Activation Switch to ON and Press the ON/OFF button to activate the system.
2. If the rear levelers are retracted skip to step 3. Press RET and ALL and REAR to auto retract
the rear levelers. LEDs for rear levelers will go to solid green to indicate levelers
are fully retracted. A quick visual inspection should be done to
check leveler ground clearance is proper for safe towing.
3. Press and hold EXT and FRONT or RET and FRONT to position
king-pin/gooseneck to proper hitch connection height.
4. Follow hitch manufacturer’s hook-up procedure to tow vehicle and connect trailer
lights harness.
5. Once RV is safely connected to tow vehicle, press RET and ALL and FRONT to
auto retract landing gear. LEDs will go to solid green to indicate landing gear is
fully retracted. A quick visual check of landing gear ground clearance should be
done to insure safe towing.
6. Press the ON/OFF button to turn key pad off and switch the Activation Switch OFF.
