- 6 -
Controller Location

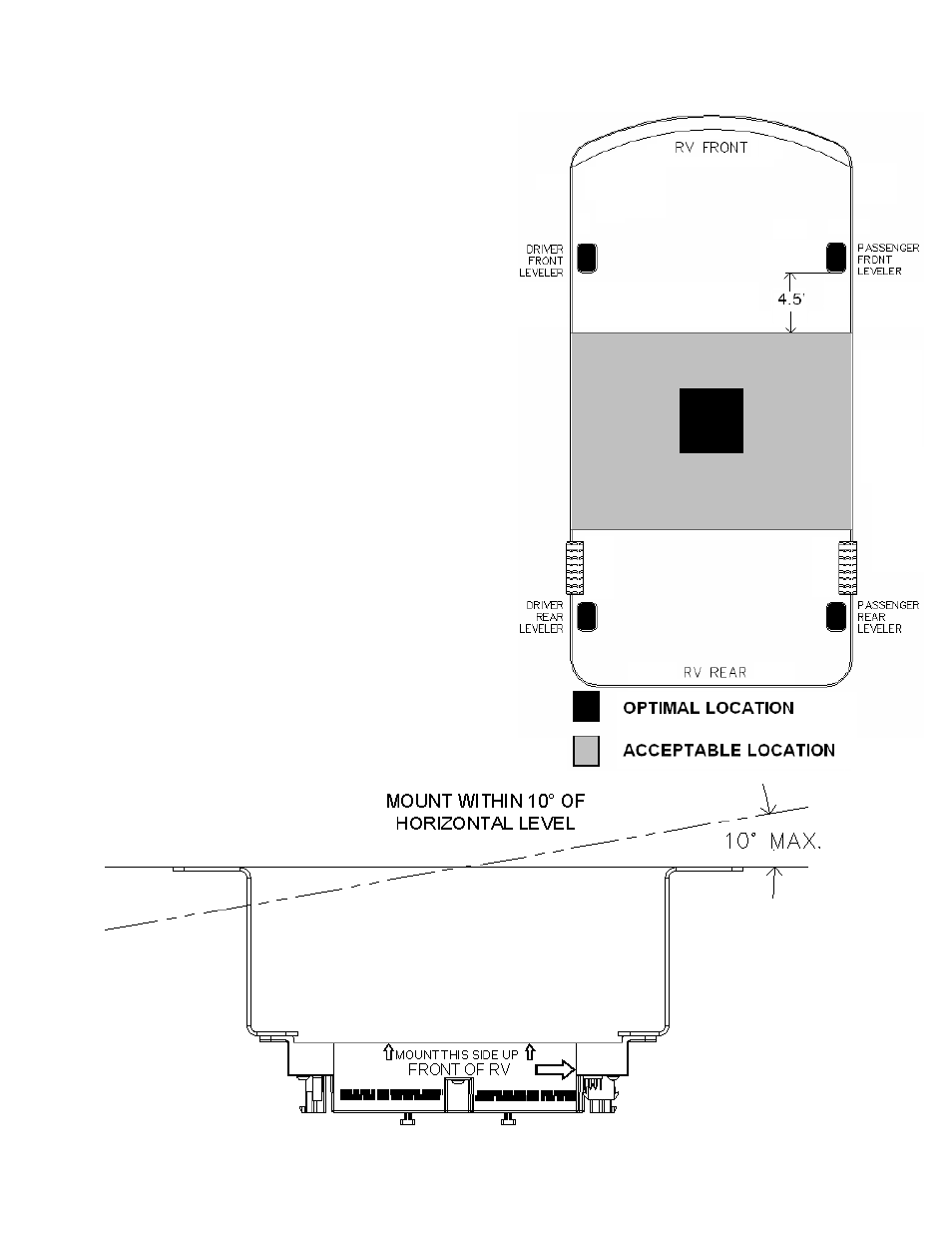

1. To optimize the effectiveness of the Controller,
it should be mounted as close to the center of
the RV as possible. There is an optimal zone
and an acceptable zone to install the Controller
as shown to the right. Any other place will
compromise the operation of the Controller.
2. Install Controller in a clean, dry interior area
protected from moisture. Use corner holes of
unit to fasten base horizontally to mounting
surface, using appropriate hardware for
surface.
3. Install the AUTO POSITION Controller so the
forward arrow points toward the front of the
RV. The controller must be hung upside down
to match the arrows on the side of the
Controller, within 10° of horizontal level
(parallel with mounting surface) as shown
below. Sufficient space below the board must
be provided for the wires to be connected.
NOTE: Any control board installed outside the
acceptable area (defined to the right) will
void warranty
