LITERATURE NUMBER
MPD 61050
LEVELEGS ™ SYSTEM
ADAPTER KIT
ENGLISH,
FRANÇAIS
(et Canada) Effective 12/12/07
24 HOUR TROUBLESHOOTING HELP CALL - 800-884-7012
Provided by Coach Net ® , the largest RV owner support company in North America.
•Installation •Operation •Maintenance
SAFETY ALERT SYMBOLS
Safety Symbols alerting you to potential personal safety hazards. Obey all safety
messages following these symbols.
ƽ
WARNING
ƽ
CAUTION
avoid possible avoid possible
injury or death injury and/or property damage
FOR YOUR SAFETY READ ALL INSTRUCTIONS
BEFORE INSTALLATION AND OPERATION
Installer: Provide these instructions to the consumer.
Consumer: Keep documents for future reference.
Atwood Levelegs™ Levelers are intended for use on recreation vehicle
motorhomes and trailers.
ƽ
WARNING
VEHICLE CAN MOVE OR COLLAPSE
• Never exceed the rated capacity of the leveler as stated on its label.
• Levelers are not designed to be used as jacks. Do not use levelers to
lift the vehicle during tire changes, axle work or other servicing. The
tires must stay on the ground.
INSTALLATION
LEVELER LEG
1. Prior to installation, retract the levelers so the foot pads are within
1/2˝ to 1˝ from the end of the outer housing ( FIG 1-A).
2. Remove Round Tube Leveleg.
3. Attach new Frame Bracket ( FIG 2-A) to existing location on frame
( FIG 2-B), using hardware kit provided. Depending on the model use
four (4) to six (6) each 1/2 - 13 Grade 5 bolts and nuts and 12 of the
1/2˝ Type A washer.
4. Position leveler vertically against frame so base of foot has 8-9˝
minimum ground clearance when vehicle is loaded to its maximum
GVWR (
FIG 1-B).
5. Fit the Leveleg bracket ( FIG 2-C) around the Leveleg, ( FIG 2-D)
engaging one tab in the slot of the bracket ( FIG 2) and the other tab
( FIG 2-E & F) below the bracket ( FIG 2). Bracket may be rotated 180˚ for
more/less ground clearance and either set of mounting holes may be
used. Attach the Leveleg bracket to the frame bracket with 1/2˝ - 13
grade 5 bolts and 1/2˝ flat washers on the Leveleg bracket and a 1/2˝
flat washer, 1/2˝ locking washer and 1/2˝ - 13 grade 5 nut. To install
on 5th wheel trailers, refer to MPD 71125.
6. Lubricate the bolts and torque to 65 ft-lbs. Insure the top two and
bottom two holes in leveler brackets have bolts in them.
ELECTRICAL CONNECTIONS
1. Check the existing old round tube leveler.
ONE (1) PLUG ON WIRES COMING FROM THE MOTOR - Wiring Harness supplied
in this kit is not required.
TWO (2) PLUGS ON WIRES COMING FROM THE MOTOR - Find the wires from the
motorhome signal wire harness that were attached to the round
tube leveler. Connect those two wires to the two plugs from the
‘Y’ wire harness (
FIG 3-A).

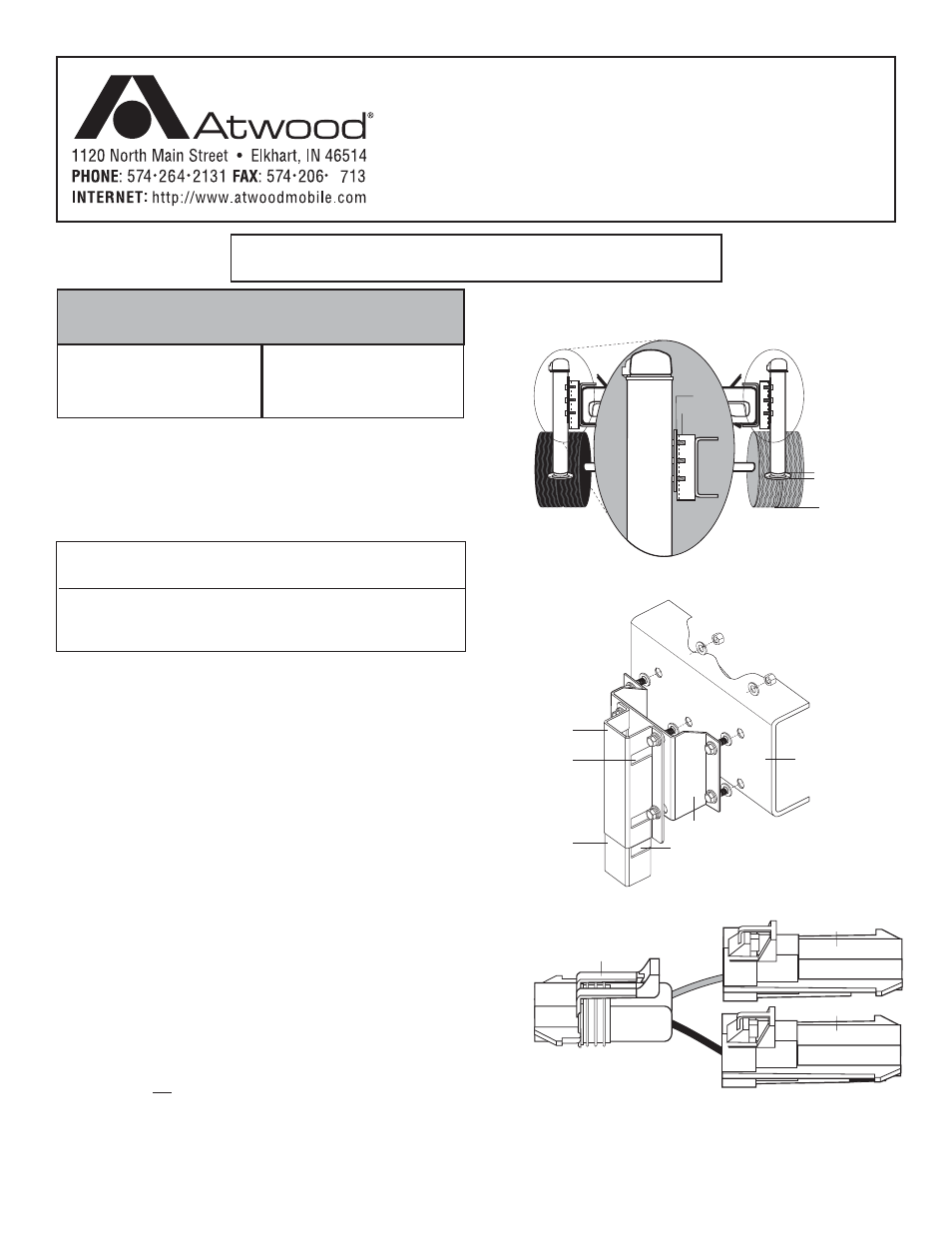

Figure 1
A
B
C
D
B
Figure 2
Figure 3
A
A
F
G
H
K
E
J
