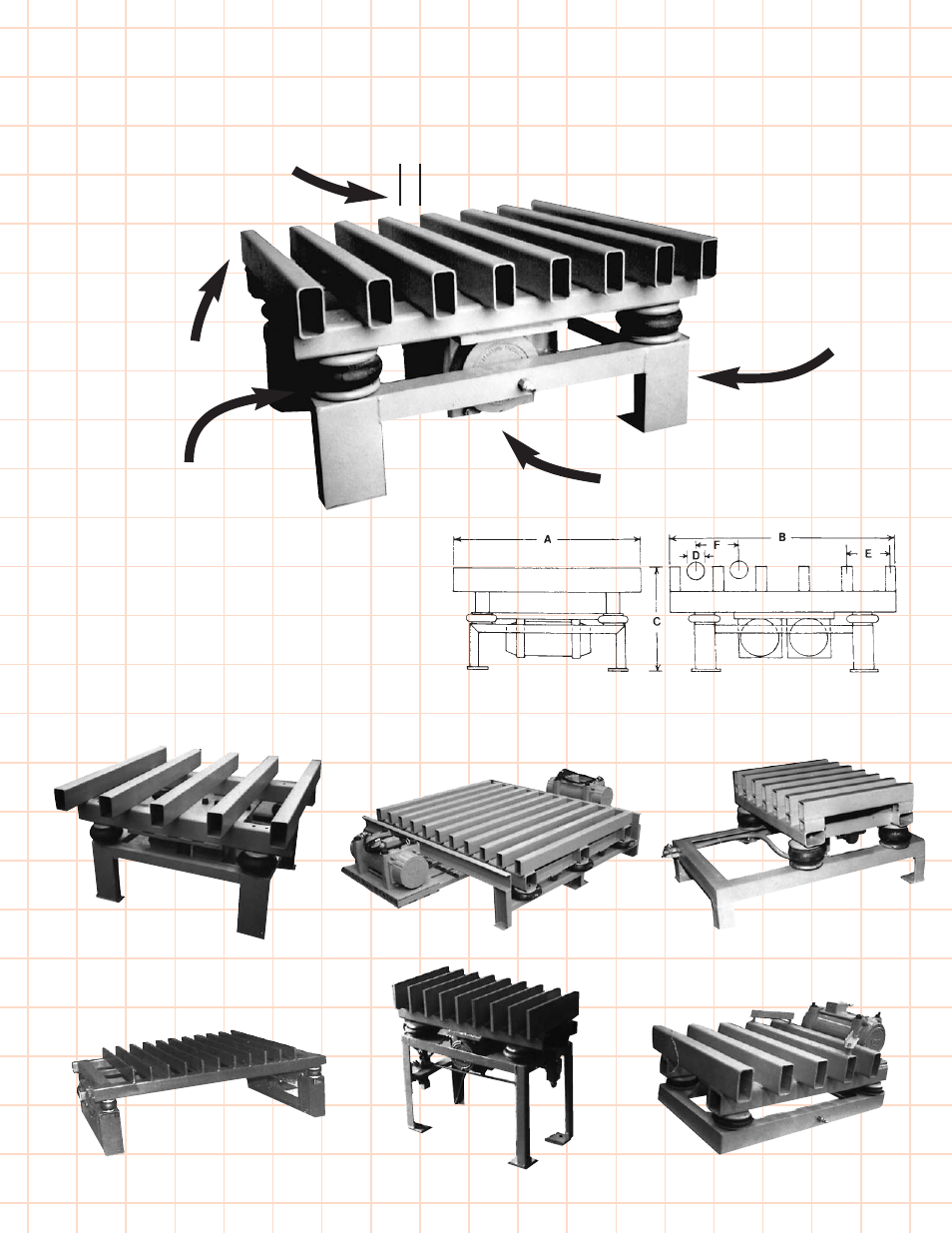

TO FIT IN WITH EXISTING ROLLER CONVEYOR

GRID TOP TABLES

GRID TOP TABLES

Inflatable
rubber shock
absorbers to lift
& lower table

Spaced to fit existing
conveyor

Heavy duty
tube
construction

Heavy duty electric,
pneumatic or hydraulic
vibrators

Heavy duty
steel frame

VIBCO’s GRID TOP TABLES
are LIGHTER and STRONGER

Used in conjunction with roller conveyors for:
Compaction of NO-BAKE sand in foundry flasks,
casting concrete products, settling granular, flaky or
powdery materials in shipping containers etc. Sizes
to fit your particular need will be quoted upon
request. Give dimensions A to F.

VIBCO’s design utilizes high-strength tubular steel, which is 4x stronger and much lighter than the angle irons other
tables are made from. The result is a more effective table. Less energy is absorbed by the dead weight of the grid top.

No-bake sand compaction in foundry

Grid table straddling scale

Extended table base for scale

Grid table straddling high floor scale

High grid for high lift

Drum packer in roller conveyor line 5
