Ordering information
Models
PA1000 Single-phase power analyzer
Standard accessories
Voltage lead set
Country-specific power cord
USB host-to-device interface cable
Documentation CD Includes user manual in English, French, German, Spanish, Japanese, Portuguese, Simplified Chinese, Traditional Chinese,
Korean, and Russian languages.
Certificate of calibration Documents the traceability to National Metrology Institute(s) and ISO9001 Quality System Registration
Five year product warranty
Recommended accessories
BB1000-NA Breakout box (North America plug configuration)
BB1000-EU Breakout box (Europe plug configuration)
BB1000-UK Breakout box (United Kingdom plug configuration)
BALLAST-CT Specialty current transducer for lamp ballast testing
CL200 Current clamp, 1 A - 200 A, for Tektronix Power Analyzers
CL1200 Current clamp, 0.1 A - 1200 A, for Tektronix Power Analyzers
PA-LEADSET Replacement lead set for Tektronix Power Analyzers (one channel lead set)

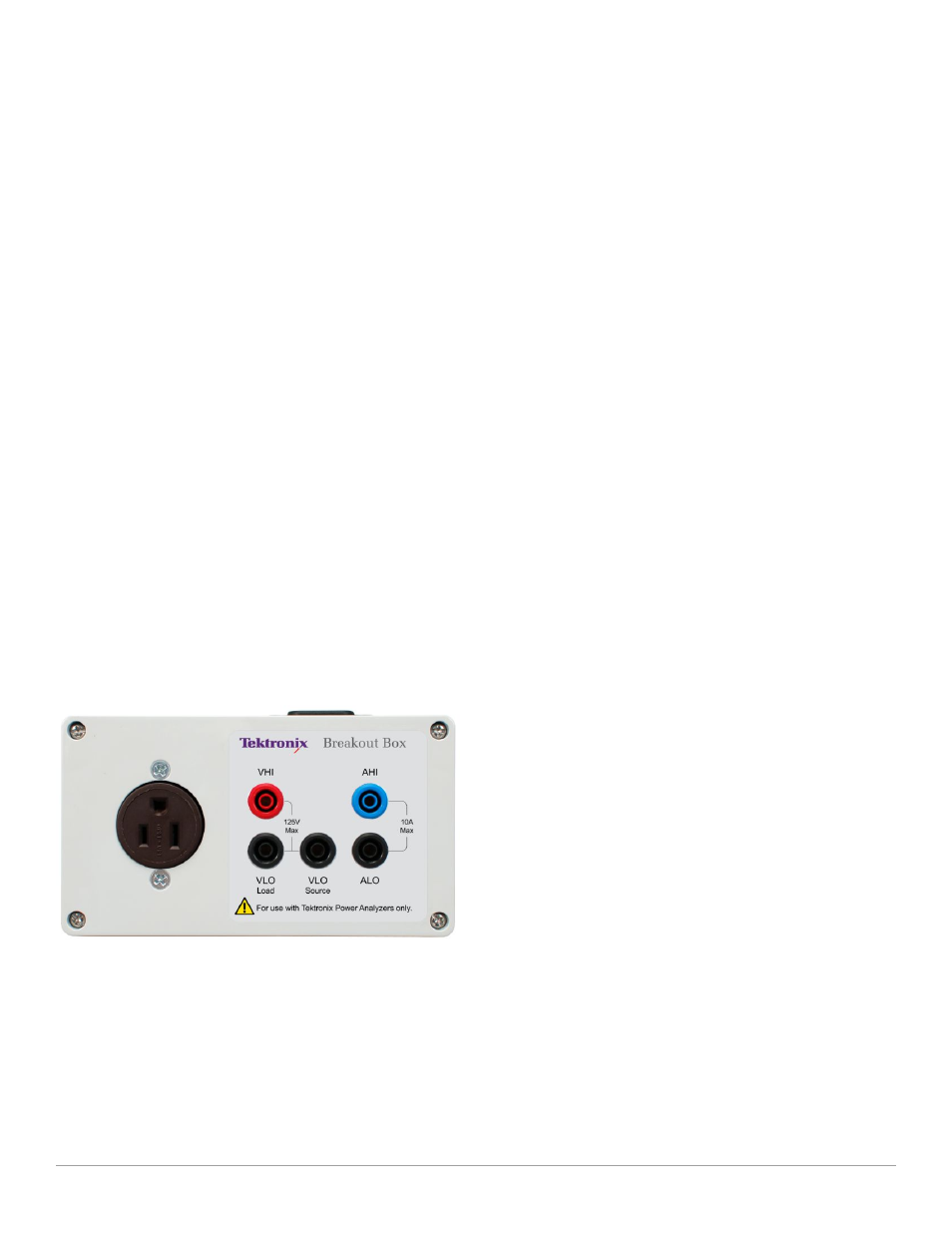

BB1000-NA breakout box
The Tektronix breakout box provides an easy way to make wiring connections between your device under test and the Tektronix power analyzer. Your device power cord plugs
directly into the outlet on the breakout box (choose the version that best matches the connector style for your geography).
Connection to the power analyzer is then simple, using the standard input lead set with 4 mm safety banana connectors that are provided as a standard accessory with the
power analyzer.
