Specifications
(From 5% to 100% rated voltage.
All units operate down to zero
output with very slight degradation
of performance.)
Input: 105-125V RMS 48-420 Hz, single
phase, less than 1.5 amperes. Input
connector per IEC 320 with mating line
cord provided.
Efficiency: Better than 75% at full load.
Output: Continuous, stable adjustment,
from 0 to rated voltage or current by
panel mounted 10-turn potentiometers
with 0.05% resolution, or by external 0
to 10V signals is provided. Linearity is
<1% of rated. Accuracy is 1% of rated +
1% of setting. Repeatability is <0.1%
of rated.
Stored Energy: 10kV model, 200
millijoules; 50kV model, 1 joule.
Voltage Regulation: Better than 0.005%
+1mV/mA, line and load.
Ripple: Better than 0.03% RMS of rated
voltage +0.5V at full load.
Current Regulation: Better than 0.05%
from short circuit to rated voltage at
any set current condition.
Voltage Monitor: Zero to +10V DC
signal is equivalent to zero to rated
voltage. Accuracy, 1% of rated voltage.
Current Monitor: Zero to +10V DC
signal is equivalent to zero to rated
current. Accuracy, 1% of reading
+0.05% of rated current (Reversible
models 1% of reading +0.1% of rated).
Stability: 0.01% per hour, after 1/2 hour
warm-up, 0.05% per 8 hours.
Voltage Rise/Decay Time Constant:
Using either the HV (on/off) or remote
voltage control, with a 75% resistive
load, the output voltage will rise or
decay with a typical time constant of
60 milliseconds (100mS maximum).
Temperature Coefficient: 0.01%
per degree C.
Ambient Temperature: -20 to +60
degrees C, operating; -40 to +85
degrees C, storage.
Polarity: Available with either positive,
negative, or reversible polarity with
respect to chassis ground.
Protection: Automatic current regulation
protects the power supply against all
overload conditions, including arcs and
short circuits. Fuses, surge limiting
resistors, and low energy components
provide the ultimate protection.
Accessories: Detachable 8 foot shielded
high voltage coaxial cable (see Models
chart for cable type) and 6 foot
detachable line cord are provided.
Designing Solutions for High Voltage Power Supply Applications
GLASSMAN HIGH VOLTAGE INC .
124 West Main Street, PO Box 317, High Bridge, NJ 08829-0317
(908) 638-3800 • Fax (908) 638-3700 • www.glassmanhv.com
Options
Symbol Description
100 Rated for 90 to 110 volts RMS. 48-420 Hz.
220 Rated for 210 to 250 volts RMS. 48-420 Hz.
CT Current trip. Power supply trips off when the load current reaches the
programmed level. This option has a rear panel switch that selects either “trip”
operation or current limiting.
DM 3-1/2 digit LCD panel meters.
5VC 0-5 V voltage and current program/monitor.

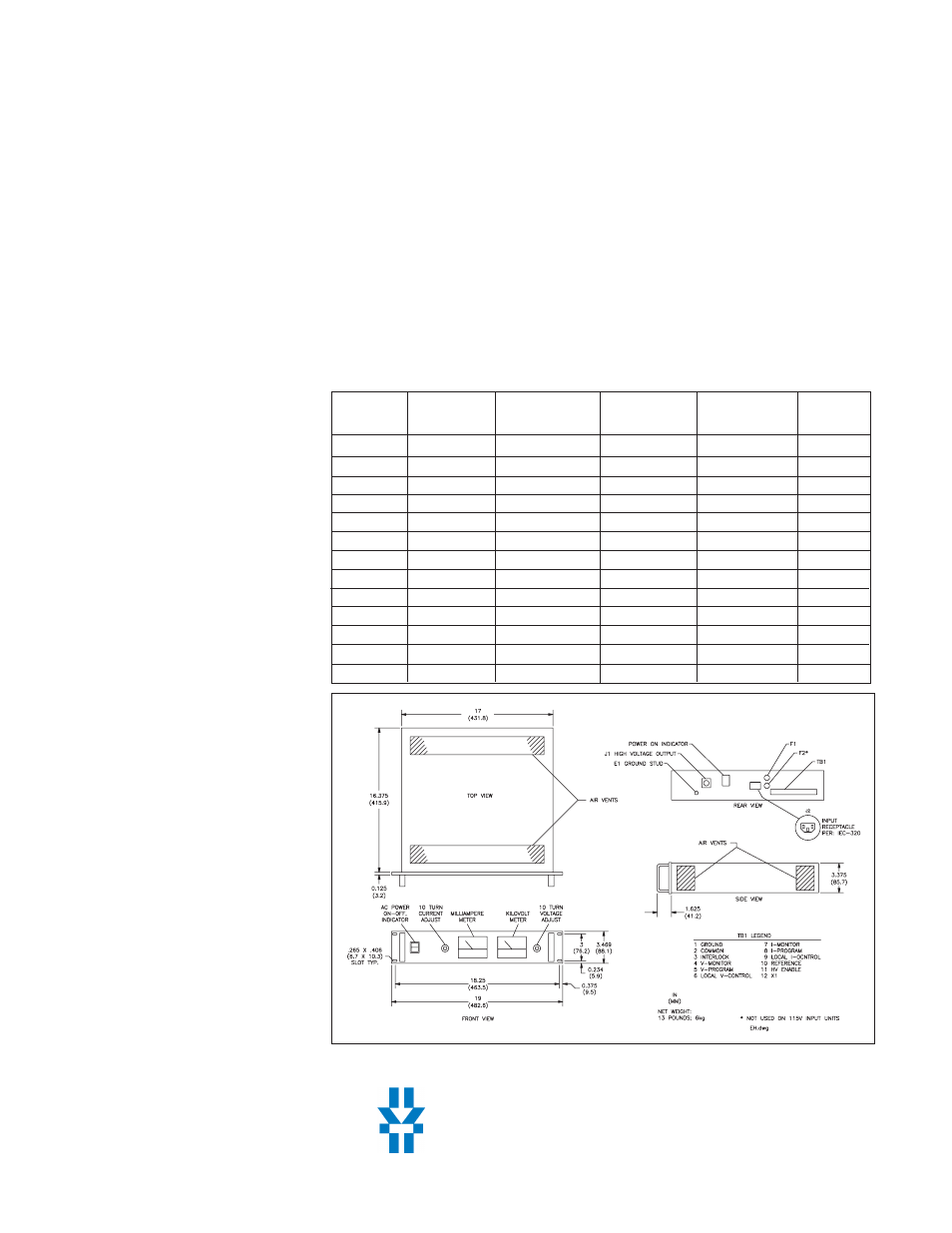

Models
Positive Negative Reversible Output Output Output
Polarity Polarity Polarity Voltage Current Cable
EH1P100L EH1N100L EH1R100L 0-1kV 0-100mA RG-59
EH1.5P65L EH1.5N65L EH1.5R65L 0-l.5kV 0-65mA RG-59
EH2P50L EH2N50L EH2R50L 0-2kV 0-50mA RG-59
EH3P33L EH3N33L EH3R33L 0-3kV 0-33mA RG-59
EH5P20L EH5N20L EH5R20L 0-5kV 0-20mA RG-59
EH10P10 EH10N10 EH10R10 0-10kV 0-10mA RG-8U
EH15P6 EH15N6 EH15R6 0-15kV 0-6mA RG-8U
EH20P5 EH20N5 EH20R5 0-20kV 0-5mA RG-8U
EH25P4 EH25N4 EH25R4 0-25kV 0-4mA RG-8U
EH30P3 EH30N3 EH30R3 0-30kV 0-3mA RG-8U
EH40P2.5 EH40N2.5 EH40R2.5 0-40kV 0-2.5mA RG-8U
EH50P2 EH50N2 EH50R2 0-50kV 0-2mA RG-8U
EH60P1.5 EH60N1.5 EH60R1.5 0-60kV 0-1.5mA RG-8U
Remote Controls: Common, +10 volt
reference, interlock, current monitor,
current program, voltage monitor,
voltage program, HV enable/disable,
and ground provided on a rear panel
terminal block.
External Interlock: Open off, close on.
HV Enable/Disable: 0-1.5V off,
2.5-15V on.
Net Weight: 13 lbs.
