The large 5.7-inch color graphic touch-screen LCD provides excellent readability. Furthermore, selecting icons from the touch panel display* 1
provides intuitive and easy operation. The integrated high-speed printer also allows the user to perform the entire process from making
measurements to printing the results with the push of a single button (START button). *1 Text display can also be selected.
You can save parameter recalculations and measurement results in text format on a memory card and import into commercial spreadsheet software
on a PC. You can also connect to a PC using the USB connector and use a dedicated software application to
perform everything from measurement control and condition modification to issuing inspection result reports.
Detector supplied
as standard
One of two types may be selected:
• Measuring force: 0.75mN
Stylus form: Tip radius 2µm
Tip angle 60°
• Measuring force: 4mN
Stylus form: Tip radius 5µm
Tip angle 90°
Side of display unit
Rear of display unit
Drive units
• Standard drive unit
• Popular standard drive unit
• Transverse tracing drive unit
• Best suited for measurement
of narrow, shrouded workpiece
features such as crankshaft
bearings, EDM parts, etc.
(Patent Registered in Japan)
• Retractable drive unit
• The detector is in the retracted
position at rest so it is immune
from damage when inserted into
a feature whose shape cannot be
easily seen, such as a blind hole, etc.
A wide range of optional detectors
is available, including detectors for
small holes, extra small holes, gear
tooth surfaces, and deep grooves.
Sur f test
SJ-3 1 0
BAC and ADC curves can be printed in addition
to calculation results (including pass/fail results)
and assessed profiles. The printer offers an
easy-to-understand layout and can also print
horizontally to match the content displayed on the
LCD. Furthermore, printing speed is approximately
50% faster than conventional models.
Built-in battery
With drastically enhanced power compared
to conventional models, the Surftest SJ-310
can make 1,500 continuous measurements
on a full charge achieved in 4 hours.
Frequently used functions, such as the measurement start button,
are provided as rugged sheet buttons with excellent durability.
Measurement Result
Measured profile ←→
One-touch
switching
BAC curve
ADC curve

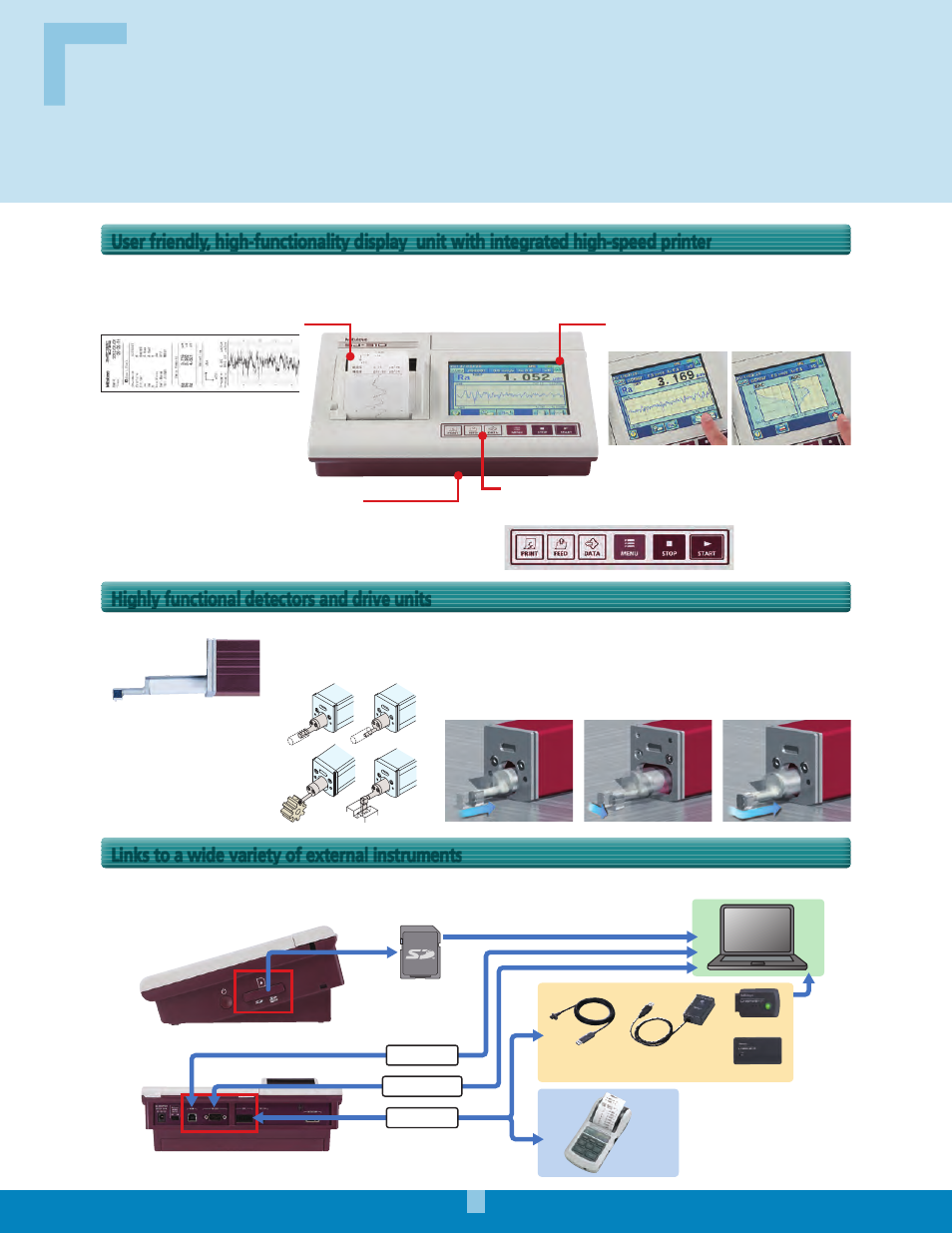

User friendly, high-functionality display unit with integrated high-speed printer
Links to a wide variety of external instruments
Highly functional detectors and drive units
5.7-inch color graphic LCD
with touch screen
Printer
Sheet buttons
Memory card
(Option)
USB I/F
RS-232C I/F
SPC I/F
DP-1VR * 2
Input Tool
for USB * 2
U-WAVE-T * 2
U-WAVE-R * 2
USB Input Tool
Direct * 2
PC
*2: Refer to P11 for more details
