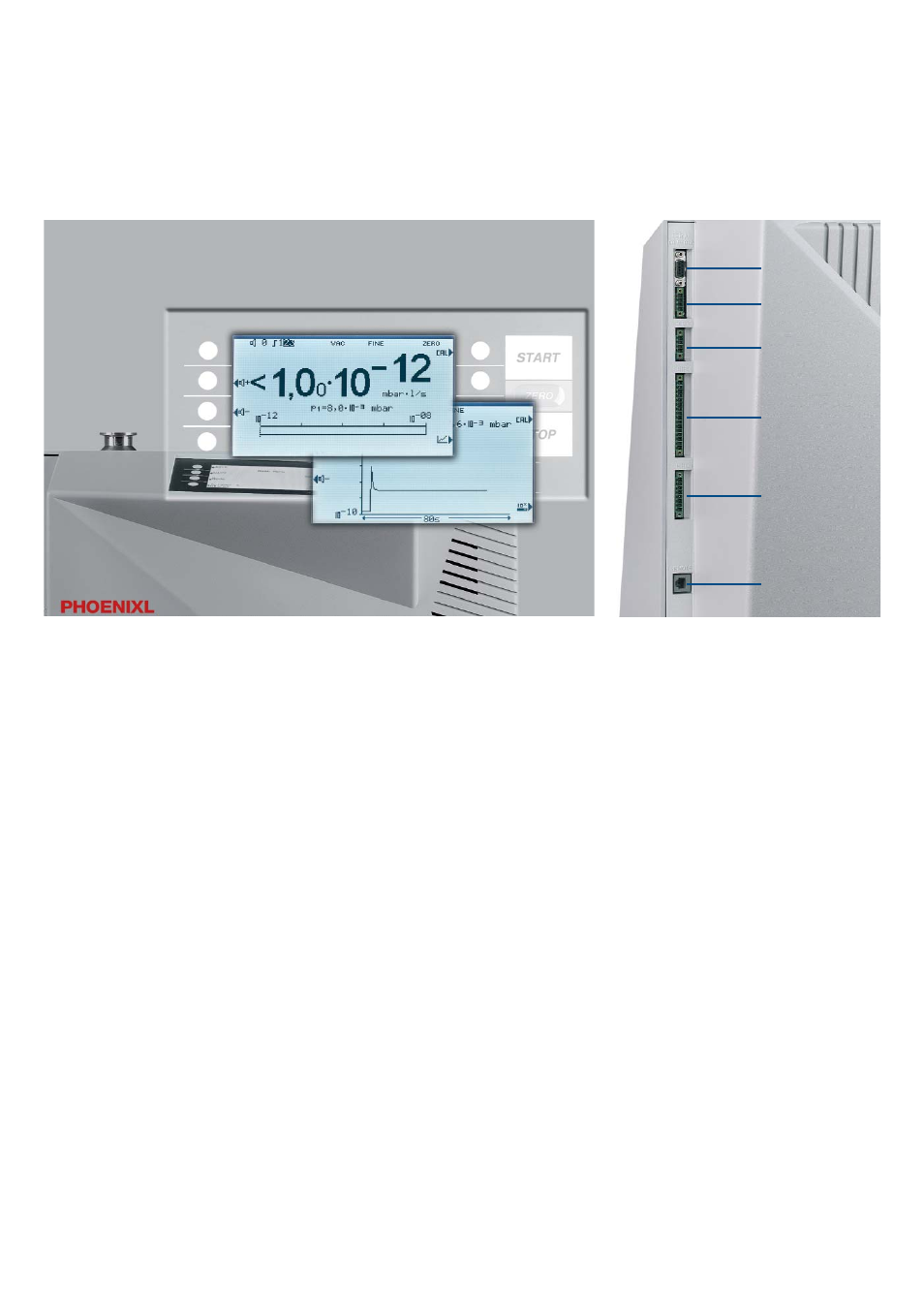

Operating Panel
The PHOENIXL300 is equipped with a
newly developed operating panel.
The integrated graphic display in the
basic unit ensures that all the neces-
sary parameters can be set up easily.
Status and measurement results are
displayed in an excellent size and with
outstanding clarity, and can be read
conveniently even from a greater
distance.
The type of display can be switched
over between numerical, bargraph or
trend. The important basic functions
(START, ZERO, STOP) are available
upon a single key press.
The software is operated under menu
control. Sections of the menus can be
protected against unauthorised use or
unintentional changes.
Accessories
Remote Control
Operating the leak detector through
the optional remote control unit allows
the PHOENIXL300 to be operated
from a distance of up to 28 metres,
depending on the length of the cable.
The functions START, STOP/VENT,
STOP (venting), ZERO as well as the
volume and the leak rate display can
be controlled through the remote
control unit.
Sniffer Line SL300
By using a sniffer line, the may also
be used as a sniffer leak detector.
The length of the sniffer line is 4 m.
Sniffer probes of different sizes, either
of flexible or rigid design, are available.
LeakWare Software
Software for operating the leak
detector through a PC as well as
for displaying and processing the
measured leak rate data.
Partial Flow Pump System
The PHOENIXL300 can be supple-
mented by a partial flow pump system.
The additional evacuation of the device
under test using an auxiliary pump
offers the following benefits:
I Faster response times
I Ready to measure already at an
inlet pressure starting at
1000 mbar
I More rapid venting of large
devices under test
I Leak detection of large volumes
Electrical connection strip on the rear
Chart recorder output
Relay output
Connection of sniffer
line or partial flow
pump set
Remote control
RS 232 C interface
PLC in/out
