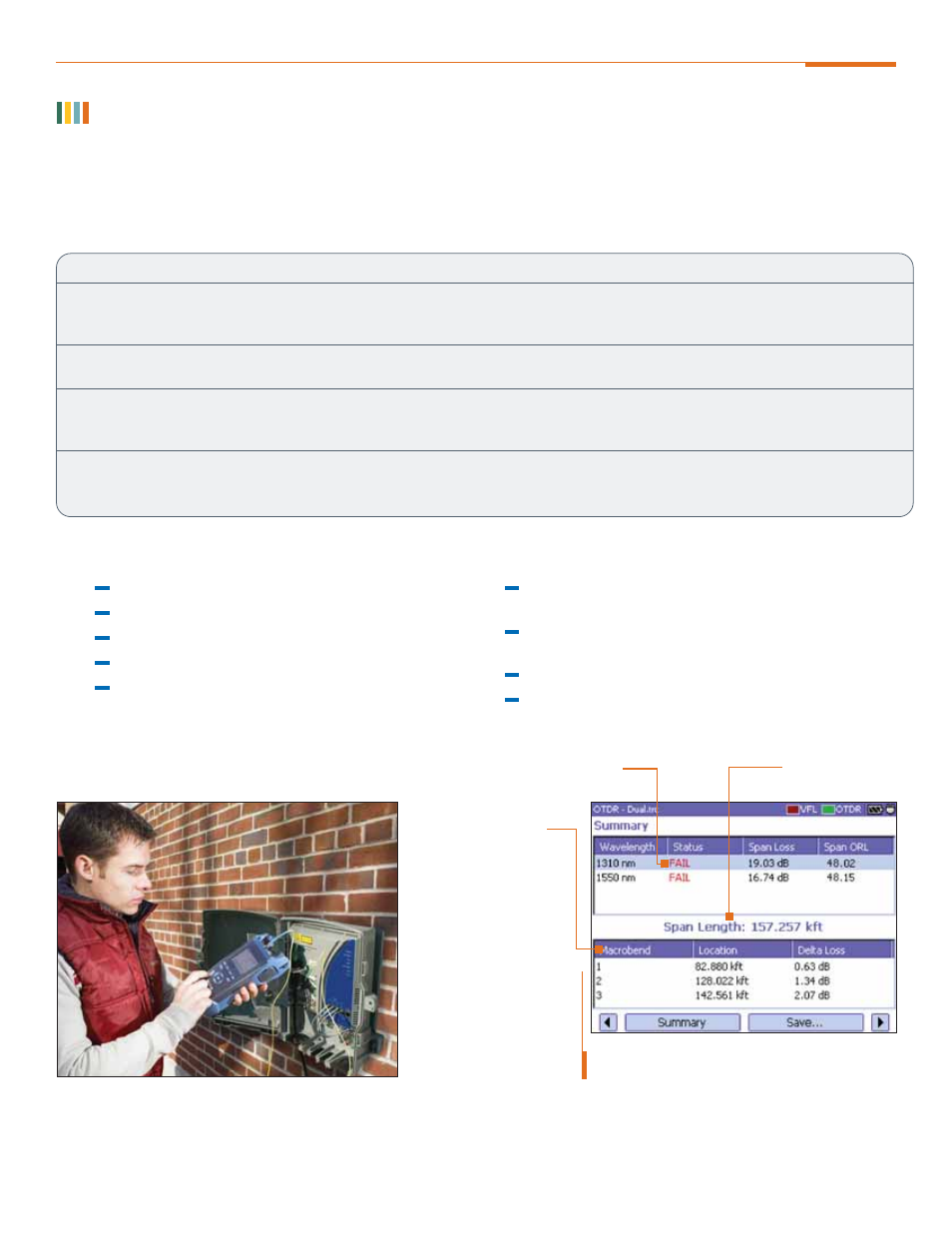

AXS-100 Series: Four Models to Choose From
AXS-100 Series
Handheld OTDR
EXFO’s AXS-100 Handheld OTDR series covers the whole range of short-haul OTDR test applications. Featuring unrivaled event dead
zones and first-class dynamic ranges, it includes four models to better suit your specific OTDR testing requirements.
UNIQUE ADVANTAGES
FasTrace function: one-touch testing for top user-friendliness
8-hour power autonomy
Lightweight: 1 kg
USB port (memory-stick compatible) for easy data transfer
Large internal memory (up to 500 results)
Transflective color display for viewing clear results under
bright sunlight
Superior automated analysis for a better, easier
and faster diagnosis
Automatic pass/fail analysis and macrobend locating
Auto-zoom on events
MODEL WAVELENGTHS DYNAMIC RANGES
AXS-100 Access OTDR 1310/1550/1625 nm 29/28/28 dB
Designed for singlemode OTDR troubleshooting
(in-service PON troubleshooting option)
AXS-110-SM Singlemode OTDR 1310/1550 nm 32/30 dB
Ideal for FTTx/access and CATV testing
AXS-110-MM Multimode OTDR 850/1300 nm 24/25 dB
Optimized for enterprise/premises/private network
testing on both 50 and 62.5
μm multimode fiber
AXS-110 All-Fiber OTDR 850/1300/1310/1550 nm 24/25/32/30 dB
Combines singlemode and multimode capabilities
for enterprise/campus/access networks
Span length (distance) Pass/fail status
Macrobend detector
www.EXFO.com
The AXS-100’s unique software functionalities provides in-depth
results at a glance.
