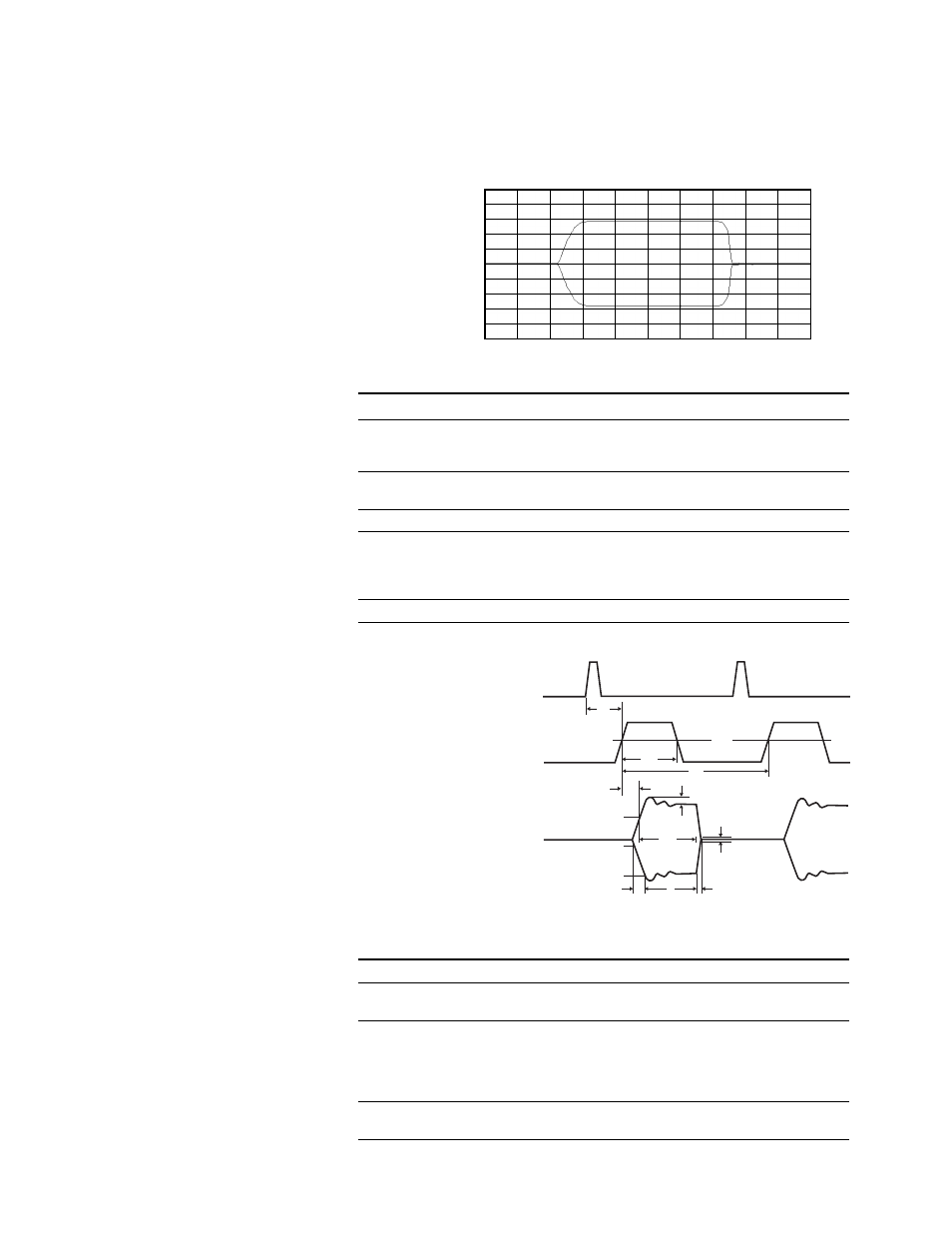

Measured pulse modulation envelope
Internal pulse generator
Modes Free-run, triggered, triggered with delay, doublet,
and gated. Triggered with delay, doublet, and
gated require external trigger source.
Period (PRI) (T
p
) 70 ns to 42 s
(Repetition frequency: 0.024 Hz to 14.28 MHz)
Pulse width (T
w
) 10 ns to 42 s
Delay (T
d
)
Free-run mode 0 to ±42 s
Triggered with delay and doublet modes 75 ns to 42s with ±10 ns jitter
Resolution 10 ns (width, delay, and PRI)
RF delay (T
m
) < 20 ns typical
T
d
Video delay (variable)
T
w
Video pulse width (variable)
T
p
Pulse period (variable)
T
m
RF delay
T
rf
RF pulse width
T
f
RF pulse fall time
T
r
RF pulse rise time
V
or
Pulse overshoot
V
f
Video feedthrough
Remote programming
Interfaces GPIB (IEEE-488.2,1987) with listen and talk, RS-232,
and 10-base T-LAN interface.
Control languages SCPI version 1992.0. Also will emulate most
applicable Agilent 836xxB, Agilent 8373xB, and
Agilent 8340/41B commands, providing general
compatibility with ATE systems which include these
signal generators.
IEEE-488 functions SH1, AH1, T6, TE0, L4, LE0, SR1, RL1, PP0, DC1,
DT0, C0, E2.
VXIplug&play drivers Are available.
0 10 20 30 40 50 60 70 80 90 100
Timebase (nsec)
300
240
180
120
60
0
-60
-120
-180
-240
-300
V
oltage (mV)
Sync
Output
Video
Output
RF Pulse
Output
90%
10%
50%
50% 50%
Tp
Tw
Td
Tm
Vor
Trf
Tf Tr
Vf
A Series only
L and A Series
