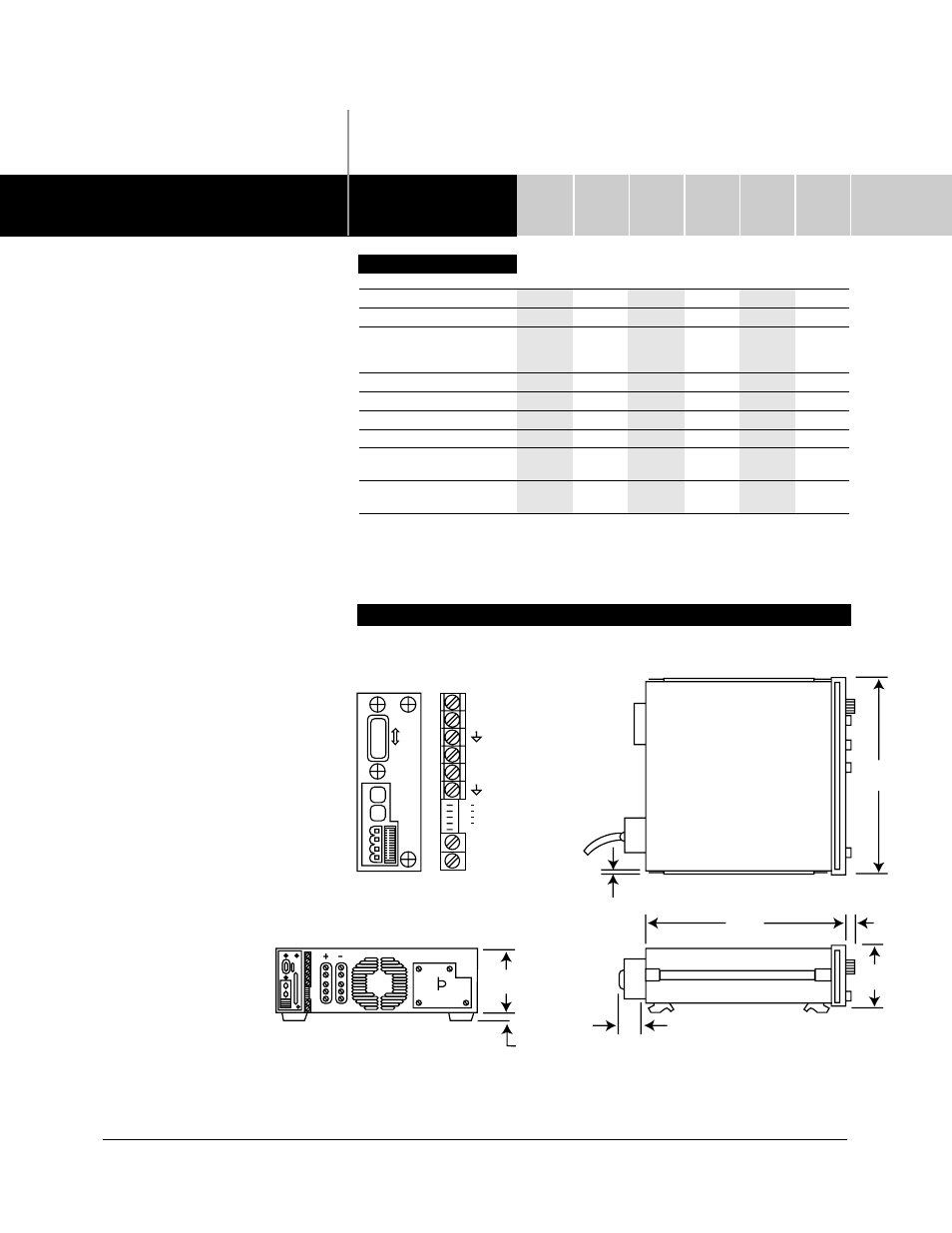

Terminal Strip Detail
Screw Size
M3.5 x 0.6
VM
IM
M
VP
IP
P
B6
B1
+S
-S
26
Supplemental Characteristics
for all model numbers
Remote Sensing: Up to 2 V drop in each
lead. Voltage regulation specification met
with up to 0.5 V drop, but degrades for
greater drops.
Modulation: (analog programming of
output voltage and current)
Input signal: 0 to 5 V or 0 to 4 k Ohms
Software Driver:
VXIPlug&Play
Warranty: One year
Size: 6030A–32A, 6035A:
425.5 mm W x 132.6 mm H x 503.7 mm D
(16.75 in x 5.25 in x 19.83 in).
6033A, 6038A:
212.3 mm W x 177.0 mm H x 516.4 mm D
(8.36 in x 6.97 in x 17.87 in).
Autoranging: 200 W and 1000 W GPIB
(Continued)
More detailed specifications at www.agilent.com/find/6030
Basic DC Power Supplies essential features for a tight budget
Specifications
(at 0
˚
to 55
˚
C unless
otherwise specified)
6030A 6031A 6032A 6033A 6035A 6038A
Supplemental Characteristics
(Non-warranted characteristics determined by design and
useful in applying the product)
Programming resolution Voltage
50 mV
5 mV
15 mV
5 mV
125 mV 1
5 mV
Current
4.25 mA
30 mA
12.5 mA
7.5 mA
1.25 mA
2.5 mA
DC floating voltage
±550 V
±240 V
±240 V
±240 V
±550 V
±240 V
either terminal can be grounded
or floated from chassis ground
AC input current
100 Vac
24 A
24 A
24 A
6 A
24 A
6 A
120 Vac
24 A
24 A
24 A
6.5 A
24 A
6.5 A
220 Vac
15 A
15 A
15 A
3.8 A
15 A
3.8 A
240 Vac
14 A
14 A
14 A
3.6 A
14 A
3.6 A
Weight
Net
16.3 kg
17.2 kg
16.3 kg
9.6 kg
16.3 kg
9.6 kg
(36 lb)
(38 lb)
(36 lb)
(21 lb)
(36 lb)
(21 lb)
Shipping
21.8 kg
22.7 kg
21.8 kg
11.4 kg
21.8 kg
11.4 kg
(48 lb)
(50 lb)
(48 lb)
(25 lb)
(48 lb)
(25 lb)
Agilent Models: 6030A, 6031A, 6032A, 6035A
