3
Agilent models: 6621A, 6622A, 6623A, 6624A, 6627A
Output 2 Output 4
Output 3 Output 1

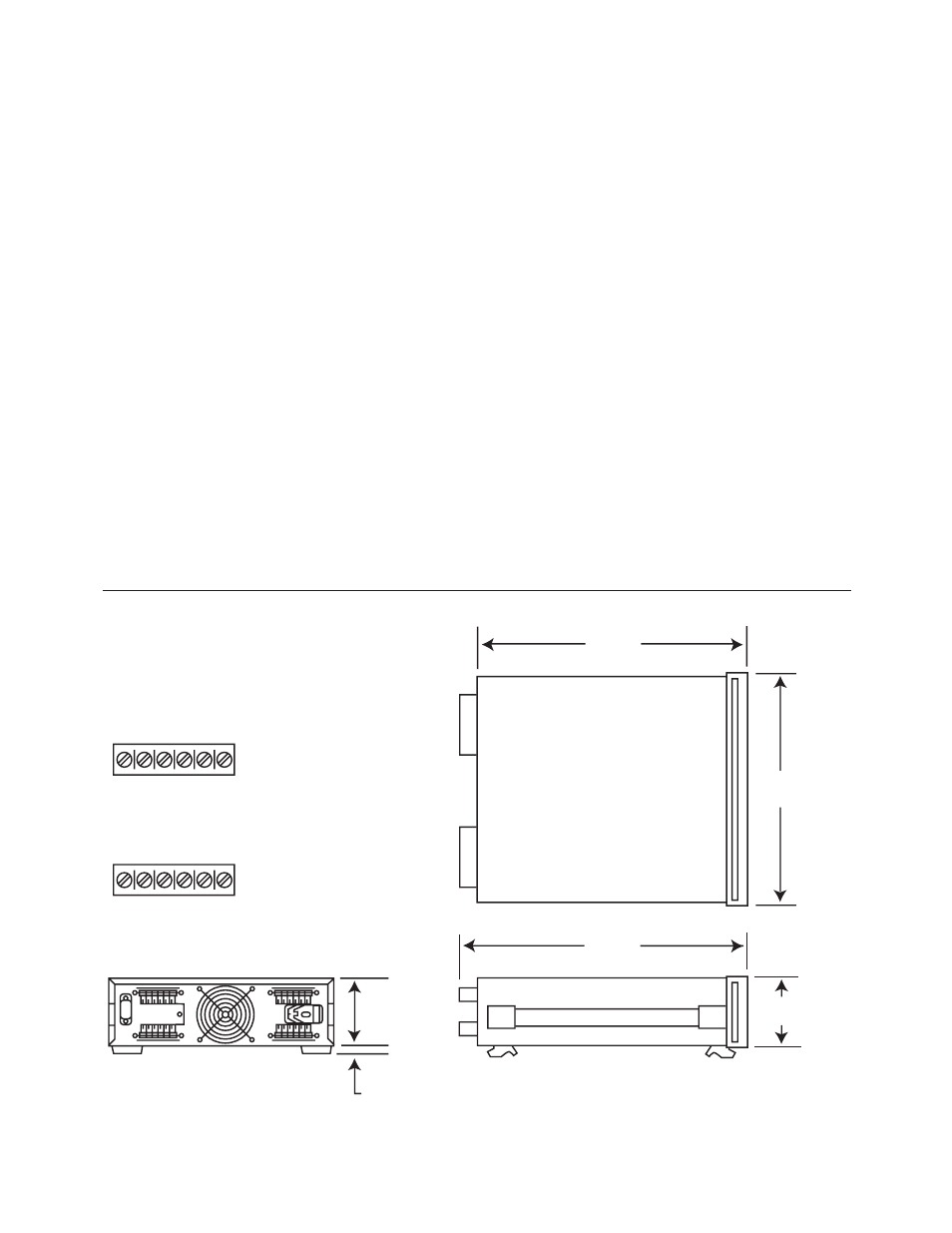

Top
Terminal Strip Detail
Output 2 & 3
Side
Rear
Output 1 & 4
425.5 mm
16.75"
497.8 mm
19.6"
518.2 mm
20.4"
128 mm
5.04"
-O V +O V -S -V +V +S
+S +V -V +S +O V -O V
12.7 mm
0.5"
132.6 mm
5.2"
Screw Size:
M3.5 x 0.6
Supplemental characteristics
for all model numbers
DC floating voltage: Output terminals
can be floated up to ± 240 VDC from
chassis ground
Remote sensing: Up to 1 V drop per
load lead. The drop in the load leads
subtracts from the voltage available
for the load.
Command processing time:
7 ms typical with front-panel display
disabled
Output programming: Current sink
limits are fixed approximately 10%
higher than source limits for a given
operating voltage above 2.5 V.
Input power: 550 W max., 720 VA max.
GPIB interface capabilities:
SH1, AH1, T6, L4, SR1, RL1, PP1, DC1,
DT0
Software driver: VXIplug&play
Regulatory compliance: Listed to
UL1244; conforms to IEC 61010-1;
carries the CE mark.
Size:
425.5 mm W x 132.6 mm H x 497.8 mm
D (16.75 in x 5.22 in x 19.6 in)
Weight: Net, 17.4 kg (38 lb); shipping,
22.7 kg (50 lb)
Warranty: One year
