DATA SHEET > OCS 500N6F series > 20130618
TECHNICAL DETAILS
MODEL SELECTION

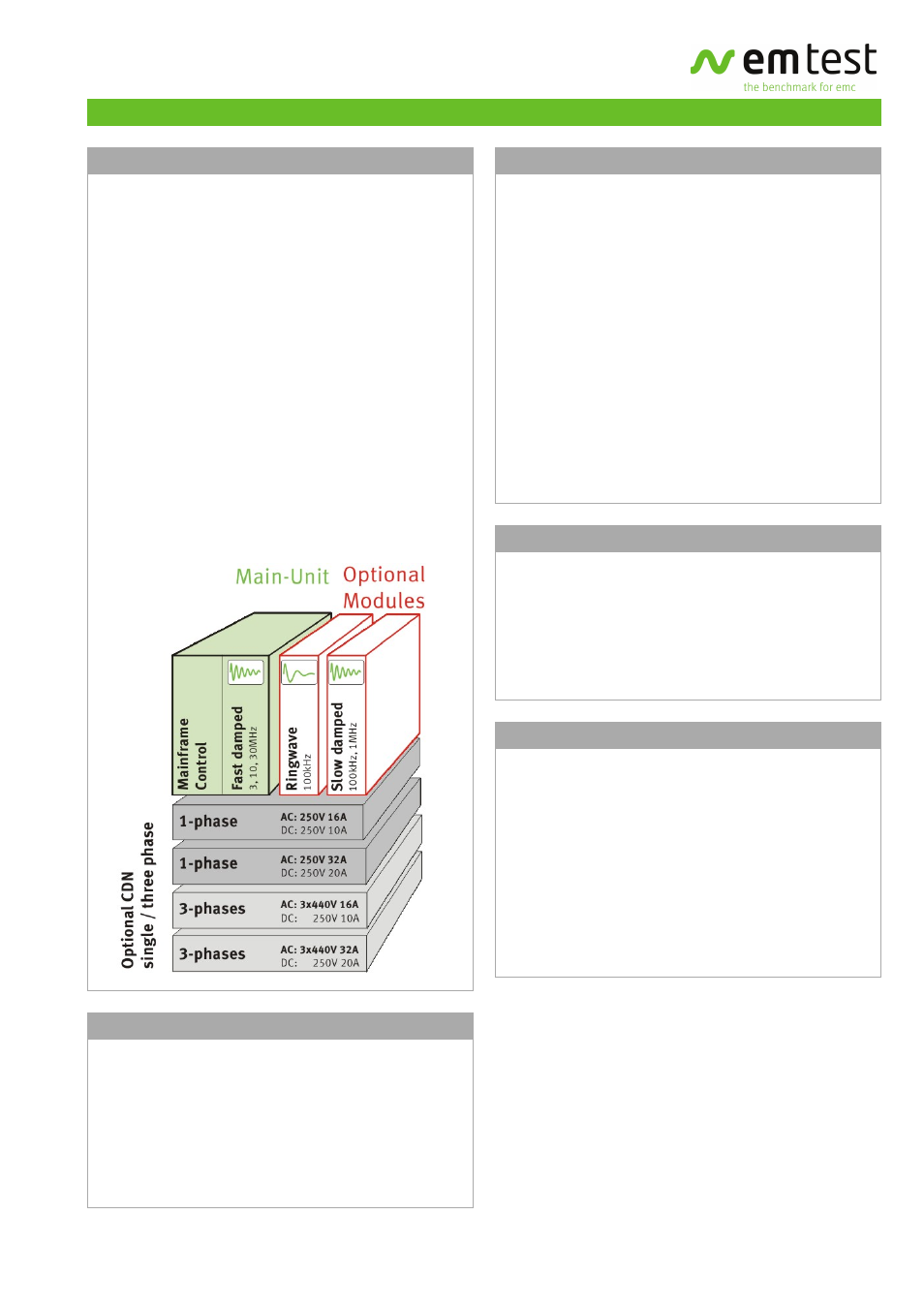

THREE IN ONE - THE OCS 500N6F COMBINES DAMPED
OSCILLATORY WAVES AND RINGWAVE
The basic equipment includes the fast damped oscillatory
generator with 3MHz, 10MHz and 30MHz for up to 4.4kV
acc. IEC 61000-4-18.
The OCS 500N6F comes with a built-in coupling/
decoupling network for either single phase or three-phase
and is rated for currents of 16A or 32A per line.
Optional Modules:
Slow Damped Oscillatory Waves with 100kHz/1MHz reach
up to 3kV. The module comply with EN/IEC 61000-4-18
and also with the requirements to test protective relays as
per ANSI/IEEE C39.70.
Ringwave Module with capability of up to 6kV complies
with the Ringwave requirements of IEC 61000-4-12
ANSI/IEEE C62.41 standard.
OPERATION
EASY TO OPERATE
Front panel menu and function keys enable the user to
program his test routines quickly and accurately. The
cursor allows fast control of all test parameters of the
programmed routine, thus test procedures are simplified
and confidence is generated that every step is carried out
correctly.
SOFTWARE
IEC.CONTROL SOFTWARE FOR CONTROL AND
DOCUMENTATION
Outstanding user convenience, clearly structured
windows and operation features and the EM TEST
standards library along with the flexibility to generate
user specific test sequences very easily are the main
features of iec.control software. The software is
automatically configured according to the connected EM
TEST generators. Extensive reporting capabilities help the
user to create test reports that meet international
requirements.
iec.control is supported by Windows 2000, Windows XP,
Windows Vista and Windows 7. Remote control is
achieved either via USB or GPIB. iec.control supports a
wide range of GPIB cards both of National Instruments.
AUXILIARY DEVICES
CNV 504N5 - COUPLING NETWORK FOR SIGNAL/DATA
LINES
The CNV 504N5 is a 4-wire coupling/decoupling network
for the application of the Damped Oscillatory Waves on to
signal/data lines as required EN/IEC 61000-4-18 with a
200ohm source impedance.
ACCESSORIES
MS 100N - MAGNETIC FIELD COIL FOR DAMPED
OSCILLATORY MAGNETIC FIELDS
The MS 100N is a 1sqm magnetic field coil as specified in
IEC/EN 61000-4-10. Its design allows easy moving of the
coil. The field coil is adjustable in height and allows for
360degr rotation.
The MS 100N is directly connected to the corresponding
HV output of the OCS 500N6 to generate damped
oscillatory magnetic fields as per IEC/EN 61000-4-10, up
to level 5.
