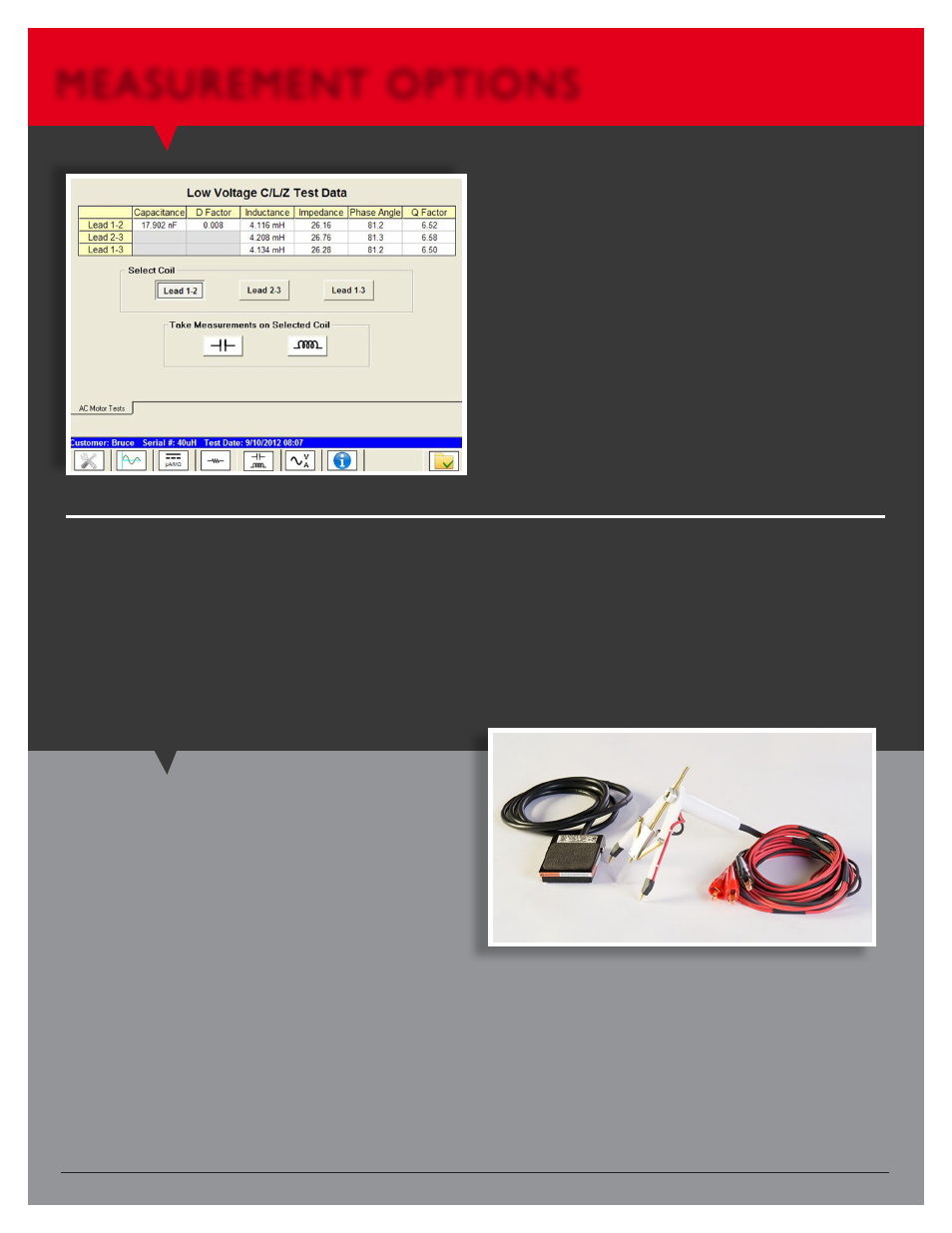

MEASUREMENT OPTIONS
ACCESSORIES
The ATF-11 is a hand-held fixture that is used
to test large and small DC Armatures with any
iTIG II model. The ATF spans an adjustable
number of bars. Only 2-3 span tests are usually
needed to find out if the armature is good or
bad.
Where more analysis is needed, for example
for predictive maintenance, Electrom offers
the CLZ option. It includes measurements of
inductance, impedance and phase angle for
windings and coils, and capacitance measured
from the winding to ground. It also calculates
Dissipation factor (D), also called Tan Delta,
and Quality factor (Q).
Model D does all tests and measurements with
milli Ohm resistance measurement accurate
to ±0.2% for winding resistance. When lower
The FS-01 energizes the iTIG II and can be used
instead of the Start button on the front panel.
ARMATURE TEST FIXTURE
(ATF) FOR DC MOTORS
C, L AND Z MEASUREMENTS
WINDING RESISTANCE
FOOT SWITCH
resistance is required, for example to compare
low resistance coils, choose the micro Ohm
option. Model D does all tests and measurements
through the same high voltage output leads.
