Activation/Tapping each active area is touch sensitive and responds better to a stylus suited for
this purpose; i.e. PDA type.
The Analog Signals: Display on the home page will show two lines of text for system voltage and
current by default. Tap this active area to decrease the font size for four lines of text showing
the system values and the corresponding labels. The large font reappears after 20 minutes of
inactivity (no user input); otherwise tap again to enter a new window of operation or select a
different active area as required.
3.3.3 Menu Navigation and Sample Programming
Menu Navigation: The sample screen shown below is presented upon login. From here, the
user may navigate (e.g. browse – as on a personal computer) each of the CXC’s menu items,
including alarms, controls and configuration items.

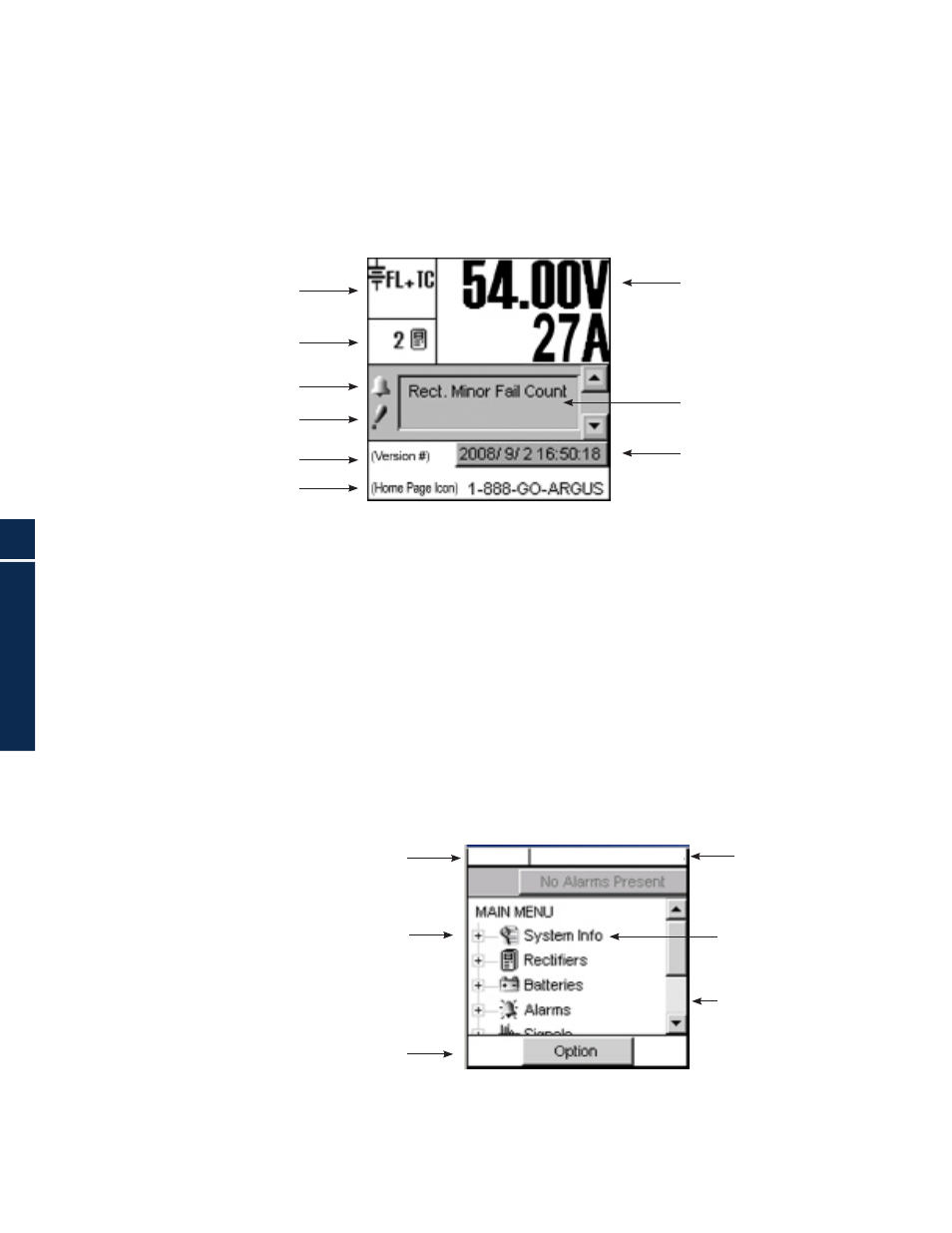

Fig. 3-3, Normal Operating Mode “Home Page”
Analog Signals Display
Rectifiers Information
Converter treport may also be
accessed via this area
Mode Status
Alarm Condition Icon
Priority Icon
Software Version
Home Page Icon, tap to login
Alarm Indication
Date and Time
3.3 CXC Controller Opeational Status, continued
3.3.2 Normal Operation
This is the default-operating mode or “home page.” The GUI displays system status information
and monitors all input channels.
Active areas to tap and activate are noted below:
Fig. 3-4, Navigation Screen
Battery Volts and Load
Current Display.
The folders can be expanded
(indicated by the plus sign shown
here) if there are files inside.
Folders that can be collapsed will
be shown with a minus sign.
Mode + Temp Comp Display
Buttons display here for additional
functions, such as logout,
programming, or save changes.
Tap on the folder icon or
label to expand.
Sliders and scroll bars
are used for Navigation.
FL + TC 54.00V 250A
