1.3 System Components
The ACS HP Series Battery Charger is comprised of a number of individual subsystems designed to
work together to provide highly reliable, filtered power in support of the load. A typical system will
contain the following:
1
2
3
4
5
7
1. Blank equipment panel.
2. Cordex 4.4kW rectifiers Loaded onto pre-installed
shelf. The shelf contains up to five hot-swappable
4400W Rectifier modules. The Rectifiers are used as
the charging component of a hybrid “UPS” system.
3. Cordex Controller CXCR: Controls the entire AC
and DC power system. Provides web-based and
local display interface to set configurable features
of Inverters and Rectifier modules, battery charging
voltages, and system-wide alarms.AC Output
Distribution Panel: DIN rail circuit breakers can be
installed to feed individual AC load circuits.
4. Main breaker panel: Serves as main disconnect for
the Inverter AC input.
5. Auxiliary/Distribution breaker panel
6. Blank equipment panel.
7. Perforated ventilation panel.
6

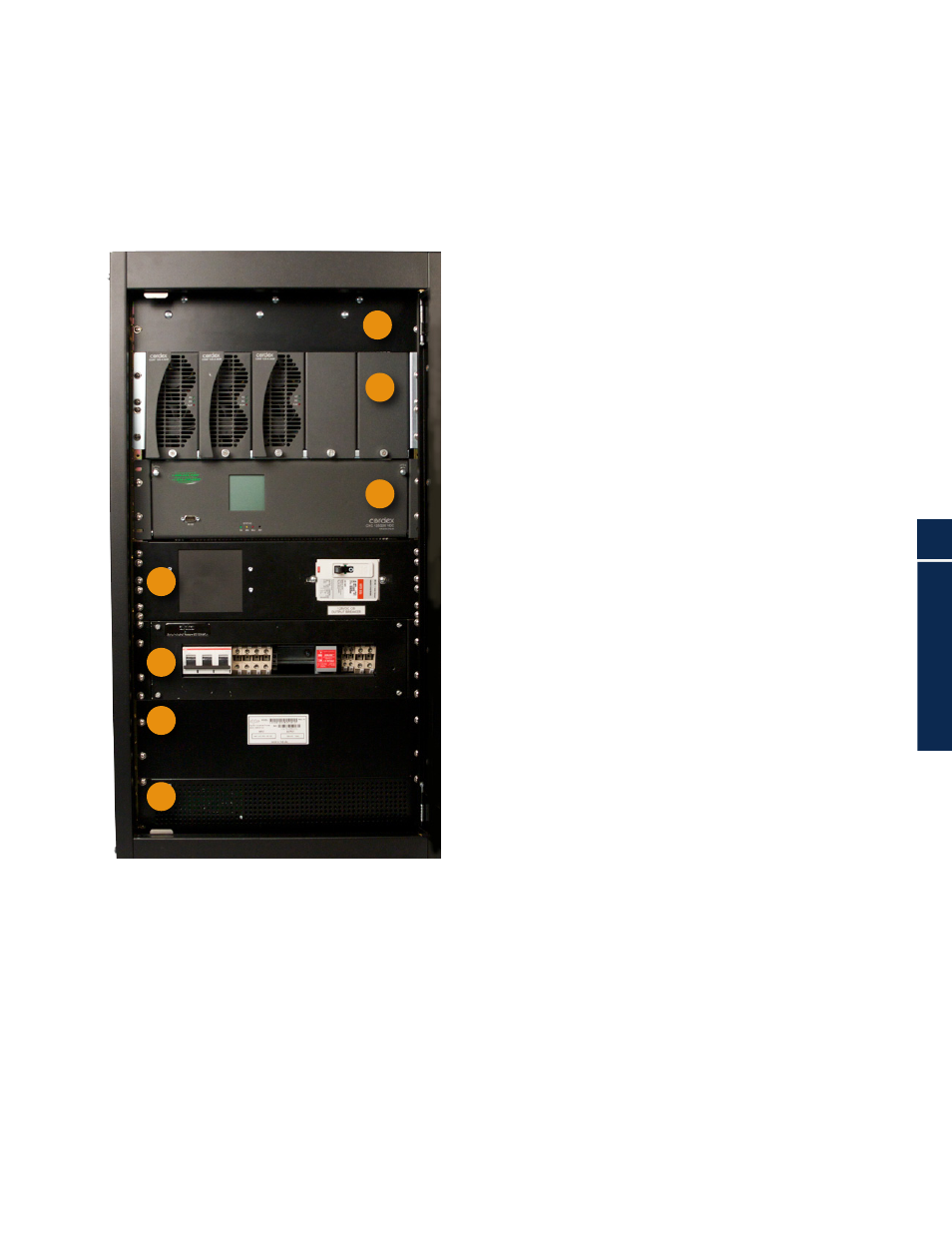

Fig.1-2, Configured Charger System
