16
AIP900-0012-B0-001 Rev. A (01/2012)
2.4 Installing the Rectifier Modules
Before installation, verify all upstream and downstream circuit breakers are in the OFF (open) position.
The Rectifier shelves are factory-installed and pre-wired. In the event a shelf requires
removal or replacement, contact Alpha Industrial Power service at 1-800-996-6104.
NOTE:
Rectifier Module Installation Procedure:
1. Load the first module in the leftmost position on the shelf. Populate the shelf from
left to right. Do not force the module into place; all modules are keyed to ensure the
correct module (voltage/polarity) type is used.
2. Insert by placing the rectifier module on the shelf bottom and sliding the module into
the rear connector (inside the shelf). Press firmly into place to fully engage the rear
connector in the shelf receptacle.
3. Turn the front panel thumbscrew to secure the module in place.
4. Reverse the above steps to remove a module.
5. Repeat for each succeeding module in the configuration.

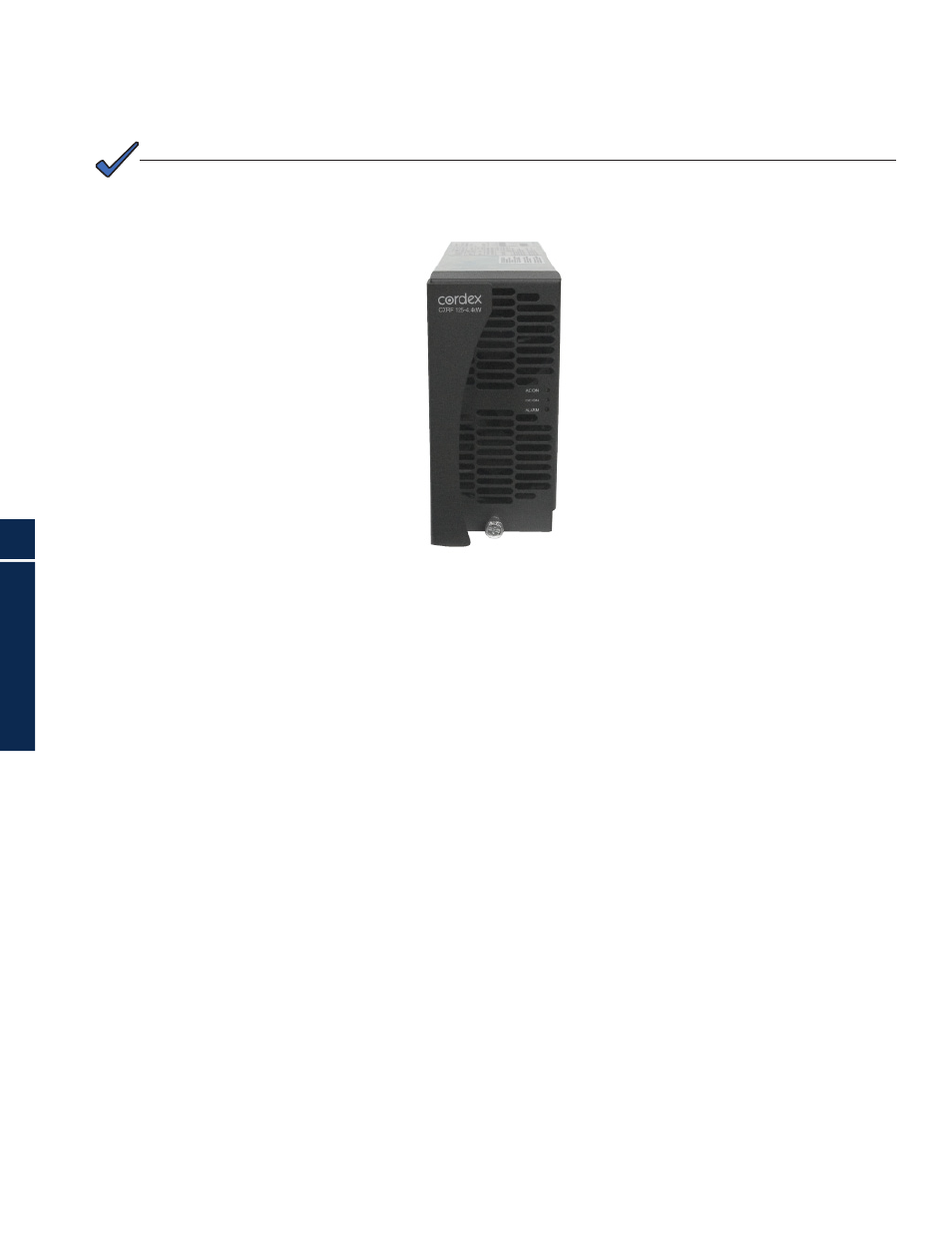

Fig. 2-2, Rectifier Module
