9
Figure 2.4.1
Figure 2.4.2
Figure 2.4.4
Figure 2.4.3

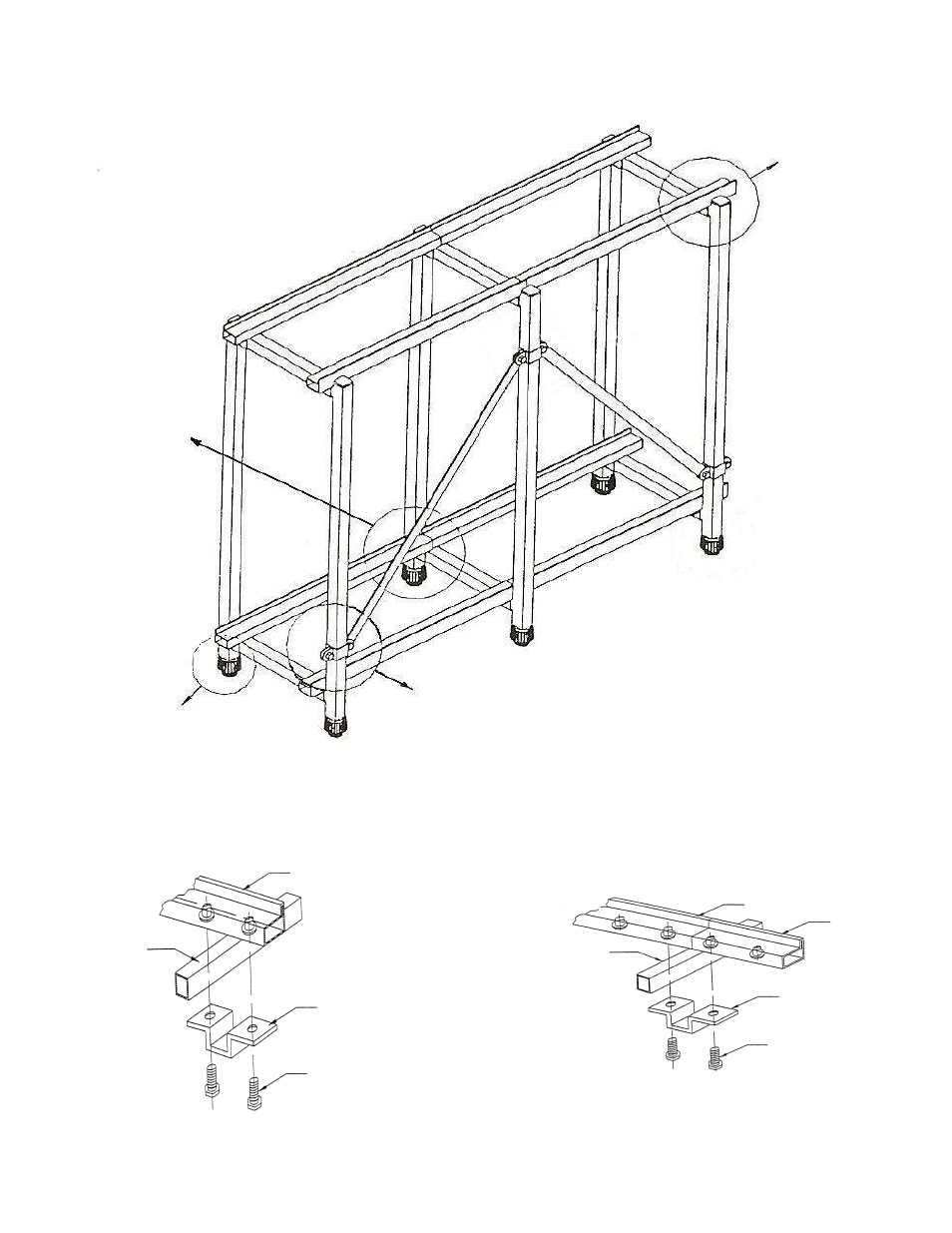

2.4 Assemble the rails to the frame
Outside rail
Outside rail
Intermediate Frame
Angle Clip “L”
M8 Bolt
2.4.2 Attach the rail to the intermediate
frame with one angle clip “L” &
2 each M8 bolts 2.4.1 Attach the rail to the frame with
one angle clip “L” and 2 each M8 Bolts
Outside Rail
Frame
Angle Clip “L”
M8 Bolt
