NOTE: Frames may or may not be equally spaced
M8 Hex Nut
M8 x 20 Bolt
Mid-Support Rail Outside Rail

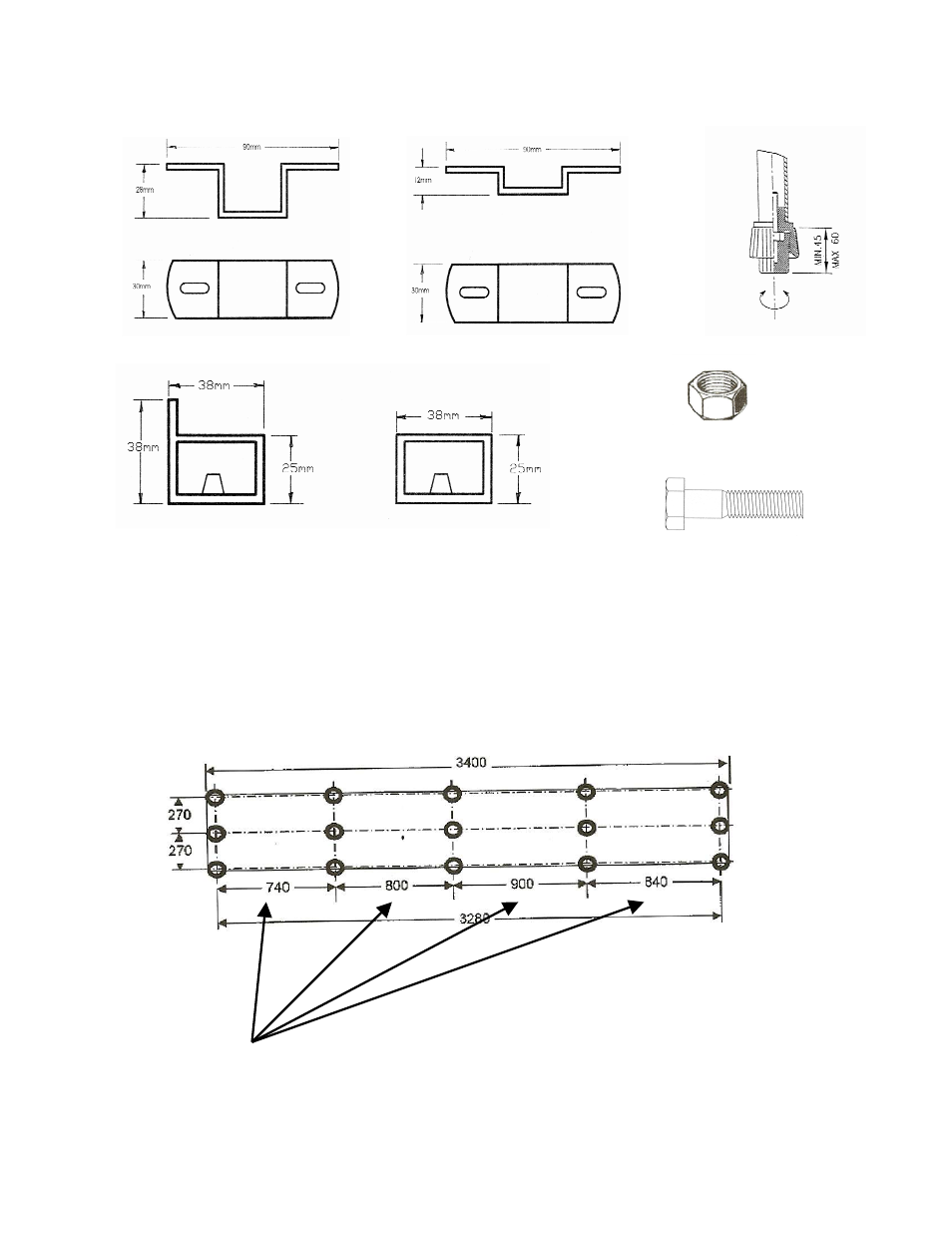

2.2 Identify the parts required to construct the battery rack.
2.3 Utilizing the footing layout diagram assemble the frames.
Support Foot
Angle Clip “D” Angle Clip “L”
