1.5.1 Battery Connection
Tools and Materials Needed:
Two 7/16” open end wrenches
Battery Cable Kit, BSM-3 (Alpha P/N 874-497-22)
Procedure:
WARNING: Set the BATTERY BREAKER on the power
supply to OFF.
To prevent short circuits, route only ONE wire at a time
through the cable conduit. Attach the cable at both ends
before routing the second cable through.
1. Install 3 batteries into the BSM-3 as shown in Fig. 1-4
NOTE: When attaching cables to the battery pack in the
UPE-M3, place the termination on the opposite
side of the battery post from the existing wire.
2. Install the battery cable kit one wire at a time. Connect
both ends before installing the next wire to avoid short circuits.
3. Set the BATTERY BREAKER on the front of the power Supply to
the ON position
NOTE: If battery wires for status monitoring are to be
installed, refer to the transponder manufacturers
instructions for wiring diagrams. Install the fuse
in the location shown on the battery wiring
diagram.
1.5 Battery Installation, continued

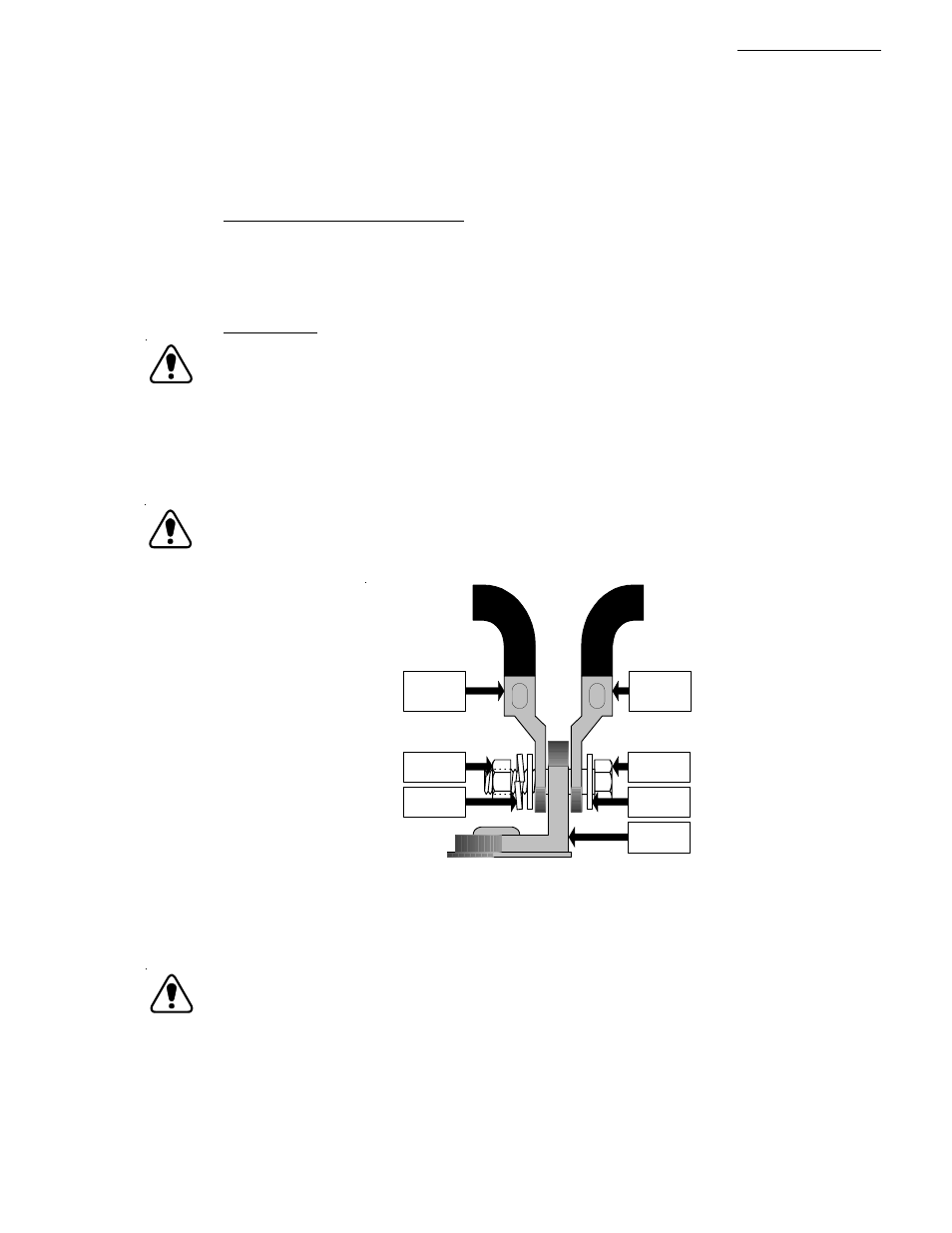

Battery Post
Flat Washer
Bolt
Lock
Washer
Nut
MDG
UPE-M3
Battery
Cable
BSM-3
Battery
Cable
Co-Termination
