4. PN Series Options

031-103-B0-003 Rev. C

4.3

Service Disconnects,

continued

4.4

Input Power Panel (IPP)

For applications requiring

a protected AC generator.

Fused safety switch. For applications

with high AIC rating requirements.

(NOT factory pre-wired.)

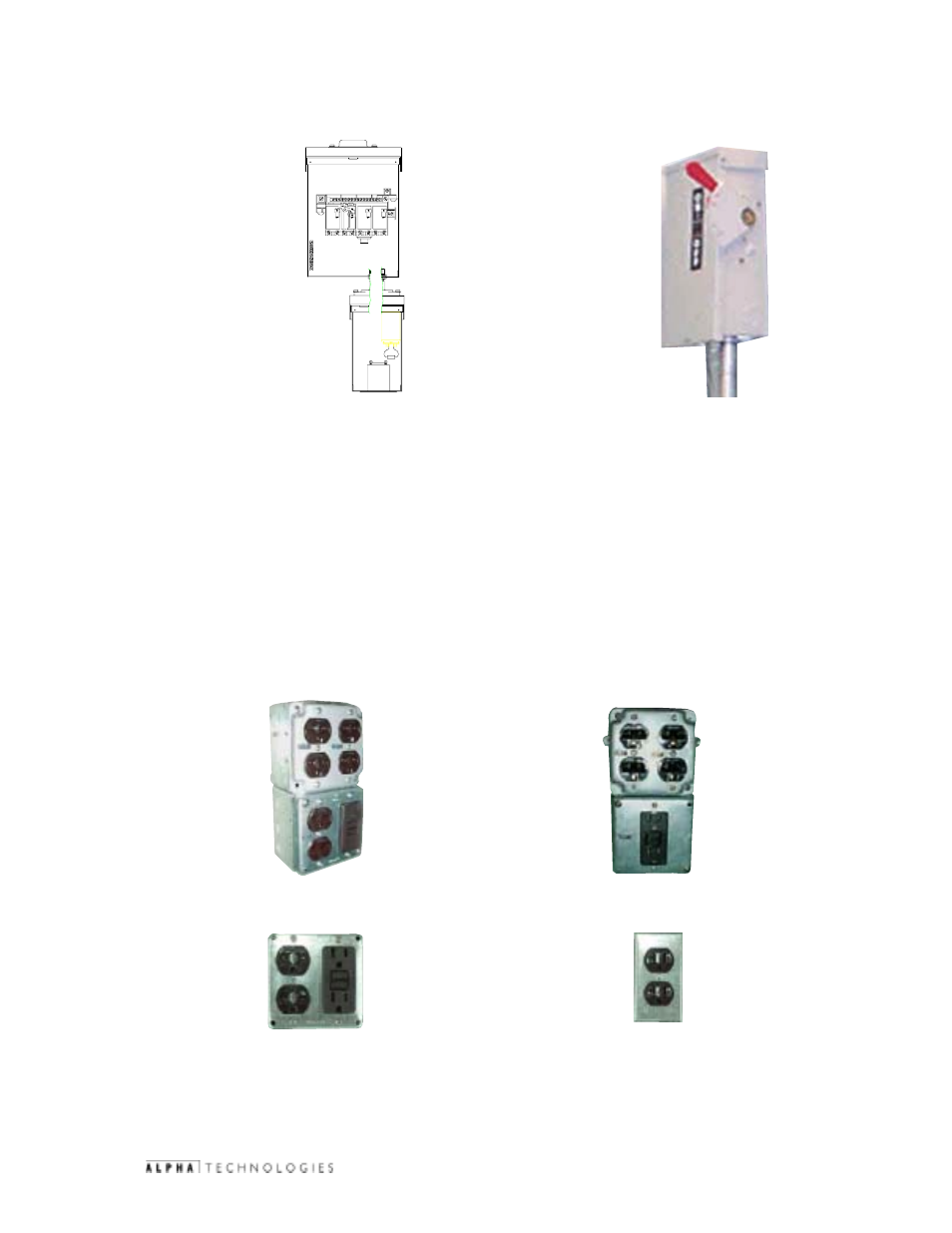

There are four basic configurations of the IPP. Each is available in 120V and 240V. Units in figures 4-10, 4-11, and 4-12
are factory pre-wired, include Square-D high-magnetic breakers for each power supply, and provide a GFCI convenience
outlet.

Figure 4-8; MTS (Showing100A and 60A boxes)

Figure 4-9; FBX-60A

Figure 4-12; IPP for One Power Supply

Figure 4-13; Breaker Duplex Option (BDO)

for One Power Supply

Figure 4-10; IPP for Three Power Supplies

Figure 4-11; IPP for Two Power Supplies
