62 042-288-B0-001, Rev. A2
Major Alarms
Abbreviation
Major
Minor
Notify
Comm
System
1 2 3 4 5 6 7 8 9
LO OT OS OC GH WI PS LP OV
Major Alarms
Abbreviation
Major
Minor
Notify
Comm
System
10 11 12 13 14 15 16 17 18
CF AO TF IB TP DC ED LF AD
19
SR
Red
Green
Amber
4.0 The Engine Control Module, continued
4.6 ECM Alarm Overview
Alarms are indicated in three ways: ECM LEDs, RS-485 communications, and alarm
contact closures on the ECM transponder interface. Alarm indications on the ECM LEDs are
displayed by pressing the service reset button momentarily. Pressing the service reset switch
again will reveal the next alarm in the list. When the alarm list has been exhausted, all LEDs
will flash several times and then return to their normal functions. Placing the RAS switch to
the STOP position for three (3) seconds, then switching back to AUTO will clear any
latched alarms and start the generator if the cause of the alarm has been corrected.

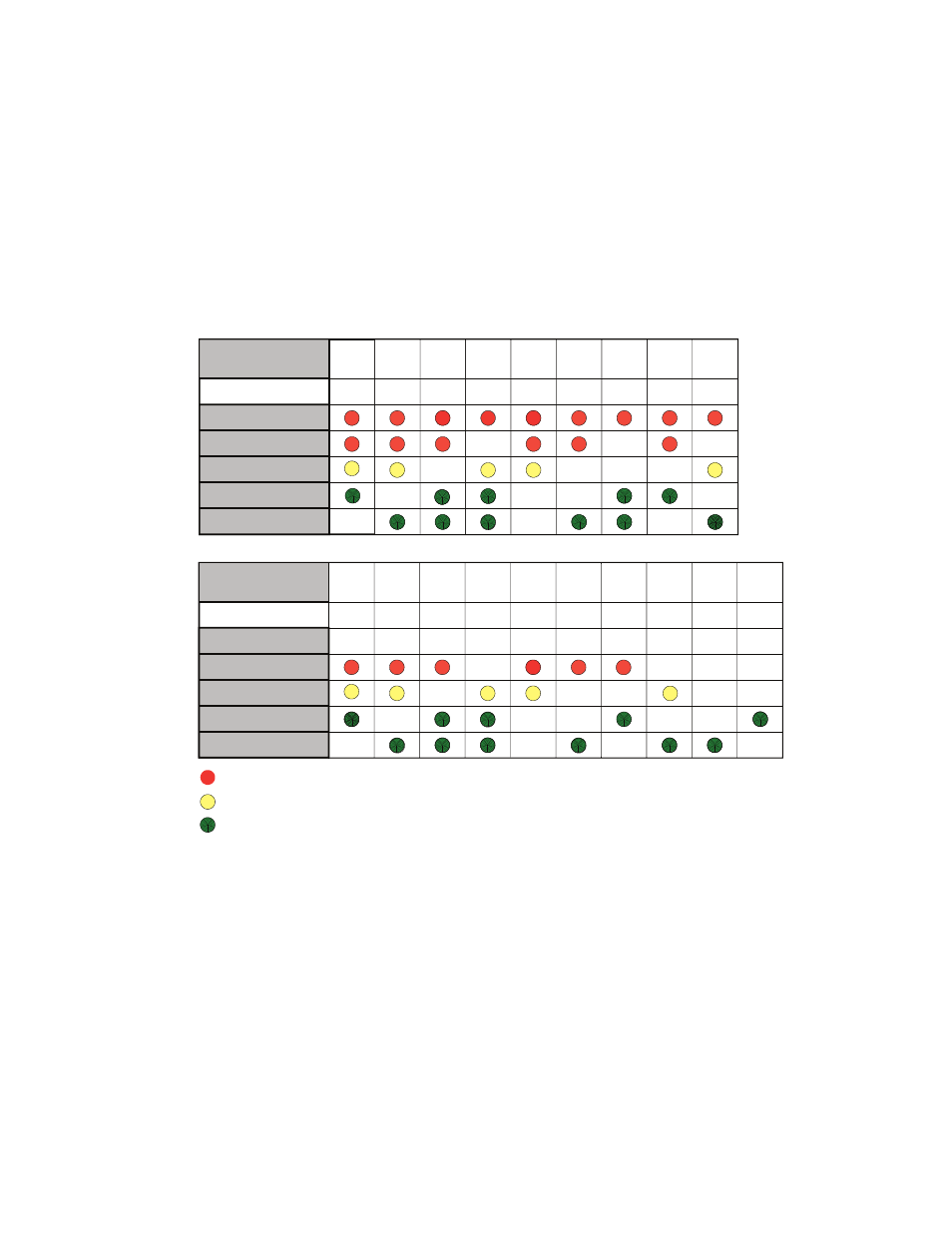

The following table shows the LED patterns and the alarms they represent.
1. (LO) * Low Oil Pressure
2. (OT) Engine Over-temp
3. (OS) * Engine Over-speed
4. (OC) * Engine Over-crank
5. (OV) * Alternator Over-voltage
6. (GH) * Gas Hazard
7. (WI) Water Intrusion
8. (PS) * Pad Shear
9. (LP)*** Low Fuel Pressure
10. (CF) *** Control Fail
11. (AO) Alternator OFF
12. (TF) * Self-Test Fail
13. (IB) Low Ignition Battery
14. (AD) Auto-mode Disabled
15. (TP) Tamper (Default, Disabled)
16. (DC) DC Bus fault
17. (ED) Engine Disable
18. (LF)** Line Failure
19. (SR)** Service Required
Legend: * = Latching Alarm
** = Notifications
*** = Alarm “latches” after 5 activations
Table 4-2, Major/Minor Alarm Indications and Notifications
(LEDs displayed on the ECM)
