Installation – Alpha Technologies BD-8 User Manual
Page 29
3. Installation
29
031-032-C2-002 Rev. B
3.7
Power Supply Installation
, continued
3.7.1
Power Supply Installation,
continued

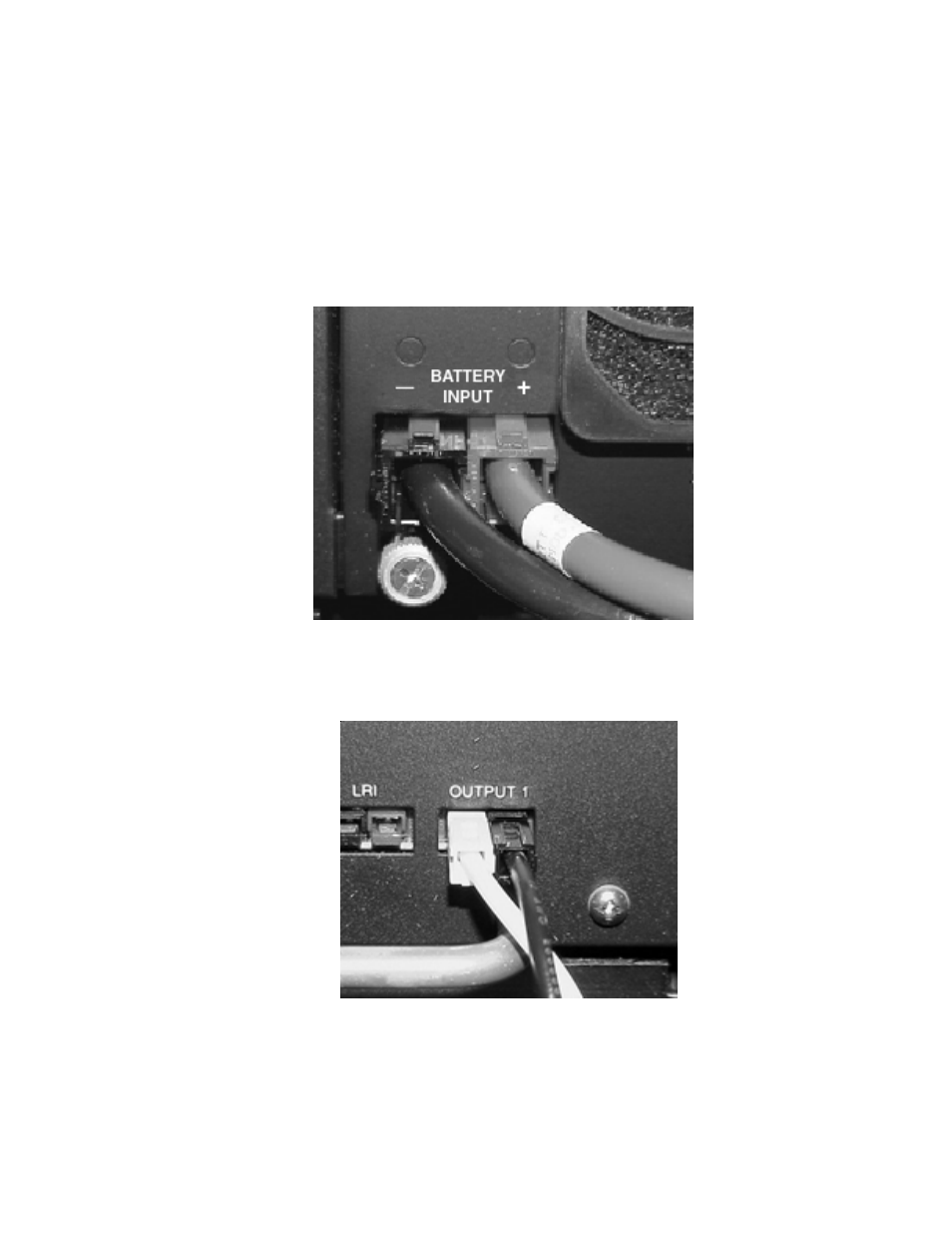

3. Verify that the Battery Circuit Breaker is in the OFF position. Connect the
red and black battery cable to the BATTERY INPUT connection.
4. Connect the black and white wire from the SPI(s) to the OUTPUT connection
on the front of the XMS2 power supply.
