3. Installation
15 031-032-C2-002 Rev. B

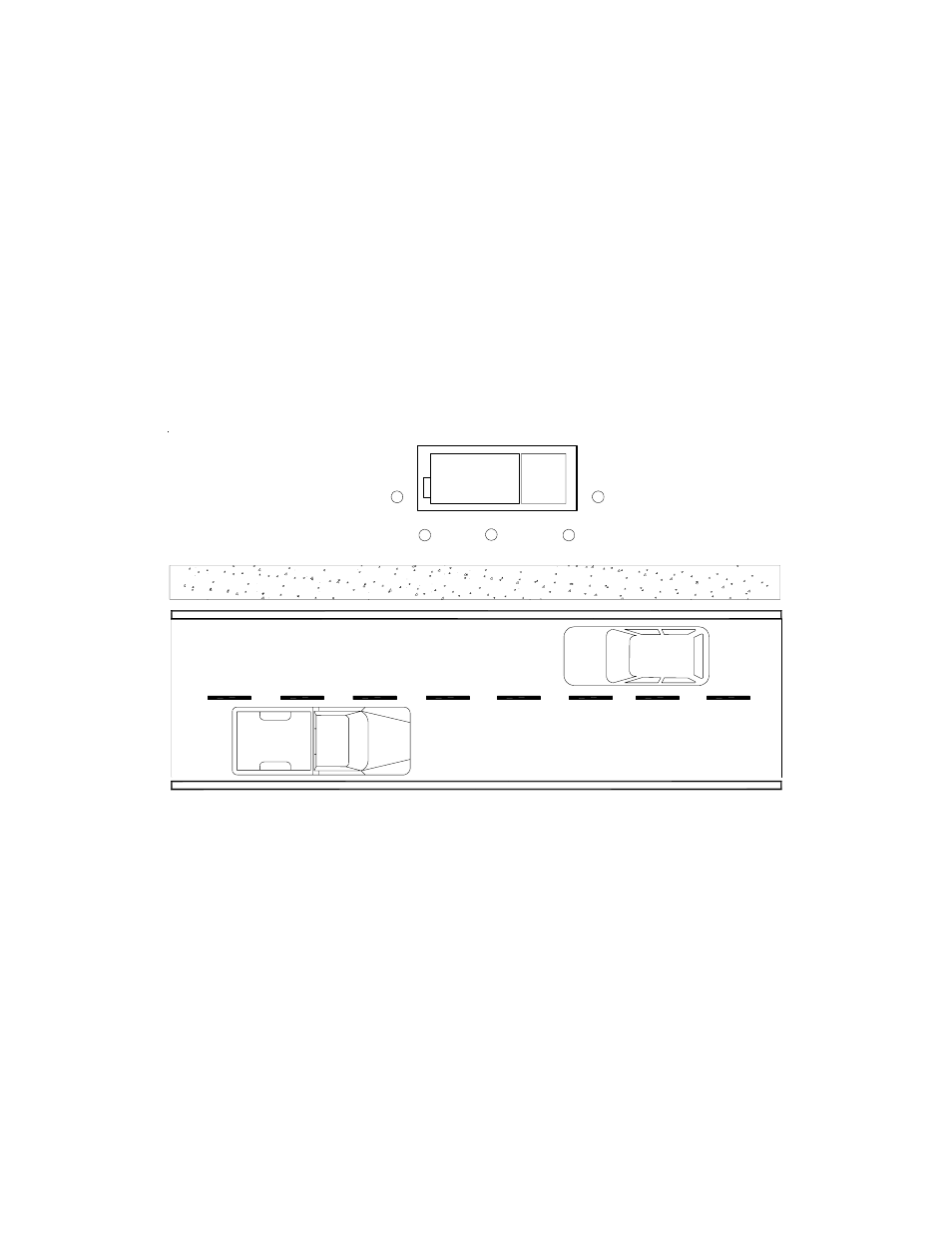

Fig. 3-1 Enclosure protection
3.1 Enclosure Protection
Alpha Technologies, Inc. cannot anticipate all of the ways a vehicle may
potentially threaten an installed system or the specific type of protection that is
appropriate for a particular location. The determination of the threat to the
equipment and the means of protection are the responsibility of the end user of
the equipment and the authority having jurisdiction. The following installation
drawing for Alpha’s Standby Power systems are general recommendations and
not intended to be a specific guideline for protecting the equipment. The numbers
of Bollard posts (or other protection devices) depend upon equipment locations,
site surveys, and traffic patterns.
SIDEWALK
PAD
POSTS
PN-6
Optional
Generator
