SERVICING YOUR GENERATOR

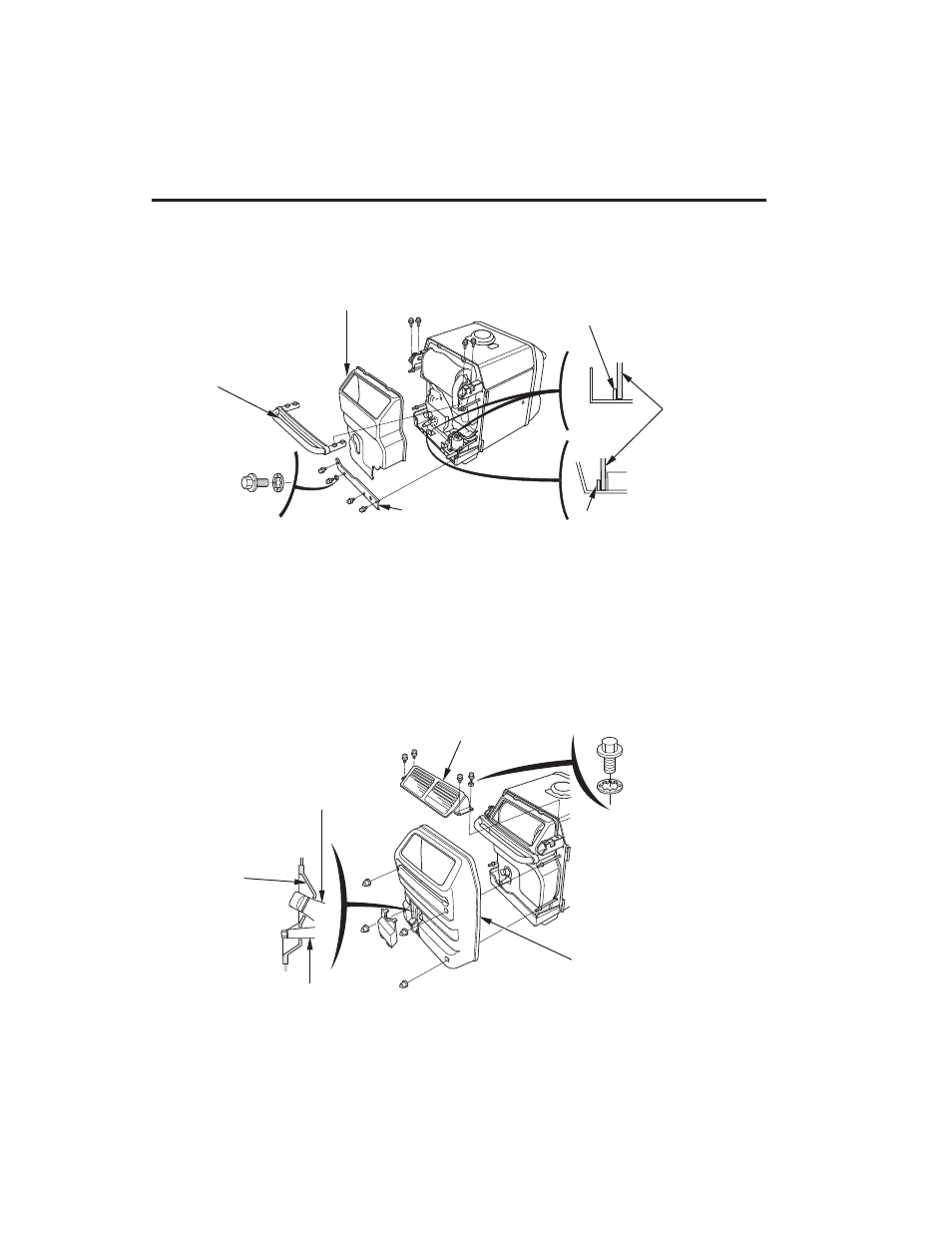

LOWER MUFFLER PROTECTOR
HOOK
LOWER
MUFFLER
PROTECTOR
REAR COVER
OIL FILLER NECK
REAR HANDLE
RUBBER DRIP
GUARD
OIL DRAIN NECK
REAR UNDER PLATE
HOOK
UPPER MUFFLER PROTECTOR
Install the lower muffler protector, the rear under plate, and the rear
handle in the reverse order of removal.
Install the lower muffler protector inside the hook securely.
Install the upper muffler protector and the rear cover in the reverse
order of removal.
When installing the rear cover, carefully fit the rubber drip guard
around the oil filler neck and oil drain neck.
