CONTROL & FEATURES
FEATURES

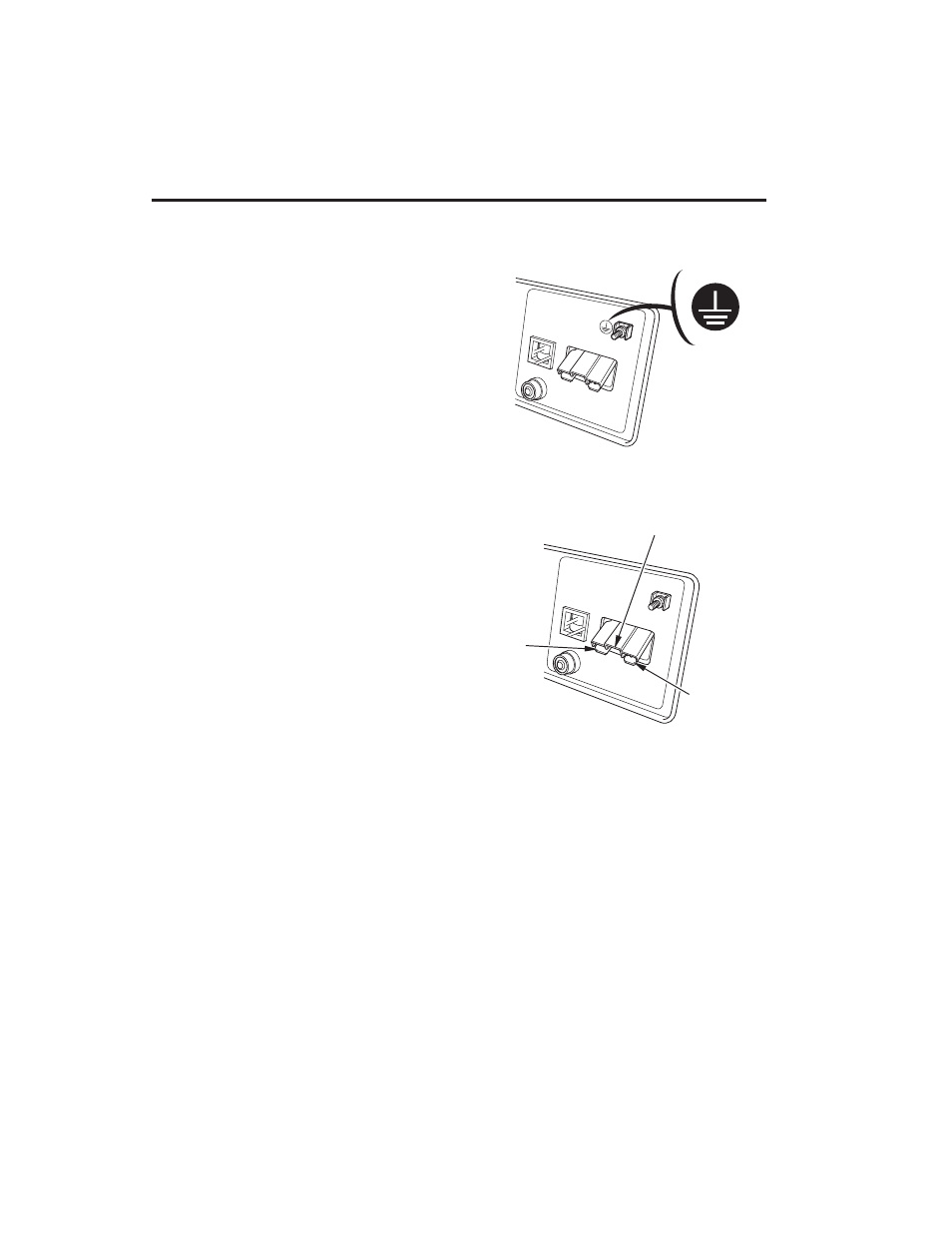

Ground Terminal
DC Output Coupler
Voltmeter
Eco-Throttle System
DC OUTPUT COUPLER
Positive
side
Negative
side
The ground terminal is connected
to the frame of the generator and
the metal non-current-carrying
parts of the generator.
Before using the ground terminal,
consult a qualified electrician,
electrical inspector, or local
agency having jurisdiction for
local codes or ordinances that
apply to the intended use of the
generator.
SYSTEM FLOATING:
The system ground is not
connected to the DC circuit.
The DC output coupler may ONLY
be used for charging UPS 36 V or
48 V battery strings.
When connecting the power cord
to the DC output coupler, always
use the correct coupler and power
cord.
The voltmeter indicates the voltage of the UPS batteries when
connected to the DC output coupler.
The Eco-Throttle system automatically reduces engine speed when
the UPS battery string is fully charged.
When the UPS battery string becomes discharged, the engine returns
to the proper speed to recharge the batteries.
