7.0 Installation
See the DCX3000/DCX2000 Remote Status Monitoring (RSM) Assembly Kit Field Installation
Guide, p/n 746-379-C0.
7.9.14 Configuring and Monitoring the DC Emergency Generator
Set the parameter atiMgmtSysIoSelect 1.3.6.1.4.1.926.1.3.2.8.1.0 to a value of “4” (Generator).

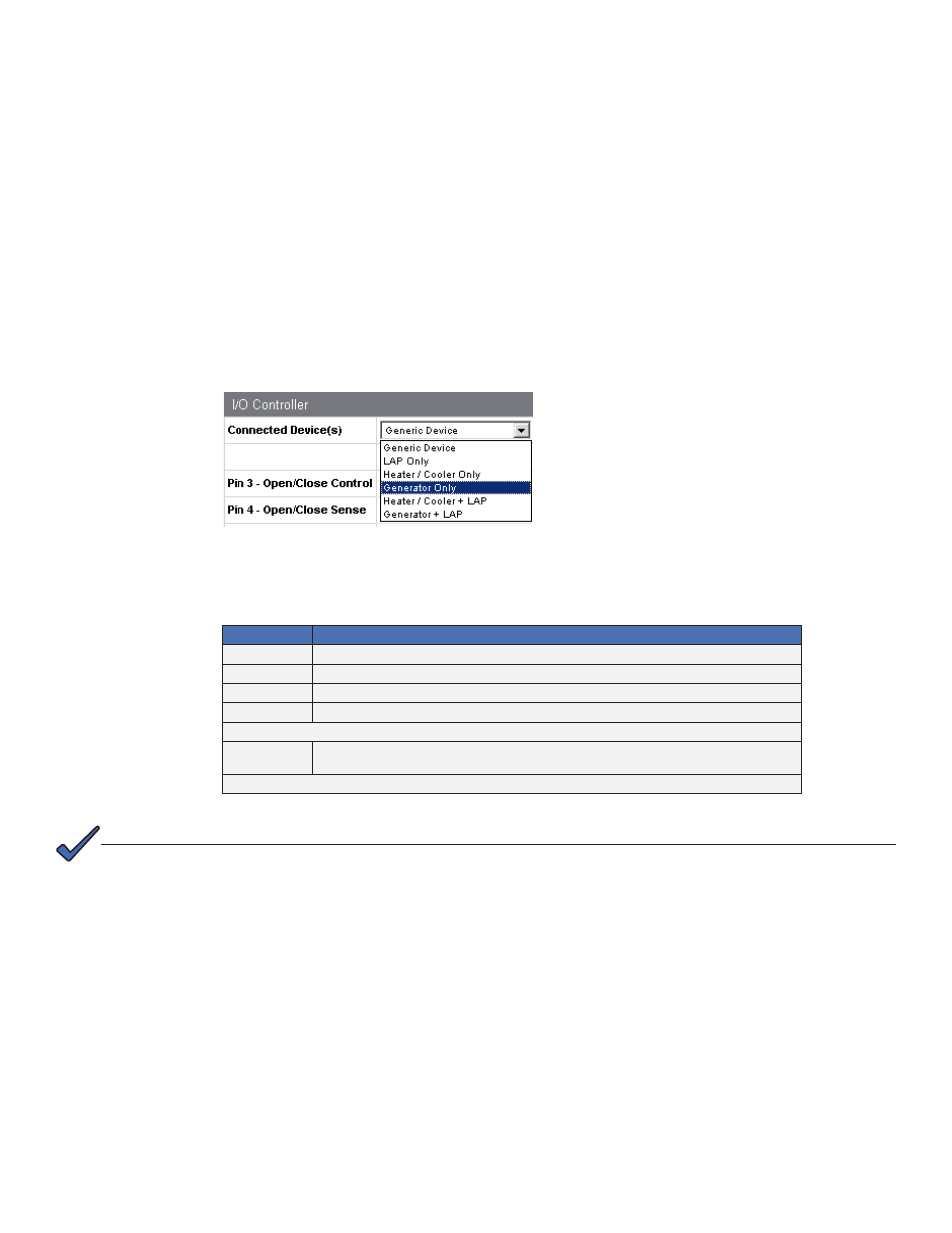

Alternatively, navigate to ‘Advanced Configuration’, ‘I/O – Environment’ and select “Generator
Only” from the pull-down list.
The status of the Generator can be monitored through I/O – Environment web page or via the
SNMP MIB atiMgmtSysIoGenState 1.3.6.1.4.1.926.1.3.2.8.3.0.
atiMgmtSysIoGenState (1.3.6.1.4.1.926.1.3.2.8.3.0)
Value list Description
notInstalled(1) This indicates that atiMgmtSysIoSelect has not been set to a value of 4 (Generator).
genOff(2) The generator has been detected but it is not powering the load.
genRunning(3) The generator is present and it is powering the load.
genNotDetected(4) atiMgmtSysIoSelect has not been set to "4" (Generator) but the Generator is not detected.
atiMgmtSysIoGenTimePowering (1.3.6.1.4.1.926.1.3.2.8.3.0)
Time (Minutes) Increments when atiMgmtSysIoGenState = 3; resets to “0” when atiMgmtSysIoGenState
changes to any other value
Both of the above parameters can be alarmed through the SCTE-HMS propertyIdent MIB
Table 7-9, Generator Monitoring Values
7.9.13 I/O Port: Emergency DC Generator (GEN)
atiMgmtSysIoSelect = 4, 6
The DPM and DSM3x have the capability to report the status of the Alpha DCX Series
Emergency DC Generator through the I/O or“ENV” port on the front of the Communications
Module.
The environmental control and the LA-P-SM control may be implemented simultaneously. This configuration requires interface
cable Alpha part number 875-627-24. Control and monitoring are identical to the devices being used independently.
NOTE:
