Fig. 8-3, 48v, single string, Fig.8-4, 48v, dual string, 2 48v single and dual strings – Alpha Technologies DSM3 for XM2 - Technical Manual User Manual

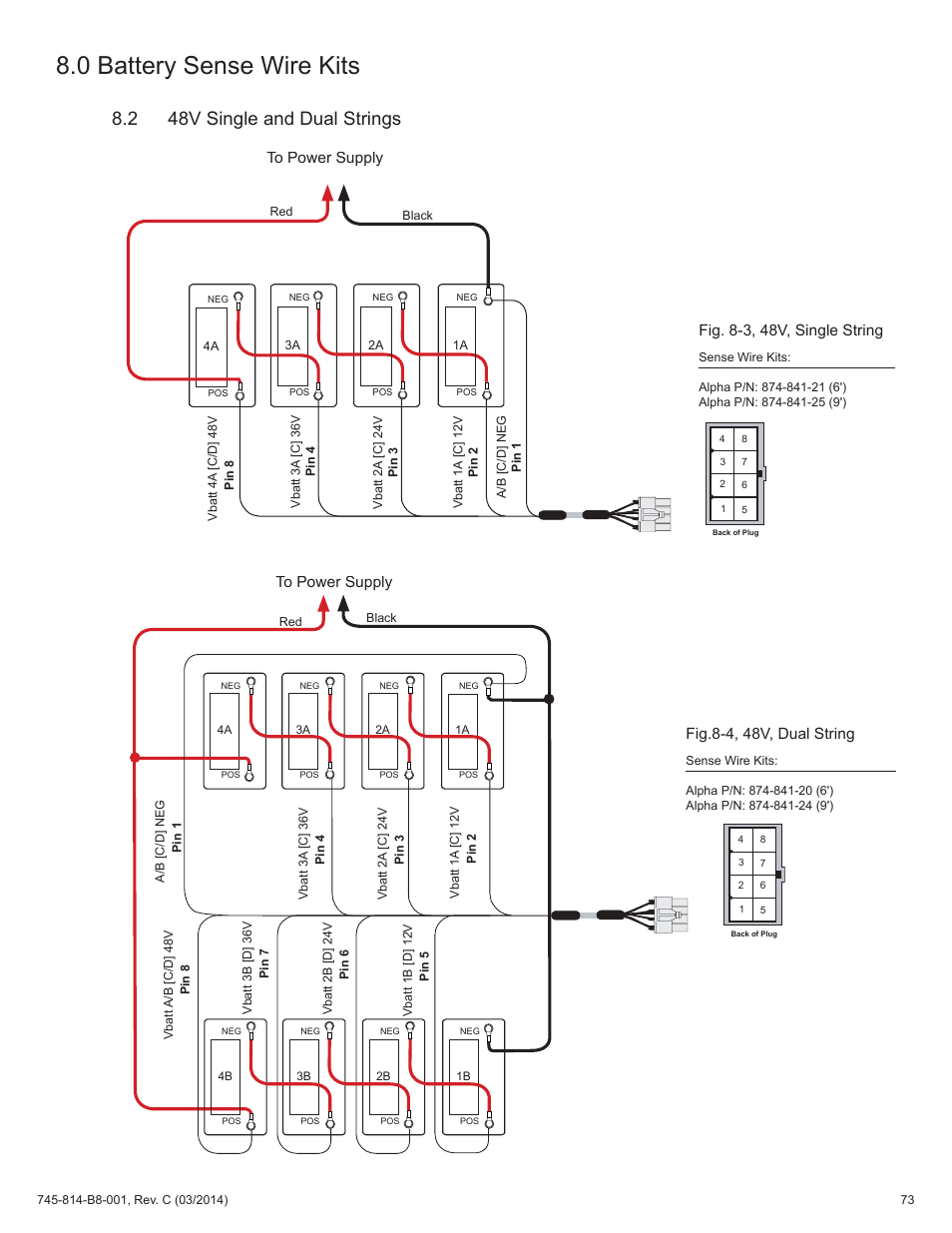

Page 73: Fig. 8-4, 48v, dual string, 0 battery sense wire kits, Fig. 8-3, 48v, single string to power supply

Fig. 8-3, 48v, single string, Fig.8-4, 48v, dual string, 2 48v single and dual strings | Fig. 8-4, 48v, dual string, 0 battery sense wire kits, Fig. 8-3, 48v, single string to power supply | Alpha Technologies DSM3 for XM2 - Technical Manual User Manual | Page 73 / 95 Fig. 8-3, 48v, single string, Fig.8-4, 48v, dual string, 2 48v single and dual strings | Fig. 8-4, 48v, dual string, 0 battery sense wire kits, Fig. 8-3, 48v, single string to power supply | Alpha Technologies DSM3 for XM2 - Technical Manual User Manual | Page 73 / 95
