Page 8: Table 1-1, dsm3 series model specifications, 0 introduction

745-814-B8-001, Rev. C (03/2014)

The AlphaNet DSM3 Series Embedded DOCSIS Communications Module allows monitoring of Alpha power

supplies through existing cable network infrastructure. Advanced networking services provide quick reporting and

access to critical powering information.
The DSM3 Series utilizes Simple Network Management Protocol (SNMP) and standard Management Information

Bases (MIBs) to provide network status monitoring and diagnostics. A Web interface enables authorized

personnel direct access to advanced diagnostics using a common Web browser. No custom software is required.

This manual addresses the three models of the DSM3 Series. The table below compares the differences between

the Communications Module models.

Primary Features:

• 10/100 Mbps auto-negotiating standard Ethernet interface
• Supports SNMPv1, v2c
• Extensive power supply diagnostic MIBs
• Embedded Web server for direct diagnostics
• Environmentally hardened DOCSIS cable modem and Communications Module
• Local Ethernet port provides technician on-site access to extensive power supply diagnostics*
• Angled RF port reduces cable bend radius
• Diagnostic LEDs
• North American or Euro DOCSIS available (Euro models in parentheses)

* Ethernet port also available for connecting external CPE devices

Model

DSM3x (E)

DSM3 (E)

DPM (E)

Part Number

746-097-20 (746-097-23)

746-097-21 (746-097-24)

746-097-22 (746-097-25)

Supported Power Supplies

XM2, XM2-HP, XM2-VP, GMX, VMX

XM2-300HP

Capacity

5 power supplies (plus generator)

1 power supply

1 & 2 Battery Strings

Yes

1 battery (2 for added runtime)

3 & 4 Battery Strings

Yes

Tamper Switch

Yes

External I/O Monitoring and Control

Yes

COM Port (AlphaBus)

Yes

Ethernet Port

Yes

2 x 9 Interconnection Header

Alpha p/n 540-286-19

Alpha p/n 540-581-19

1.0 Introduction

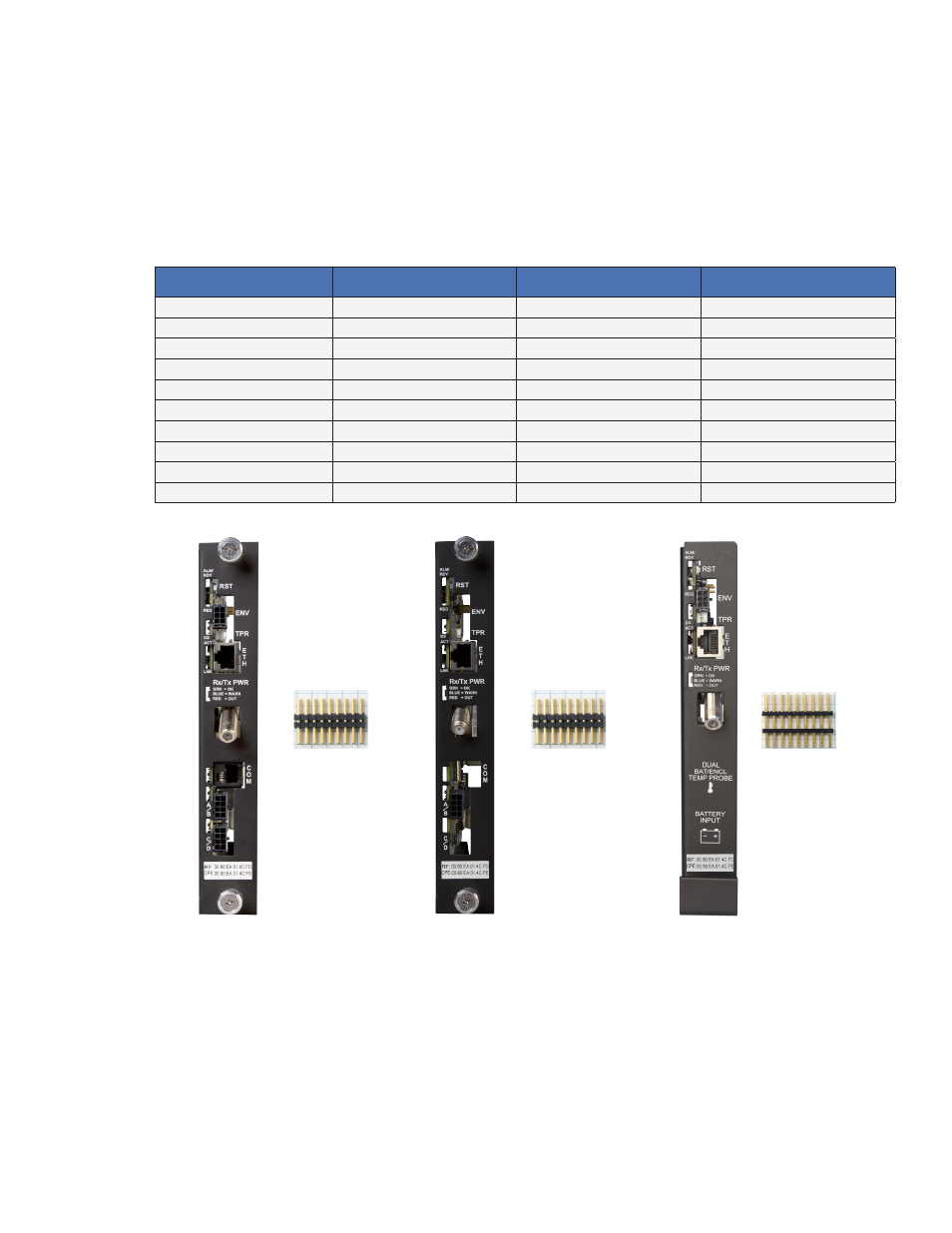

Fig. 1-1, AlphaNet DSM3x

Table 1-1, DSM3 Series Model Specifications

Fig. 1-2, AlphaNet DSM3

Fig. 1-3, AlphaNet DPM

DSM3x 2 x 9 header

(Alpha p/n 540-286-19)

DSM3 2 x 9 header

(Alpha p/n 540-286-19)

DPM 2 x 9 header

(Alpha p/n 540-581-19)
