Argus Technologies Ltd. 030-827-C0 Rev A WC
Printed in Canada. © 2008 Argus Technologies Ltd. ARGUS and CORDEX are trademarks of Argus Technologies Ltd. All Rights Reserved. Page 15 of 25
6.9 Network Connection and Remote Communications via CXC
The Cordex 48-1kW system can be set up, monitored and tested via Ethernet 10/100 Base-T or with RS-232
serial data connection. The communication protocol supports a web interface.
NOTE: Pinouts are shown in drawings 030-706-08 and 030-707-08.
Some standard scenarios are described below:
6.9.1 Ethernet Port for Network Connection (Standard Network Cable)
The Ethernet port is designed for CXC connection to a user supplied network (TCP/IP secured by user) via a rear
panel RJ-45 jack. Connect to the Cordex shelf using a standard network cable.
6.9.2 Ethernet Port for Local Connection (Crossover Cable)
Local access (e.g. laptop computer) is also possible from the Ethernet port connection using a standard network
crossover cable.
6.9.3 RS-232 Serial (Craft) Port for Local Connection
Local access to the CXC is possible through the front panel RS-232 serial port using a null modem cable. See
Figure 8.

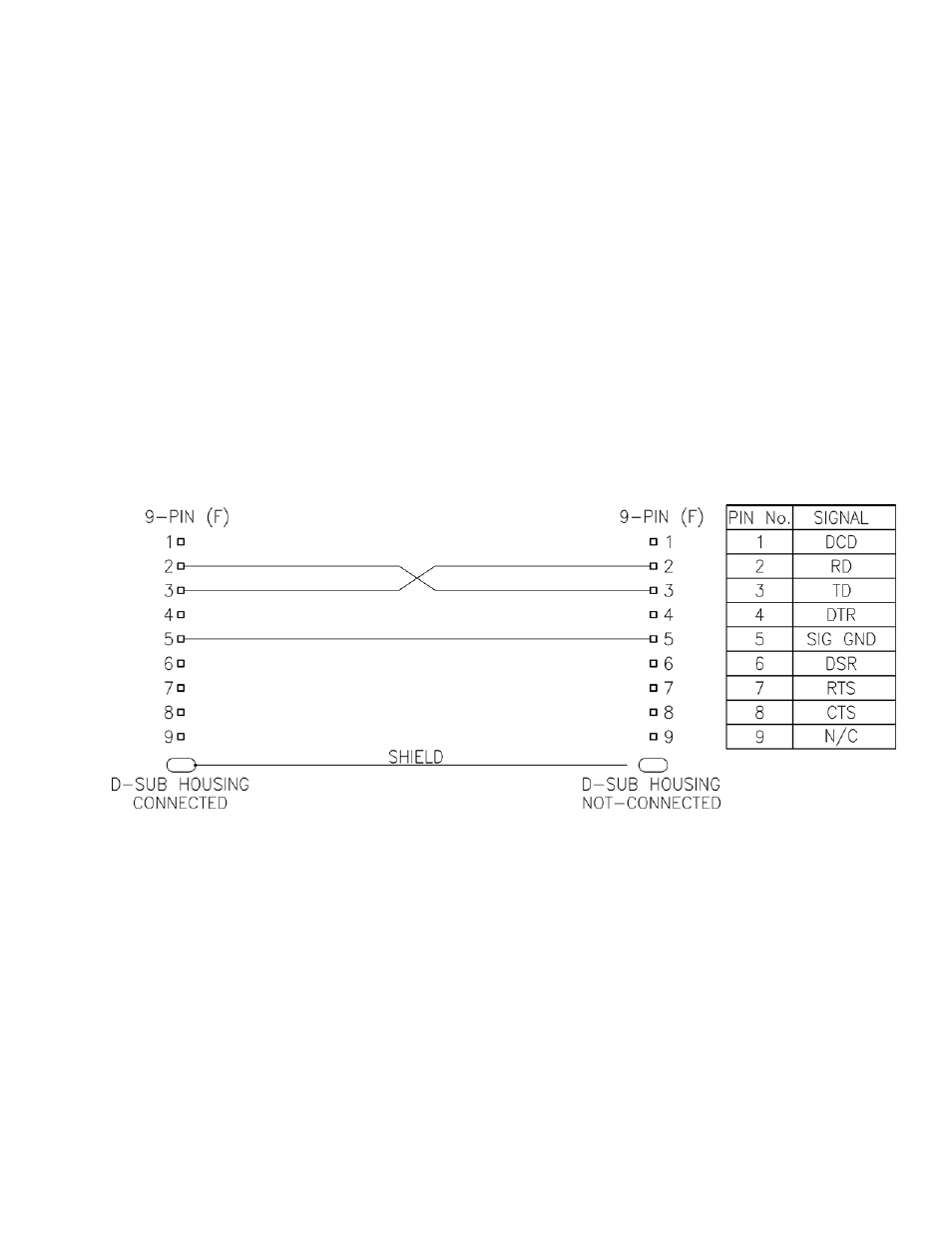

Figure 8–NULL modem pinouts
