Page 32
9400002-J0 Rev A
30
8. Adding an Expansion BDFB
This section describes the installation of an additional BDFB to an existing rack-mounted BDFB system.
The installation kit (#0380034) that ships with the expansion BDFB includes the following parts:
x
Copper bus bars connectors
x
Filler plates
x
Miscellaneous hardware
Preparation

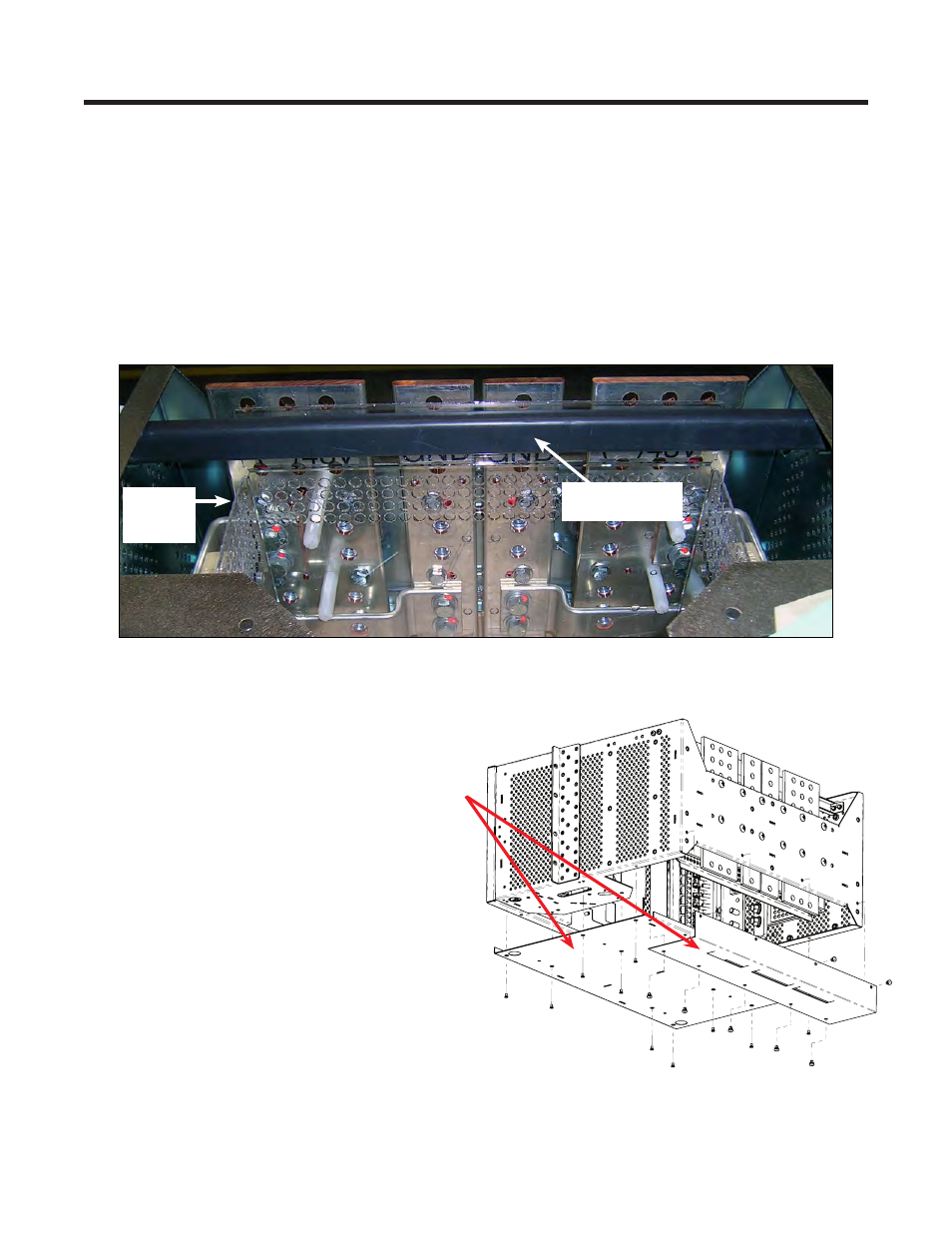

Figure 18 — Cable tie bar and insulation shield
STEP 1
• Remove the cable tie bar and insulation shield in the add-on BDFB.
• Set aside for later re-installation in Step 5.
STEP 2
• Remove the bottom covers from the existing BDFB.
• Reinstall them on the bottom of the add-on BDFB.
Remove
insulation
shield
Remove cable
tie bar
Figure 19 — BDFB bottom covers
