Page 19

17
0170009-J0 Rev B

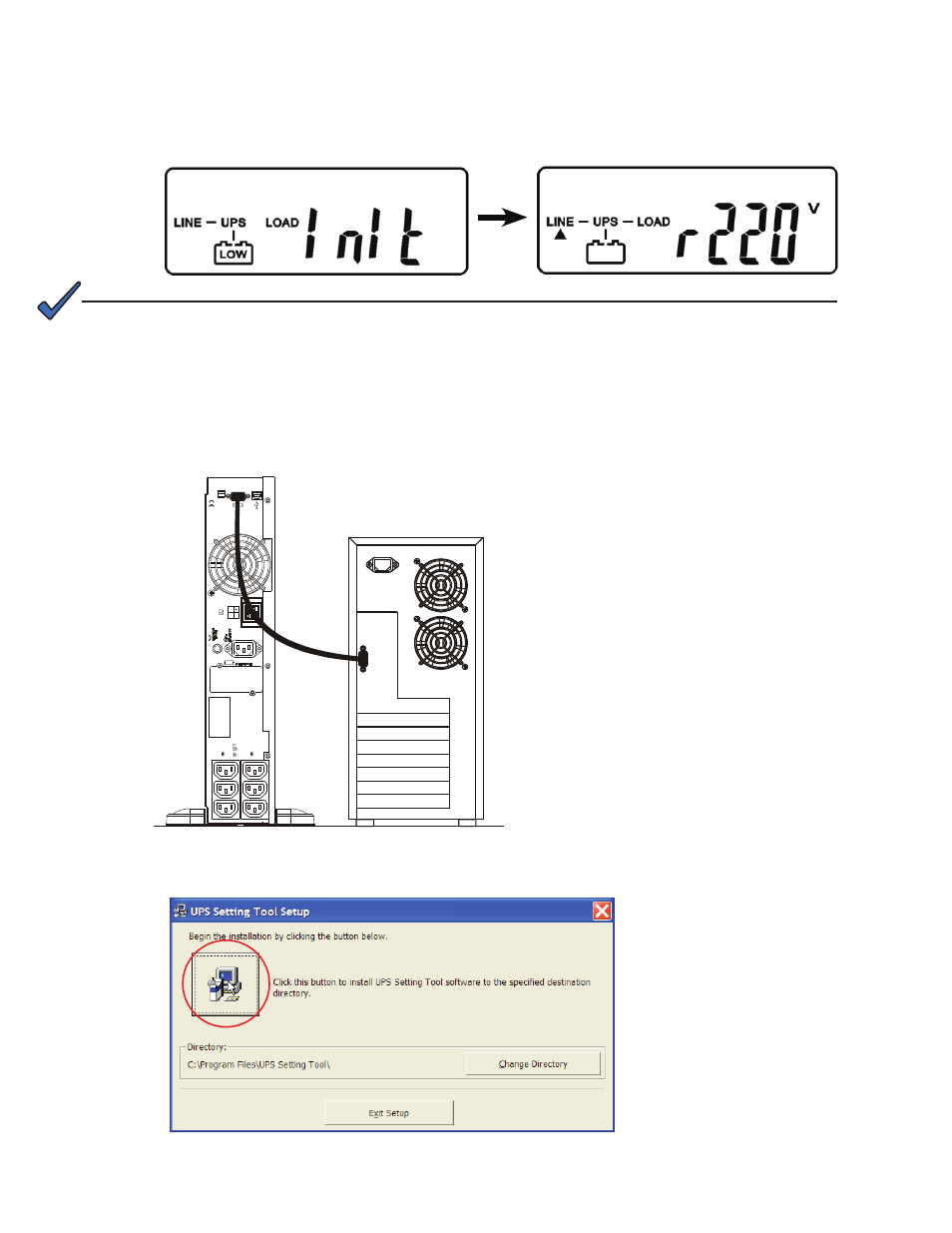

4.2 Connecting the Computer Interface Port
This section is intended for use of the UPS Setting Tool over a RS-232 connection.
Use the supplied RS-232 cable to connect the interface port on the rear of the UPS to the computer
interface port.
E
PO
G
D
C
36
V
A
C
O
U
TP
U
T
2
1
6. At the UPS, press and hold the ON switch for approximately 3 seconds until the buzzer sounds
twice.
7. The Initialize screen appears and the UPS automatically runs a self-test sequence.
8. Start-up of the UPS is complete when the Input Voltage screen appears.
4.3 Operating Modes and Voltage System Configuration
1. Load the supplied UPS Setting Tool CD and install the software.
At this point the UPS batteries are charging. Plug the UPS into the wall receptacle to
charge the UPS for at least 4 hours after the initial installation.
NOTE:
