4. TV8720 connection diagram (continued)
11
sender module 12VDC output
front side

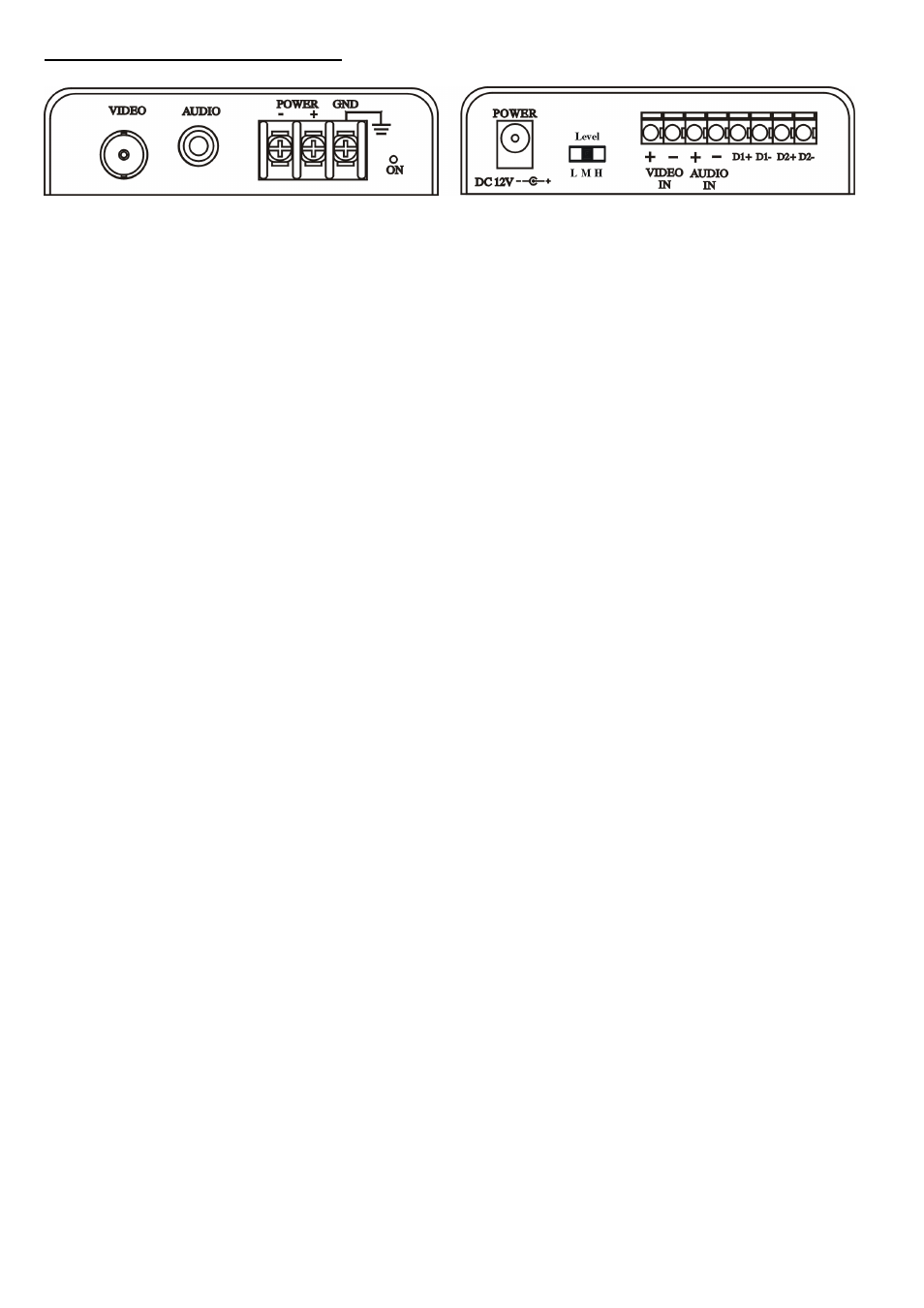

Connections on transmitter module – front:
Video – composite (FBAS) video input
Audio – audio input
Power – 12VDC output (e.g. for your camera)
GND – chassis earthing
12VDC
Eingang
Audio IN Video IN
sender module Level Video/Audio Data output
rear side Colour Output
saturation
Connections on transmitter module – rear:
Video IN – clamp for twisted-pair transmission
Audio IN – clamp for twisted-pair transmission
Power – 12VDC input for transformer
D1+/D1- – input for alarm contact (NO)
D2+/D2- – output for data line (RS485)
LMH – Level for colour saturation
