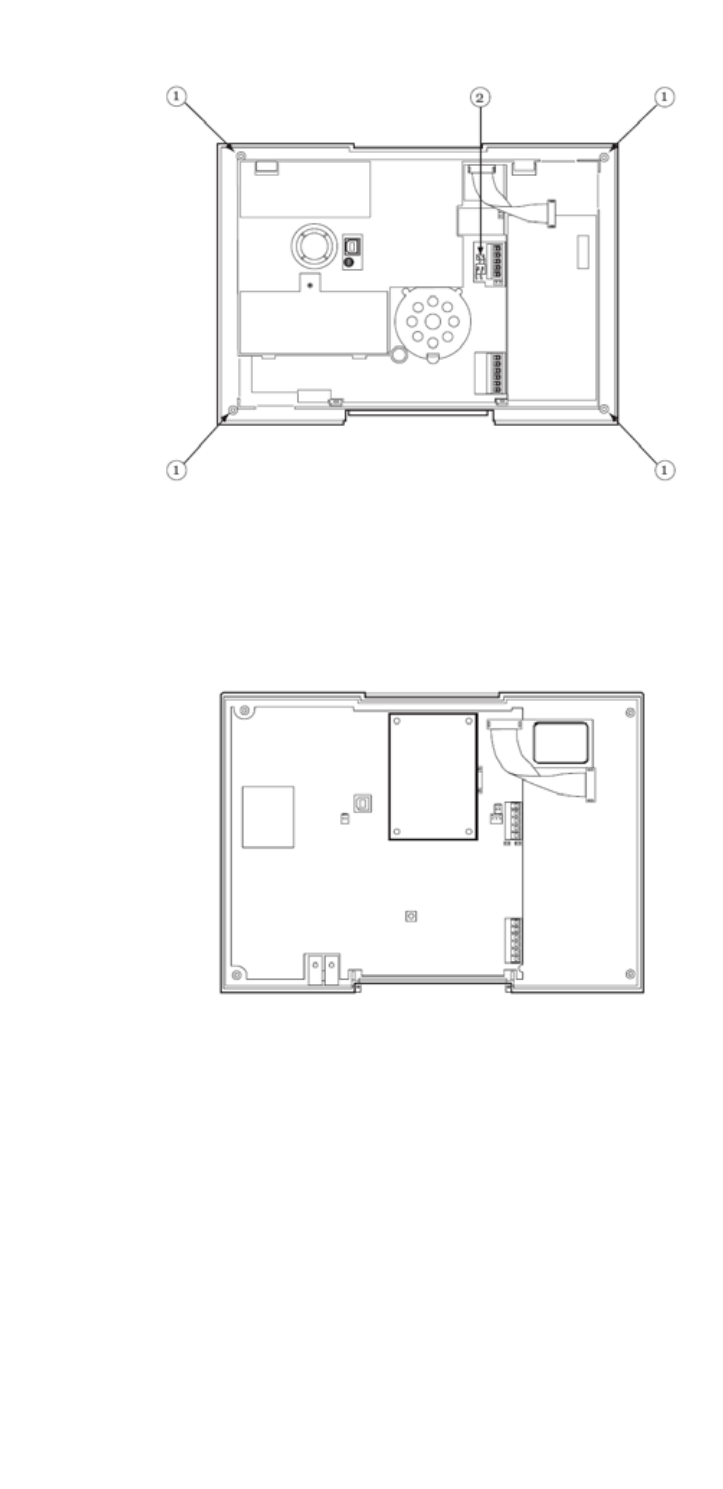

5. Prima di rimuovere completamente il retro
dell’alloggiamento, sollevarlo leggermente
e staccare il connettore sirena.
6. Posizionare quindi il modulo IP sul
collegamento a spina della scheda
principale e premere.
7. Collegare nuovamente la sirena e
rispettare la corretta sede del microfono.
Rimontare il retro dell'alloggiamento
nuovamente assieme alla copertura
forntale.
8. Inserire nuovamente il connettore per
l'altoparlante e il connettore per il vano
batterie (2). Fissare la parete posteriore
con le quattro viti dell'alloggiamento (1).
9. Introdurre il cavo Ethernet attraverso un
passacavi adatto della piastra di
