ABUS FU8030 Secvest 2WAY Ethernet Module User Manual
Page 12
12

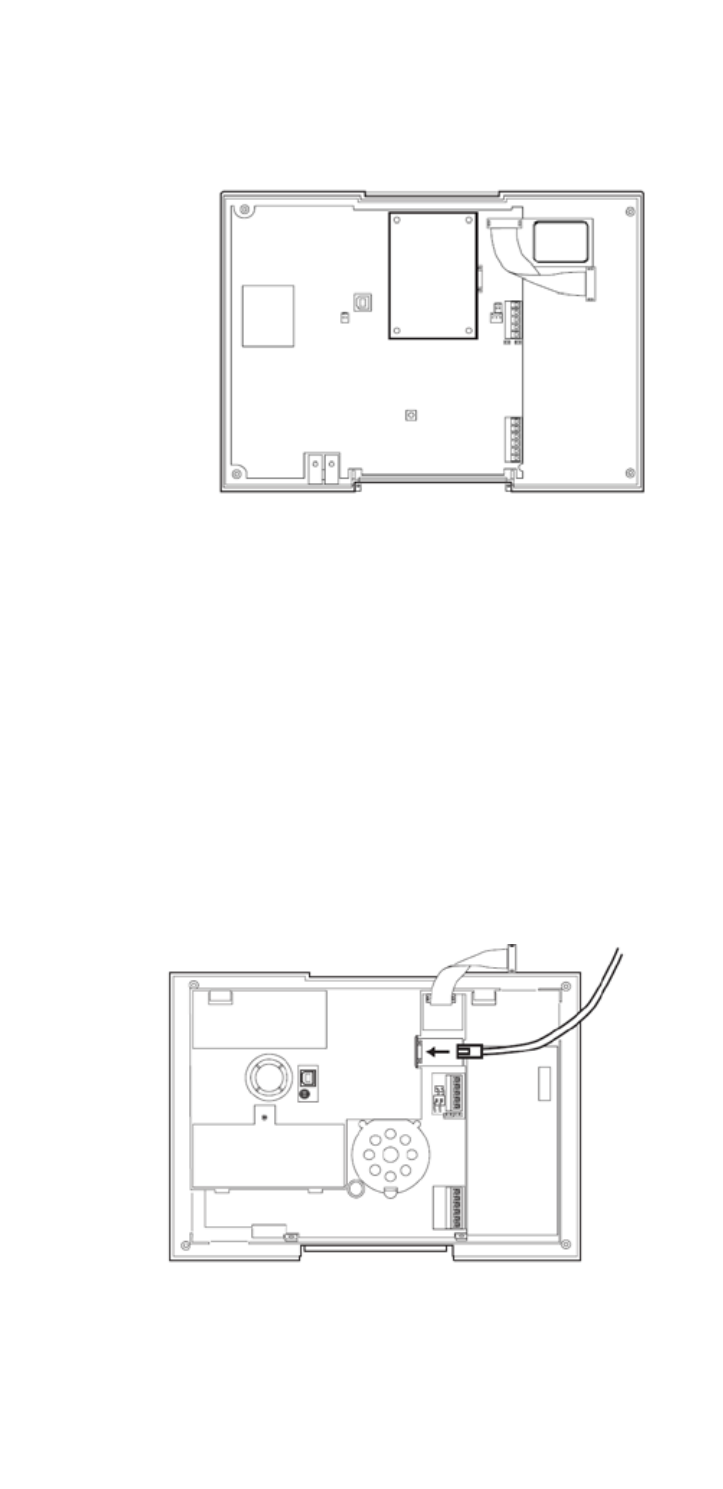

6. Now place the IP module in the plug
connections of the mainboard and insert
firmly.
7. Reconnect the sirens and ensure that the
microphone is seated correctly. Replace
the rear housing panel together with the
front cover.
8. Reinsert the plug for the speaker and the
plug for the battery compartment (2).
Fasten the rear panel with the four
housing screws (1).
9. Guide the Ethernet cable through a
suitable cable opening in the wall
mounting plate and insert the RJ45 plug
in the socket of the installed module.
10. Hook the housing onto the wall mounting
plate and reconnect the ribbon cable.
Ensure that no cables within the housing
